Schneider Electric Single Contact Block with Body Fixing Collar, Metal Screw Clamp Terminal, 1 Normally Closed (NC) Contact
In stock
SKU
ZB4BZ102
Special Price EGP 309 Regular Price EGP 532
Schneider Electric Single Contact Block with Body Fixing Collar, Metal Screw Clamp Terminal, 1 Normally Closed (NC) Contact is available to buy in increments of 1
Quick Overview
Range: Harmony XB4
Product type: Complete body/contact assembly
Contact operation: Slow-break
Head type: Standard
You May Also Like:
Schneider Electric Selector Switch, 2-Position, Spring Return, 22mm MountingSpecial Price EGP 617 Regular Price EGP 1,065
Schneider Electric Push Button, Momentary, 22mm MountingSpecial Price EGP 485 Regular Price EGP 836
Schneider Electric 40mm Emergency Stop Switch with Trigger Latching, Turn-to-Release, and 1 Normally Closed ContactSpecial Price EGP 1,189 Regular Price EGP 2,050
Schneider Electric Pilot light, Metal, Orange, Ø22, plain lens with integral LED,24 V AC/DSpecial Price EGP 485 Regular Price EGP 836
Schneider Electric Single Contact Block, Silver Alloy, Screw Clamp Terminal, 1 Normally Closed (NC)Special Price EGP 212 Regular Price EGP 366
Schneider Electric Key Switch Selector, Metal, Black, 22 mm, 3 Positions Stay-Put, 2 Normally Open ContactsSpecial Price EGP 1,821 Regular Price EGP 3,140
Schneider Electric Push Button, Momentary, Illuminated, 22mm MountingSpecial Price EGP 485 Regular Price EGP 836
Schneider Electric Push Button, Latching, 22mm MountingSpecial Price EGP 453 Regular Price EGP 781
Schneider Electric Push Button, Mushroom Head, 22mm MountingSpecial Price EGP 453 Regular Price EGP 781
Schneider Electric Push Button, Twist-to-Release, 22mm MountingSpecial Price EGP 453 Regular Price EGP 781
Schneider Electric Selector Switch, 2-Position, Momentary, Spring Return, 22mm MountingSpecial Price EGP 617 Regular Price EGP 1,065
Schneider Electric Illuminated Push Button, Harmony XB4, Metal, Flush, Green, 22mm, Spring Return, LT 230-240V, 1 NO + 1 NCSpecial Price EGP 1,510 Regular Price EGP 2,604
Schneider Electric Illuminated Push Button, Harmony XB4, Metal, Flush, Orange, 22mm, Spring Return, LT 250V, 1 Normally Open + 1 Normally ClosedSpecial Price EGP 906 Regular Price EGP 1,561
Schneider Electric Illuminated Push Button, Metal, Flush, Orange, 22mm Diameter, Spring Return, 230-240V AC, 1 Normally Open + 1 Normally Closed.Special Price EGP 1,510 Regular Price EGP 2,604
Schneider Electric Illuminated Selector Switch, Metal, Green, Ø22mm, 2-Position, Stay-Put, 24V AC/DC, 1 NO + 1 NCSpecial Price EGP 1,559 Regular Price EGP 2,688
Schneider Electric Selector switch, metal, black, 22mm Mounting, 3 positions, spring spring return, 2 NOSpecial Price EGP 1,123 Regular Price EGP 1,936
Schneider Electric Selector switch, metal, black, 22mm Mounting, 2 positions, stay put, 1 NOSpecial Price EGP 672 Regular Price EGP 1,159
Schneider Electric Harmony XB4 Metal Flush Push Button, Yellow, 22mm, Spring Return, Unmarked, 1 Normally Open ContactSpecial Price EGP 449 Regular Price EGP 773
Schneider Electric Illuminated Push Button, Metal Flush, Green, Ø22, Spring Return, 1 NO + 1 NC, 24V AC/DCSpecial Price EGP 908 Regular Price EGP 1,565
Schneider Electric Push Button, Flush Head, Maintained, 22mm MountingSpecial Price EGP 449 Regular Price EGP 773

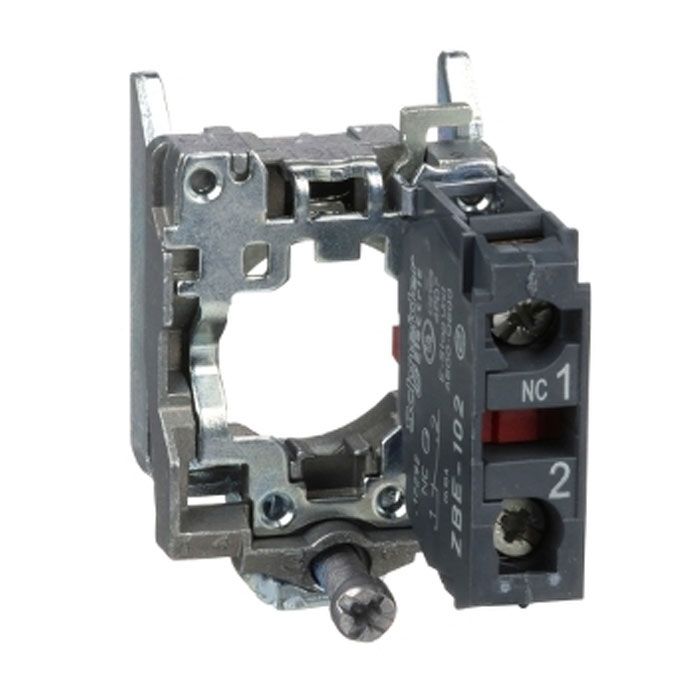

This Harmony XB4, single contact block is pre-assembled on a body/collar fixing unit. This body fixing collar is pre-mounted with a contact block. Simply adding a head to this assembly will provide you with a complete ready-to-use push button. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.
Specifications:
| Main | |
| Range of product | Harmony XB4 |
| Product or component type | Complete body/contact assembly |
| Device short name | ZB4 |
| Fixing collar material | Zamak |
| Sale per indivisible quantity | 1 |
| Head type | Standard |
| Contacts type and composition | 1 NC |
| Contact operation | Slow-break |
| Contact block type | Single |
| Device composition | Body |
| Fixing collar | |
| Connections - terminals | Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to IEC 60947-1 |
| Screw clamp terminals, >= 1 x 0.22 mm² without cable end conforming to IEC 60947-1 | |
| Complementary | |
| CAD overall width | 30 mm |
| CAD overall height | 47 mm |
| CAD overall depth | 37 mm |
| Terminals description ISO n°1 | (11-12)NC |
| Net weight | 0.053 kg |
| Contacts usage | Standard contacts |
| Positive opening | With conforming to IEC 60947-5-1 appendix K |
| Operating travel | 1.5 mm (NC changing electrical state) |
| 4.3 mm (total travel) | |
| Operating force | 2 N NC changing electrical state |
| Mechanical durability | 5000000 cycles |
| Tightening torque | 0.8…1.2 N.m conforming to IEC 60947-1 |
| Shape of screw head | Cross compatible with Philips no 1 screwdriver |
| Cross compatible with pozidriv No 1 screwdriver | |
| Slotted compatible with flat Ø 4 mm screwdriver | |
| Slotted compatible with flat Ø 5.5 mm screwdriver | |
| Contacts material | Silver alloy (Ag/Ni) |
| Short-circuit protection | 10 A cartridge fuse type gG conforming to IEC 60947-5-1 |
| [Ith] conventional free air thermal current | 10 A conforming to IEC 60947-5-1 |
| [Ui] rated insulation voltage | 600 V (pollution degree 3) conforming to IEC 60947-1 |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to IEC 60947-1 |
| [Ie] rated operational current | 3 A at 240 V, AC-15, A600 conforming to IEC 60947-5-1 |
| 6 A at 120 V, AC-15, A600 conforming to IEC 60947-5-1 | |
| 0.1 A at 600 V, DC-13, Q600 conforming to IEC 60947-5-1 | |
| 0.27 A at 250 V, DC-13, Q600 conforming to IEC 60947-5-1 | |
| 0.55 A at 125 V, DC-13, Q600 conforming to IEC 60947-5-1 | |
| 1.2 A at 600 V, AC-15, A600 conforming to IEC 60947-5-1 | |
| Electrical durability | 10000000 cycles, AC-15, 2 A at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C |
| 10000000 cycles, AC-15, 3 A at 120 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C | |
| 10000000 cycles, AC-15, 4 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C | |
| 10000000 cycles, DC-13, 0.2 A at 110 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C | |
| 10000000 cycles, DC-13, 0.5 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C | |
| Electrical reliability | Λ < 10exp(-6) at 5 V, 1 mA in clean environment conforming to IEC 60947-5-4 |
| Λ < 10exp(-8) at 17 V, 5 mA in clean environment conforming to IEC 60947-5-4 | |
| Device presentation | Basic sub-assemblies |
| Environment | |
| Protective treatment | TH |
| Ambient air temperature for storage | -40…70 °C |
| Ambient air temperature for operation | -40…70 °C |
| IP degree of protection | IP20 conforming to IEC 60529 |
| Standards | CSA C22.2 No 14 |
| IEC 60947-5-5 | |
| IEC 60947-5-1 | |
| UL 508 | |
| JIS C8201-5-1 | |
| IEC 60947-1 | |
| IEC 60947-5-4 | |
| JIS C8201-1 | |
| Product certifications | BV |
| UL | |
| CSA | |
| DNV | |
| LROS (Lloyds register of shipping) | |
| Vibration resistance | 5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| Weight | 0.053000 |
|---|---|
| Brand | Schneider Electric |
| Model | ZB4BZ102 |
| Depth [cm] | 3.7 |
| Width [cm] | 3.0 |
| Height [cm] | 4.7 |
| Range | Harmony XB4 |
| Family | IDSIG |
| Type | Complete Control Station |
| IP Degree of Protection | IP20 |
