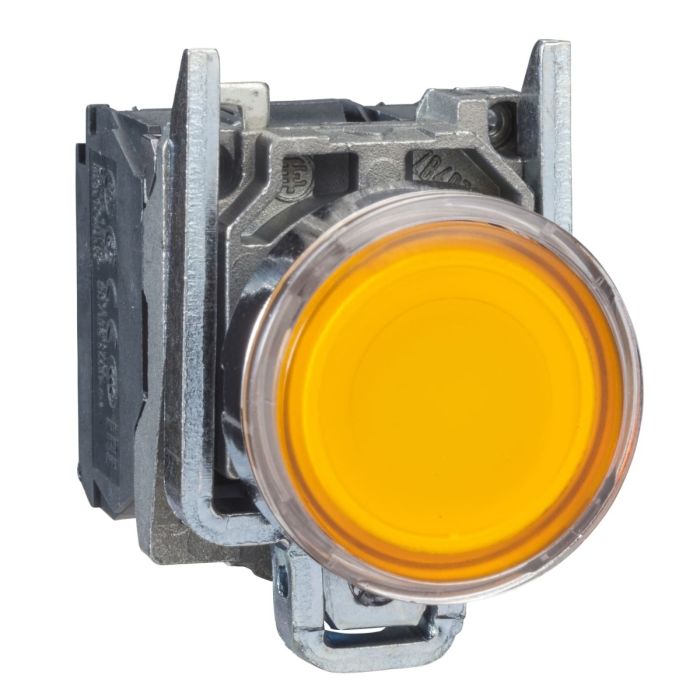

Schneider Electric Illuminated Push Button, Harmony XB4, Metal, Flush, Orange, 22mm, Spring Return, LT 250V, 1 Normally Open + 1 Normally Closed
In stock
SKU
XB4BW3565
Special Price EGP 906 Regular Price EGP 1,561
Schneider Electric Illuminated Push Button, Harmony XB4, Metal, Flush, Orange, 22mm, Spring Return, LT 250V, 1 Normally Open + 1 Normally Closed is available to buy in increments of 1
Quick Overview
Range: Harmony XB4
Product type: Illuminated selector switch
Type of operator: Stay put
Shape of signaling unit head: Round
You May Also Like:
Schneider Electric Selector Switch, 2-Position, Spring Return, 22mm MountingSpecial Price EGP 617 Regular Price EGP 1,065
Schneider Electric Push Button, Momentary, 22mm MountingSpecial Price EGP 485 Regular Price EGP 836
Schneider Electric 40mm Emergency Stop Switch with Trigger Latching, Turn-to-Release, and 1 Normally Closed ContactSpecial Price EGP 1,189 Regular Price EGP 2,050
Schneider Electric Pilot light, Metal, Orange, Ø22, plain lens with integral LED,24 V AC/DSpecial Price EGP 485 Regular Price EGP 836
Schneider Electric Single Contact Block, Silver Alloy, Screw Clamp Terminal, 1 Normally Closed (NC)Special Price EGP 212 Regular Price EGP 366
Schneider Electric Key Switch Selector, Metal, Black, 22 mm, 3 Positions Stay-Put, 2 Normally Open ContactsSpecial Price EGP 1,821 Regular Price EGP 3,140
Schneider Electric Push Button, Momentary, Illuminated, 22mm MountingSpecial Price EGP 485 Regular Price EGP 836
Schneider Electric Push Button, Latching, 22mm MountingSpecial Price EGP 453 Regular Price EGP 781
Schneider Electric Push Button, Mushroom Head, 22mm MountingSpecial Price EGP 453 Regular Price EGP 781
Schneider Electric Push Button, Twist-to-Release, 22mm MountingSpecial Price EGP 453 Regular Price EGP 781
Schneider Electric Selector Switch, 2-Position, Momentary, Spring Return, 22mm MountingSpecial Price EGP 617 Regular Price EGP 1,065
Schneider Electric Illuminated Push Button, Harmony XB4, Metal, Flush, Green, 22mm, Spring Return, LT 230-240V, 1 NO + 1 NCSpecial Price EGP 1,510 Regular Price EGP 2,604
Schneider Electric Illuminated Push Button, Metal, Flush, Orange, 22mm Diameter, Spring Return, 230-240V AC, 1 Normally Open + 1 Normally Closed.Special Price EGP 1,510 Regular Price EGP 2,604
Schneider Electric Illuminated Selector Switch, Metal, Green, Ø22mm, 2-Position, Stay-Put, 24V AC/DC, 1 NO + 1 NCSpecial Price EGP 1,559 Regular Price EGP 2,688
Schneider Electric Selector switch, metal, black, 22mm Mounting, 3 positions, spring spring return, 2 NOSpecial Price EGP 1,123 Regular Price EGP 1,936
Schneider Electric Pilot light, metal, orange, 22mm Mounting, plain lens with integral LED, 230...240 VACSpecial Price EGP 617 Regular Price EGP 1,065
Schneider Electric Selector switch, metal, black, 22mm Mounting, 2 positions, stay put, 1 NOSpecial Price EGP 672 Regular Price EGP 1,159
Schneider Electric Illuminated Push Button, Metal Flush, Green, Ø22, Spring Return, 1 NO + 1 NC, 24V AC/DCSpecial Price EGP 908 Regular Price EGP 1,565
Schneider Electric Pilot Light, Metal, White, Ø22, Plain Lens with Integral LED, 230-240V ACSpecial Price EGP 617 Regular Price EGP 1,065
Schneider Electric Push Button, Flush Head, Maintained, 22mm MountingSpecial Price EGP 449 Regular Price EGP 773
This Harmony XB4 plain lens illuminated modular orange push button operates with a spring return / impulse mechanism, is supplied with 250V AC/DC. It has a metal bezel. This illuminated push button provides an ergonomic and visual interface for controlling your machines. It is easily installed into a standard 22mm diameter cut-outs and connected to control circuits with classic screw-clamp connections. It is clearly distinguishable visually at a distance thanks to its illuminated head and clear color. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66/IP67/IP69/IP69K, making it ideal for operation in harsh environments.
Specifications:
| Main | |
| Range of product | Harmony XB4 |
| Product or component type | Illuminated push-button |
| device short name | XB4 |
| bezel material | Chromium plated metal |
| Fixing collar material | Zamak |
| Mounting diameter | 22 mm |
| Sale per indivisible quantity | 1 |
| Head type | Standard |
| Shape of signaling unit head | Round |
| Type of operator | Spring return |
| Operator profile | Orange flush |
| Operator additional information | With plain lens |
| Contacts type and composition | 1 NO + 1 NC |
| contact operation | Slow-break |
| Connections - terminals | Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to IEC 60947-1 |
| Screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end conforming to IEC 60947-1 | |
| Light source | Bulb not included |
| Bulb base | BA 9s |
| Light block supply | Direct <2.4 W |
| [Us] rated supply voltage | <= 250 V |
| Complementary | |
| height | 47 mm |
| Width | 30 mm |
| Depth | 101 mm |
| Terminals description ISO n°1 | (21-22)NC |
| (13-14)NO | |
| Net weight | 0.097 kg |
| Resistance to high pressure washer | 7000000 Pa at 55 °C, distance : 0.1 m |
| contacts usage | Standard contacts |
| Positive opening | With conforming to IEC 60947-5-1 appendix K |
| Operating travel | 1.5 mm (NC changing electrical state) |
| 2.6 mm (NO changing electrical state) | |
| 4.3 mm (total travel) | |
| Operating force | 3.5 N NC changing electrical state |
| 3.8 N | |
| Mechanical durability | 10000000 cycles |
| Tightening torque | 0.8…1.2 N.m conforming to IEC 60947-1 |
| Shape of screw head | Cross compatible with Philips no 1 screwdriver |
| Cross compatible with pozidriv No 1 screwdriver | |
| Slotted compatible with flat Ø 4 mm screwdriver | |
| Slotted compatible with flat Ø 5.5 mm screwdriver | |
| Contacts material | Silver alloy (Ag/Ni) |
| Short-circuit protection | 10 A cartridge fuse type gG conforming to IEC 60947-5-1 |
| [Ith] conventional free air thermal current | 10 A conforming to IEC 60947-5-1 |
| [Ui] rated insulation voltage | 600 V (pollution degree 3) conforming to IEC 60947-1 |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to IEC 60947-1 |
| [Ie] rated operational current | 3 A at 240 V, AC-15, A600 conforming to IEC 60947-5-1 |
| 6 A at 120 V, AC-15, A600 conforming to IEC 60947-5-1 | |
| 0.1 A at 600 V, DC-13, Q600 conforming to IEC 60947-5-1 | |
| 0.27 A at 250 V, DC-13, Q600 conforming to IEC 60947-5-1 | |
| 0.55 A at 125 V, DC-13, Q600 conforming to IEC 60947-5-1 | |
| 1.2 A at 600 V, AC-15, A600 conforming to IEC 60947-5-1 | |
| Electrical durability | 1000000 cycles, AC-15, 2 A at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C |
| 1000000 cycles, AC-15, 3 A at 120 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C | |
| 1000000 cycles, AC-15, 4 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C | |
| 1000000 cycles, DC-13, 0.2 A at 110 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C | |
| 1000000 cycles, DC-13, 0.5 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C | |
| Electrical reliability | Λ < 10exp(-6) at 5 V and 1 mA in clean environment conforming to IEC 60947-5-4 |
| Λ < 10exp(-8) at 17 V and 5 mA in clean environment conforming to IEC 60947-5-4 | |
| Signalling type | Steady |
| Device presentation | Complete product |
| Environment | |
| Protective treatment | TH |
| Ambient air temperature for storage | -40…70 °C |
| Ambient air temperature for operation | -40…55 °C |
| Electrical shock protection class | Class I conforming to IEC 60536 |
| IP degree of protection | IP66 conforming to IEC 60529 |
| IP67 | |
| IP69 | |
| IP69K | |
| NEMA degree of protection | NEMA 13 |
| NEMA 4X | |
| IK degree of protection | IK06 conforming to IEC 50102 |
| standards | IEC 60947-1 |
| CSA C22.2 No 14 | |
| JIS C8201-5-1 | |
| IEC 60947-5-1 | |
| UL 508 | |
| IEC 60947-5-4 | |
| IEC 60947-5-5 | |
| JIS C8201-1 | |
| product certifications | UL listed |
| CSA | |
| DNV | |
| LROS (Lloyds register of shipping) | |
| BV | |
| GL | |
| Vibration resistance | 5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 | |
| Weight | 0.097000 |
|---|---|
| Brand | Schneider Electric |
| Model | XB4BW3565 |
| Color | Orange |
| Width [cm] | 3 |
| Height [cm] | 4.7 |
| Range | Harmony XB4 |
| Family | IDSIG |
| Type | Illuminated Push-button |
| IK Degree of Protection | IK06 |
