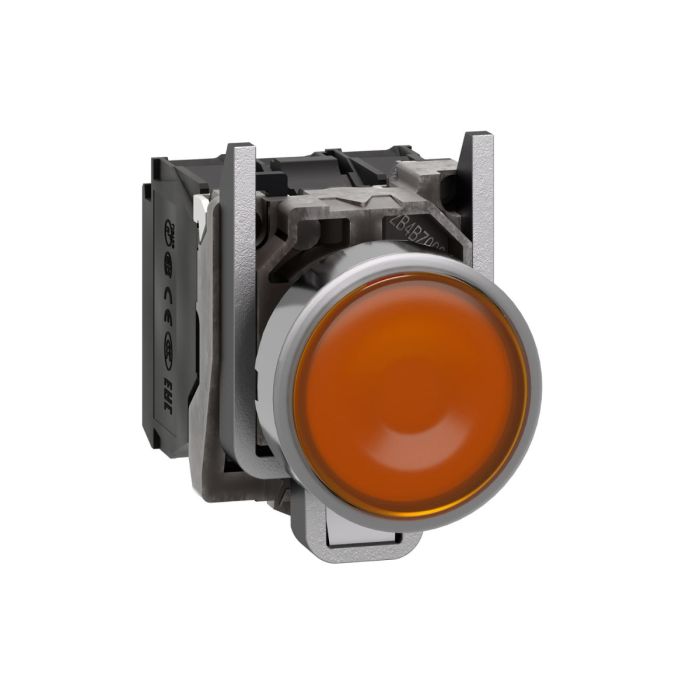

Schneider Electric Illuminated Push Button, Metal, Flush, Orange, 22mm Diameter, Spring Return, 230-240V AC, 1 Normally Open + 1 Normally Closed.
Range of product: Harmony XB4
Product type: Illuminated selector switch
Type of operator: Stay put
Shape of signaling unit head: Round
The Schneider Electric XB4BW35M5 Illuminated Push Button is part of the Harmony XB4 series and offers a perfect solution for industrial control and signaling applications. It features a robust metal construction with a 22mm diameter and is designed for easy flush mounting on panels and enclosures. It comes in a vibrant orange color for clear visual signaling and features a spring return mechanism, making it suitable for applications that require precise control and reliable signaling. It operates at a voltage of 230-240V AC and is equipped with 1 normally open (NO) contact and 1 normally closed (NC) contact, providing versatility and functionality.
Key Features:
Illuminated Push Button: Designed with bright illumination for clear visual signaling.
Metal Construction: Made of strong metal materials for durability.
Flush Mounting: Designed for easy flush mounting on panels and enclosures.
Spring Return: Automatically returns to its original position after activation.
Rated Voltage: Operates at 230-240V AC to meet industrial operation requirements.
Contacts: Equipped with 1 normally open (NO) contact and 1 normally closed (NC) contact for versatility in applications.
Product Specifications:
Type: Illuminated Push Button
Series: Harmony XB4
Color: Orange
Construction: Metal
Diameter: 22mm
Return Mechanism: Spring Return
Voltage: 230-240V AC
Contacts: 1 Normally Open + 1 Normally Closed
Specifications
| Main | |
| Range of product | Harmony XB4 |
| Product or component type | Illuminated push-button |
| Device short name | XB4 |
| bezel material | Chromium plated metal |
| Fixing collar material | Zamak |
| Mounting diameter | 22 mm |
| Sale per indivisible quantity | 1 |
| Head type | Standard |
| Shape of signaling unit head | Round |
| Type of operator | Spring return |
| Operator profile | Orange flush |
| Operator additional information | With plain lens |
| Contacts type and composition | 1 NO + 1 NC |
| contact operation | Slow-break |
| Connections - terminals | Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to IEC 60947-1 |
| Screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end conforming to IEC 60947-1 | |
| Light source | Universal LED |
| Bulb base | Integral LED |
| [Us] rated supply voltage | 230...240 V AC at 50/60 Hz |
| Complementary | |
| height | 47 mm |
| Width | 30 mm |
| Depth | 101 mm |
| Terminals description ISO n°1 | (21-22)NC |
| (13-14)NO | |
| Net weight | 0.097 kg |
| Resistance to high pressure washer | 7000000 Pa at 55 °C, distance : 0.1 m |
| contacts usage | Standard contacts |
| Positive opening | With conforming to IEC 60947-5-1 appendix K |
| Operating travel | 1.5 mm (NC changing electrical state) |
| 2.6 mm (NO changing electrical state) | |
| 4.3 mm (total travel) | |
| Operating force | 3.5 N NC changing electrical state |
| 3.8 N | |
| Mechanical durability | 10000000 cycles |
| Tightening torque | 0.8…1.2 N.m conforming to IEC 60947-1 |
| Shape of screw head | Cross compatible with Philips no 1 screwdriver |
| Cross compatible with pozidriv No 1 screwdriver | |
| Slotted compatible with flat Ø 4 mm screwdriver | |
| Slotted compatible with flat Ø 5.5 mm screwdriver | |
| Contacts material | Silver alloy (Ag/Ni) |
| Short-circuit protection | 10 A cartridge fuse type gG conforming to IEC 60947-5-1 |
| [Ith] conventional free air thermal current | 10 A conforming to IEC 60947-5-1 |
| [Ui] rated insulation voltage | 600 V (pollution degree 3) conforming to IEC 60947-1 |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to IEC 60947-1 |
| [Ie] rated operational current | 3 A at 240 V, AC-15, A600 conforming to IEC 60947-5-1 |
| 6 A at 120 V, AC-15, A600 conforming to IEC 60947-5-1 | |
| 0.1 A at 600 V, DC-13, Q600 conforming to IEC 60947-5-1 | |
| 0.27 A at 250 V, DC-13, Q600 conforming to IEC 60947-5-1 | |
| 0.55 A at 125 V, DC-13, Q600 conforming to IEC 60947-5-1 | |
| 1.2 A at 600 V, AC-15, A600 conforming to IEC 60947-5-1 | |
| Electrical durability | 1000000 cycles, AC-15, 2 A at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C |
| 1000000 cycles, AC-15, 3 A at 120 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C | |
| 1000000 cycles, AC-15, 4 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C | |
| 1000000 cycles, DC-13, 0.2 A at 110 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C | |
| 1000000 cycles, DC-13, 0.5 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C | |
| Electrical reliability | Λ < 10exp(-6) at 5 V and 1 mA in clean environment conforming to IEC 60947-5-4 |
| Λ < 10exp(-8) at 17 V and 5 mA in clean environment conforming to IEC 60947-5-4 | |
| Signalling type | Steady |
| Current consumption | 14 mA |
| Service life | 100000 h at rated voltage and 25 °C |
| Surge withstand | 1 kV conforming to IEC 61000-4-5 |
| Supply voltage limits | 195…264 V AC |
| Device presentation | Complete product |
| Environment | |
| Protective treatment | TH |
| Ambient air temperature for storage | -40…70 °C |
| Ambient air temperature for operation | -40…70 °C |
| Electrical shock protection class | Class I conforming to IEC 60536 |
| IP degree of protection | IP66 conforming to IEC 60529 |
| IP67 | |
| IP69 | |
| IP69K | |
| NEMA degree of protection | NEMA 13 |
| NEMA 4X | |
| IK degree of protection | IK06 conforming to IEC 50102 |
| standards | JIS C8201-5-1 |
| UL 508 | |
| IEC 60947-5-5 | |
| IEC 60947-1 | |
| CSA C22.2 No 14 | |
| IEC 60947-5-1 | |
| IEC 60947-5-4 | |
| JIS C8201-1 | |
| product certifications | DNV |
| CSA | |
| LROS (Lloyds register of shipping) | |
| GL | |
| BV | |
| UL listed | |
| Vibration resistance | 5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 | |
| Resistance to fast transients | 2 kV conforming to IEC 61000-4-4 |
| Resistance to electromagnetic fields | 10 V/m conforming to IEC 61000-4-3 |
| Resistance to electrostatic discharge | 6 kV on contact (on metal parts) conforming to IEC 61000-4-2 |
| 8 kV in free air (in insulating parts) conforming to IEC 61000-4-2 | |
| Electromagnetic emission | Class B conforming to IEC 55011 |
| Weight | 0.097000 |
|---|---|
| Brand | Schneider Electric |
| Model | XB4BW35M5 |
| Color | Orange |
| Width [cm] | 3 |
| Height [cm] | 4.7 |
| Range | Harmony XB4 |
| Family | IDSIG |
