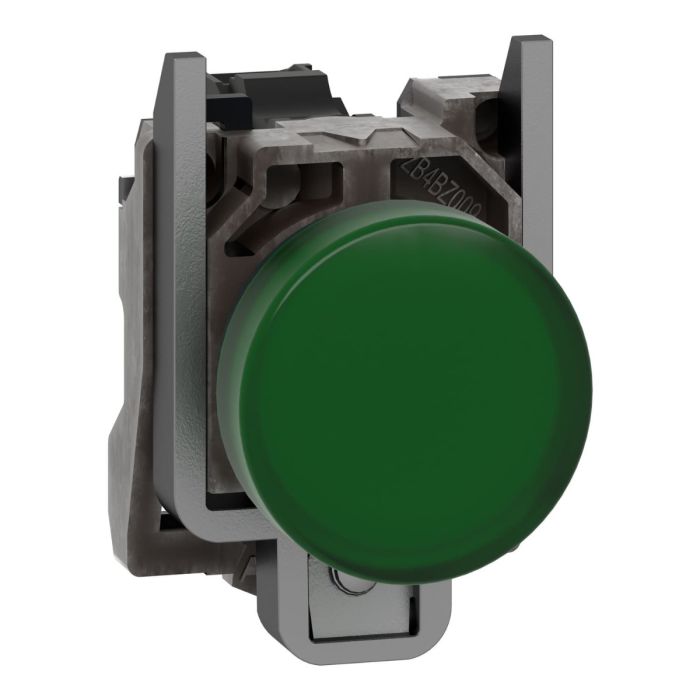

Push Button, Momentary, 22mm Mounting, Schneider Electric
Range of product: Harmony XB4
Product type: Pilot light
Type of operator: Plain lens
Shape of signaling unit head: Round
Introducing the Schneider Electric XB4BVB3 Push Button – a versatile and dependable solution for your electrical control requirements. This push button offers momentary operation, making it ideal for applications that require simple and quick activation. It is designed for 22mm mounting, providing compatibility with various control panels and enclosures.
Key Features:
Effortless Operation: The XB4BVB3 push button provides momentary operation, allowing for easy activation or deactivation of functions with a simple touch.
22mm Mounting: The 22mm mounting size is an industry standard, ensuring compatibility with a wide range of control systems.
Durable Build: Crafted with high-quality materials, this push button is built to withstand demanding environments.
Technical Specifications:
Operation: Momentary
Mounting Size: 22mm
Specifications
| Main | |
| Range of product | Harmony XB4 |
| Product or component type | Pilot light |
| Device short name | XB4 |
| bezel material | Chromium plated metal |
| Fixing collar material | Zamak |
| Mounting diameter | 22 mm |
| Head type | Standard |
| Sale per indivisible quantity | 1 |
| Shape of signaling unit head | Round |
| Cap/operator or lens colour | Green |
| Operator additional information | With plain lens |
| Light source | Universal LED |
| Bulb base | Integral LED |
| light source colour | Green |
| [Us] rated supply voltage | 24 V AC/DC 50/60 Hz |
| Complementary | |
| height | 47 mm |
| Width | 30 mm |
| Depth | 54 mm |
| Terminals description ISO n°1 | (X1-X2)PL |
| Net weight | 0.08 kg |
| Resistance to high pressure washer | 7000000 Pa at 55 °C, distance : 0.1 m |
| Connections - terminals | Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to IEC 60947-1 |
| Screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end conforming to IEC 60947-1 | |
| [Ui] rated insulation voltage | 250 V (pollution degree 3) conforming to IEC 60947-1 |
| [Uimp] rated impulse withstand voltage | 4 kV conforming to IEC 60947-1 |
| Signalling type | Steady |
| Current consumption | 18 mA |
| Service life | 100000 h at rated voltage and 25 °C |
| Surge withstand | 1 kV conforming to IEC 61000-4-5 |
| Device presentation | Complete product |
| Supply voltage limits | 19.2…30 V DC |
| 21.6…26.4 V AC | |
| Environment | |
| Protective treatment | TH |
| Ambient air temperature for storage | -40…70 °C |
| Ambient air temperature for operation | -40…70 °C |
| Electrical shock protection class | Class I conforming to IEC 60536 |
| IP degree of protection | IP66 conforming to IEC 60529 |
| IP67 | |
| IP69 | |
| IP69K | |
| NEMA degree of protection | NEMA 13 |
| NEMA 4X | |
| IK degree of protection | IK06 conforming to IEC 50102 |
| standards | IEC 60947-5-5 |
| IEC 60947-5-4 | |
| IEC 60947-5-1 | |
| JIS C8201-5-1 | |
| UL 508 | |
| CSA C22.2 No 14 | |
| IEC 60947-1 | |
| JIS C8201-1 | |
| product certifications | CSA |
| UL listed | |
| Vibration resistance | 5 gn (f= 12…500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 | |
| Resistance to fast transients | 2 kV conforming to IEC 61000-4-4 |
| Resistance to electromagnetic fields | 10 V/m conforming to IEC 61000-4-3 |
| Resistance to electrostatic discharge | 6 kV on contact (on metal parts) conforming to IEC 61000-4-2 |
| 8 kV in free air (in insulating parts) conforming to IEC 61000-4-2 | |
| Electromagnetic emission | Class B conforming to IEC 55011 |
| Weight | 0.080000 |
|---|---|
| Brand | Schneider Electric |
| Model | XB4BVB3 |
| Color | Green |
| Depth [cm] | 54 |
| Width [cm] | 30 |
| Height [cm] | 47 |
| Range | Harmony XB4 |
| Family | IDSIG |
