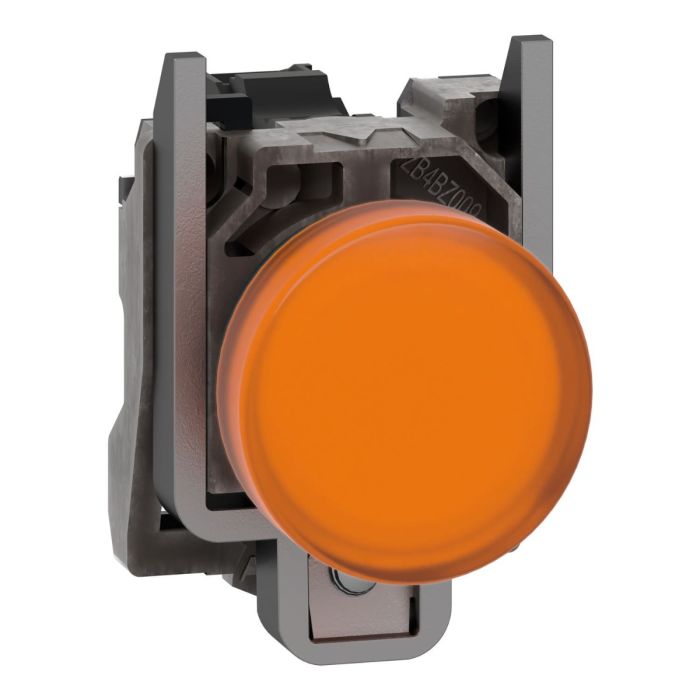

Schneider Electric Pilot light, Metal, Orange, Ø22, plain lens with integral LED,24 V AC/D
In stock
SKU
XB4BVB5
Special Price EGP 485 Regular Price EGP 836
Schneider Electric Pilot light, Metal, Orange, Ø22, plain lens with integral LED,24 V AC/D is available to buy in increments of 1
Quick Overview
Range: Harmony XB4
Product type: Pilot light
Head type: Standard
Color: Orange
You May Also Like:
Schneider Electric Selector Switch, 2-Position, Spring Return, 22mm MountingSpecial Price EGP 617 Regular Price EGP 1,065
Schneider Electric Push Button, Momentary, 22mm MountingSpecial Price EGP 485 Regular Price EGP 836
Schneider Electric 40mm Emergency Stop Switch with Trigger Latching, Turn-to-Release, and 1 Normally Closed ContactSpecial Price EGP 1,189 Regular Price EGP 2,050
Schneider Electric Single Contact Block, Silver Alloy, Screw Clamp Terminal, 1 Normally Closed (NC)Special Price EGP 212 Regular Price EGP 366
Schneider Electric Key Switch Selector, Metal, Black, 22 mm, 3 Positions Stay-Put, 2 Normally Open ContactsSpecial Price EGP 1,821 Regular Price EGP 3,140
Schneider Electric Push Button, Momentary, Illuminated, 22mm MountingSpecial Price EGP 485 Regular Price EGP 836
Schneider Electric Push Button, Latching, 22mm MountingSpecial Price EGP 453 Regular Price EGP 781
Schneider Electric Selector switch, metal, black, 22mm Mounting, 3 positions, spring spring return, 2 NOSpecial Price EGP 1,123 Regular Price EGP 1,936
Schneider Electric Push Button, Mushroom Head, 22mm MountingSpecial Price EGP 453 Regular Price EGP 781
Schneider Electric Push Button, Twist-to-Release, 22mm MountingSpecial Price EGP 453 Regular Price EGP 781
Schneider Electric Selector Switch, 2-Position, Momentary, Spring Return, 22mm MountingSpecial Price EGP 617 Regular Price EGP 1,065
Schneider Electric Illuminated Push Button, Harmony XB4, Metal, Flush, Green, 22mm, Spring Return, LT 230-240V, 1 NO + 1 NCSpecial Price EGP 1,510 Regular Price EGP 2,604
Schneider Electric Illuminated Push Button, Harmony XB4, Metal, Flush, Orange, 22mm, Spring Return, LT 250V, 1 Normally Open + 1 Normally ClosedSpecial Price EGP 906 Regular Price EGP 1,561
Schneider Electric Illuminated Push Button, Metal, Flush, Orange, 22mm Diameter, Spring Return, 230-240V AC, 1 Normally Open + 1 Normally Closed.Special Price EGP 1,510 Regular Price EGP 2,604
Schneider Electric Illuminated Selector Switch, Metal, Green, Ø22mm, 2-Position, Stay-Put, 24V AC/DC, 1 NO + 1 NCSpecial Price EGP 1,559 Regular Price EGP 2,688
Schneider Electric Selector switch, metal, black, 22mm Mounting, 2 positions, stay put, 1 NOSpecial Price EGP 672 Regular Price EGP 1,159
Schneider Electric Pilot light, metal, orange, 22mm Mounting, plain lens with integral LED, 230...240 VACSpecial Price EGP 617 Regular Price EGP 1,065
Schneider Electric Harmony XB4 Metal Flush Push Button, Yellow, 22mm, Spring Return, Unmarked, 1 Normally Open ContactSpecial Price EGP 449 Regular Price EGP 773
Schneider Electric Illuminated Push Button, Metal Flush, Green, Ø22, Spring Return, 1 NO + 1 NC, 24V AC/DCSpecial Price EGP 908 Regular Price EGP 1,565
Schneider Electric Push Button, Flush Head, Maintained, 22mm MountingSpecial Price EGP 449 Regular Price EGP 773
This Harmony XB4 plain lens modular orange pilot light is supplied with 24V AC/DC,uses an integral LED. It has a metal bezel. This pilot light,designed to last without maintenance for a bright indication of process and machine operations,is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance thanks to a bright and long lasting LED illumination. It is impact resistant,dust resistant,water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K,making it ideal for operation in harsh environments.
Specifications:
Main | |
| Range of product | Harmony XB4 |
| Product or component type | Pilot light |
| Device short name | XB4 |
| Bezel material | Chromium plated metal |
| Fixing collar material | Zamak |
| Mounting diameter | 22.5 mm |
| Head type | Standard |
| Sale per indivisible quantity | 1 |
| Shape of signaling unit head | Round |
| Cap/operator or lens colour | Orange |
| Operator additional information | With plain lens |
| Light source | Universal LED |
| Bulb base | Integral LED |
| Light source colour | Orange |
| [Us] rated supply voltage | 24 V AC/DC 50/60 Hz |
| Complementary | |
| Height | 47 mm |
| Width | 30 mm |
| Depth | 54 mm |
| Terminals description ISO n°1 | (X1-X2)PL |
| Net weight | 0.08 kg |
| Resistance to high pressure washer | 7000000 Pa at 55 °C, distance : 0.1 m |
| Connections - terminals | Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to IEC 60947-1 |
| Screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end conforming to IEC 60947-1 | |
| [Ui] rated insulation voltage | 250 V (pollution degree 3) conforming to IEC 60947-1 |
| [Uimp] rated impulse withstand voltage | 4 kV conforming to IEC 60947-1 |
| Signalling type | Steady |
| Current consumption | 18 mA |
| Service life | 100000 h at rated voltage and 25 °C |
| Surge withstand | 1 kV conforming to IEC 61000-4-5 |
| Device presentation | Complete product |
| Supply voltage limits | 19.2…30 V DC |
| 21.6…26.4 V AC | |
| Environment | |
| Protective treatment | TH |
| Ambient air temperature for storage | -40…70 °C |
| Ambient air temperature for operation | -40…70 °C |
| Electrical shock protection class | Class I conforming to IEC 60536 |
| IP degree of protection | IP66 conforming to IEC 60529 |
| IP67 | |
| IP69 | |
| IP69K | |
| NEMA degree of protection | NEMA 13 |
| NEMA 4X | |
| IK degree of protection | IK06 conforming to IEC 50102 |
| Standards | IEC 60947-1 |
| IEC 60947-5-4 | |
| JIS C8201-5-1 | |
| CSA C22.2 No 14 | |
| IEC 60947-5-1 | |
| UL 508 | |
| IEC 60947-5-5 | |
| JIS C8201-1 | |
| Product certifications | CSA |
| UL listed | |
| Vibration resistance | 5 gn (f= 12…500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 | |
| Resistance to fast transients | 2 kV conforming to IEC 61000-4-4 |
| Resistance to electromagnetic fields | 10 V/m conforming to IEC 61000-4-3 |
| Resistance to electrostatic discharge | 6 kV on contact (on metal parts) conforming to IEC 61000-4-2 |
| 8 kV in free air (in insulating parts) conforming to IEC 61000-4-2 | |
| Electromagnetic emission | Class B conforming to IEC 55011 |
| Weight | 3.000000 |
|---|---|
| Brand | Schneider Electric |
| Model | XB4BVB5 |
| Color | Orange |
| Range | Harmony XB4 |
| Family | IDSIG |
| Type | Pilot light |
| IK Degree of Protection | IK06 |
