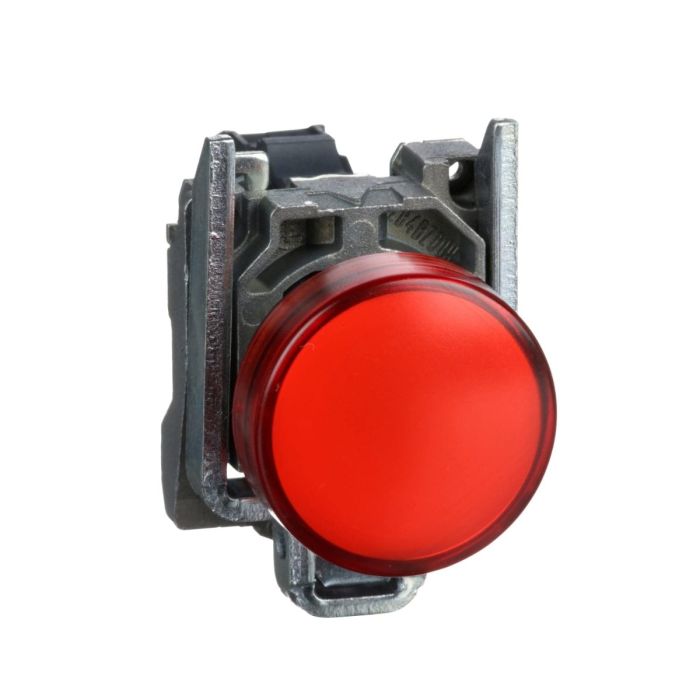

Push Button, Momentary, Illuminated, 22mm Mounting, Schneider Electric
Range of product: Harmony XB4
Product type: Pilot light
Type of operator: Plain lens
Shape of signaling unit head: Round
Introducing the Schneider Electric XB4BVB4 Push Button – a versatile and reliable solution for your electrical control needs. This push button features a momentary design, providing effortless control. It's also equipped with illumination for clear status indication and operates with a 22mm mounting size.
Key Features:
Effortless Control: The XB4BVB4 push button offers momentary operation, making it ideal for applications where you need to activate or deactivate a function with a simple touch.
Illuminated Design: This push button features built-in illumination, ensuring you can easily see the status of your equipment or systems.
22mm Mounting: With a standard 22mm mounting size, it's compatible with a wide range of control panels and enclosures.
High-Quality Construction: Crafted with durable materials, this push button is built to withstand tough environments.
Technical Specifications:
Operation: Momentary
Illuminated: Yes
Mounting Size: 22mm
Specifications
| Main | |
| Range of product | Harmony XB4 |
| Product or component type | Pilot light |
| Device short name | XB4 |
| bezel material | Chromium plated metal |
| Fixing collar material | Zamak |
| Mounting diameter | 22.5 mm |
| Head type | Standard |
| Sale per indivisible quantity | 1 |
| Shape of signaling unit head | Round |
| Cap/operator or lens colour | Red |
| Operator additional information | With plain lens |
| Light source | Universal LED |
| Bulb base | Integral LED |
| light source colour | Red |
| [Us] rated supply voltage | 24 V AC/DC 50/60 Hz |
| Complementary | |
| height | 47 mm |
| Width | 30 mm |
| Depth | 54 mm |
| Terminals description ISO n°1 | (X1-X2)PL |
| Net weight | 0.08 kg |
| Resistance to high pressure washer | 7000000 Pa at 55 °C, distance : 0.1 m |
| Connections - terminals | Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to EN/IEC 60947-1 |
| Screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end conforming to EN/IEC 60947-1 | |
| [Ui] rated insulation voltage | 250 V (pollution degree 3) conforming to EN 60947-1 |
| [Uimp] rated impulse withstand voltage | 4 kV conforming to EN 60947-1 |
| Signalling type | Steady |
| Current consumption | 18 mA |
| Service life | 100000 h at rated voltage and 25 °C |
| Surge withstand | 1 kV conforming to IEC 61000-4-5 |
| Device presentation | Complete product |
| Supply voltage limits | 19.2…30 V DC |
| 21.6…26.4 V AC | |
| Environment | |
| Protective treatment | TH |
| Ambient air temperature for storage | -40…70 °C |
| Ambient air temperature for operation | -40…70 °C |
| Electrical shock protection class | Class I conforming to IEC 60536 |
| IP degree of protection | IP66 conforming to IEC 60529 |
| IP67 | |
| IP69 | |
| IP69K | |
| NEMA degree of protection | NEMA 13 |
| NEMA 4X | |
| IK degree of protection | IK06 conforming to IEC 50102 |
| standards | EN/IEC 60947-5-5 |
| EN/IEC 60947-5-4 | |
| JIS C8201-5-1 | |
| EN/IEC 60947-5-1 | |
| EN/IEC 60947-1 | |
| CSA C22.2 No 14 | |
| UL 508 | |
| JIS C8201-1 | |
| product certifications | CSA |
| UL listed | |
| Vibration resistance | 5 gn (f= 12…500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 | |
| Resistance to fast transients | 2 kV conforming to IEC 61000-4-4 |
| Resistance to electromagnetic fields | 10 V/m conforming to IEC 61000-4-3 |
| Resistance to electrostatic discharge | 6 kV on contact (on metal parts) conforming to IEC 61000-4-2 |
| 8 kV in free air (in insulating parts) conforming to IEC 61000-4-2 | |
| Electromagnetic emission | Class B conforming to IEC 55011 |
| Weight | 0.080000 |
|---|---|
| Brand | Schneider Electric |
| Model | XB4BVB4 |
| Color | Red |
| Depth [cm] | 54 |
| Width [cm] | 30 |
| Height [cm] | 47 |
| Range | Harmony XB4 |
| Family | IDSIG |
