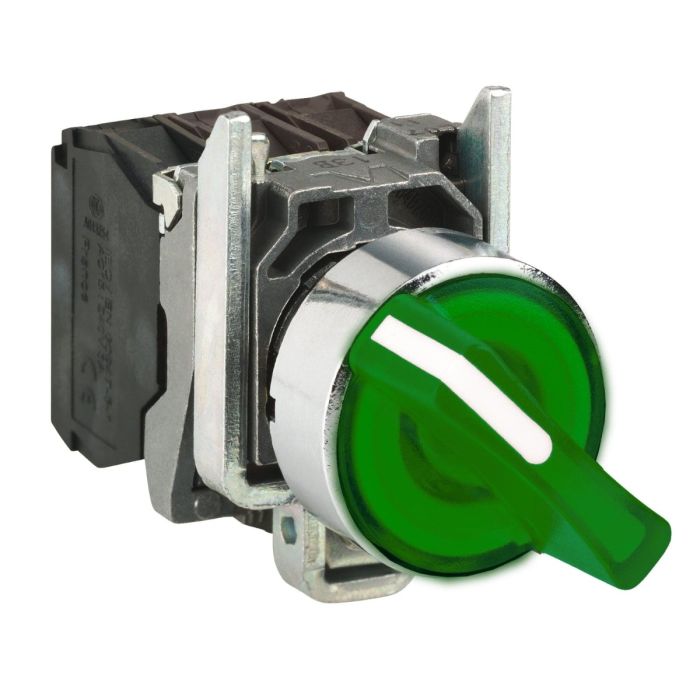

Schneider Electric Illuminated Selector Switch, Metal, Green, Ø22mm, 2-Position, Stay-Put, 24V AC/DC, 1 NO + 1 NC
Range of product: Harmony XB4
Product type: Illuminated selector switch
Type of operator: Stay put
Shape of signaling unit head: Round
The Schneider Electric XB4BK123B5 Illuminated Selector Switch is an essential component of control and signaling systems in industrial applications. This switch features a green metal design with a 22mm diameter. It provides a 2-position stay-put functionality, meaning it remains in the selected position. It operates at 24V AC/DC and comes with 1 Normally Open (NO) and 1 Normally Closed (NC) contact. This makes it suitable for multiple control and signaling functions in industrial environments.
Key Features:
Illuminated Selector Switch: A green illuminated selector switch enhances visibility and control.
2-Position Stay-Put: Offers two stable positions for reliable control.
Voltage Compatibility: Operates at 24V AC/DC for versatile usage.
Contacts: Features 1 Normally Open (NO) and 1 Normally Closed (NC) contact.
Product Specifications:
Type: Illuminated Selector Switch
Color: Green
Diameter: 22mm
Positions: 2-Position (Stay-Put)
Voltage: 24V AC/DC
Contacts: 1 Normally Open (NO) + 1 Normally Closed (NC)
Specifications
| Main | |
| Range of product | Harmony XB4 |
| Product or component type | Illuminated selector switch |
| Device short name | XB4 |
| bezel material | Chromium plated metal |
| Fixing collar material | Zamak |
| Head type | Standard |
| Mounting diameter | 22 mm |
| Sale per indivisible quantity | 1 |
| Shape of signaling unit head | Round |
| Type of operator | Stay put |
| Operator profile | Green standard handle |
| Operator position information | 2 positions 90° |
| Contacts type and composition | 1 NO + 1 NC |
| contact operation | Slow-break |
| Connections - terminals | Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to IEC 60947-1 |
| Screw clamp terminals, >= 1 x 0.22 mm² without cable end conforming to IEC 60947-1 | |
| Light source | Universal LED |
| Bulb base | Integral LED |
| [Us] rated supply voltage | 24 V AC/DC at 50/60 Hz |
| Complementary | |
| height | 47 mm |
| Width | 30 mm |
| Depth | 68 mm |
| Terminals description ISO n°1 | (13-14)NO |
| (21-22)NC | |
| Net weight | 0.111 kg |
| Resistance to high pressure washer | 7000000 Pa at 55 °C, distance : 0.1 m |
| contacts usage | Standard contacts |
| Positive opening | With conforming to IEC 60947-5-1 appendix K |
| Operating torque | 0.14 N.m NO changing electrical state |
| Mechanical durability | 1000000 cycles |
| Tightening torque | 0.8…1.2 N.m conforming to IEC 60947-1 |
| Shape of screw head | Cross compatible with Philips no 1 screwdriver |
| Cross compatible with pozidriv No 1 screwdriver | |
| Slotted compatible with flat Ø 4 mm screwdriver | |
| Slotted compatible with flat Ø 5.5 mm screwdriver | |
| Contacts material | Silver alloy (Ag/Ni) |
| Short-circuit protection | 10 A cartridge fuse type gG conforming to IEC 60947-5-1 |
| [Ith] conventional free air thermal current | 10 A conforming to IEC 60947-5-1 |
| [Ui] rated insulation voltage | 600 V (pollution degree 3) conforming to IEC 60947-1 |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to IEC 60947-1 |
| [Ie] rated operational current | 3 A at 240 V, AC-15, A600 conforming to IEC 60947-5-1 |
| 6 A at 120 V, AC-15, A600 conforming to IEC 60947-5-1 | |
| 0.1 A at 600 V, DC-13, Q600 conforming to IEC 60947-5-1 | |
| 0.27 A at 250 V, DC-13, Q600 conforming to IEC 60947-5-1 | |
| 0.55 A at 125 V, DC-13, Q600 conforming to IEC 60947-5-1 | |
| 1.2 A at 600 V, AC-15, A600 conforming to IEC 60947-5-1 | |
| Electrical durability | 1000000 cycles, AC-15, 2 A at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN 60947-5-1 appendix C |
| 1000000 cycles, AC-15, 3 A at 120 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN 60947-5-1 appendix C | |
| 1000000 cycles, AC-15, 4 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN 60947-5-1 appendix C | |
| 1000000 cycles, DC-13, 0.2 A at 110 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN 60947-5-1 appendix C | |
| 1000000 cycles, DC-13, 0.5 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN 60947-5-1 appendix C | |
| Electrical reliability | Λ < 10exp(-6) at 5 V and 1 mA in clean environment conforming to IEC 60947-5-4 |
| Λ < 10exp(-8) at 17 V and 5 mA in clean environment conforming to IEC 60947-5-4 | |
| Signalling type | Steady |
| Supply voltage limits | 19.2…30 V DC |
| 21.6…26.4 V AC | |
| Current consumption | 18 mA |
| Service life | 100000 h at rated voltage and 25 °C |
| Surge withstand | 1 kV conforming to IEC 61000-4-5 |
| Device presentation | Complete product |
| Environment | |
| Protective treatment | TH |
| Ambient air temperature for storage | -40…70 °C |
| Ambient air temperature for operation | -40…70 °C |
| Electrical shock protection class | Class I conforming to IEC 60536 |
| IP degree of protection | IP66 conforming to IEC 60529 |
| IP67 | |
| IP69 | |
| IP69K | |
| NEMA degree of protection | NEMA 13 |
| NEMA 4X | |
| IK degree of protection | IK04 conforming to IEC 50102 |
| standards | IEC 60947-5-4 |
| IEC 60947-1 | |
| UL 508 | |
| IEC 60947-5-1 | |
| CSA C22.2 No 14 | |
| IEC 60947-5-5 | |
| JIS C8201-5-1 | |
| JIS C8201-1 | |
| product certifications | DNV |
| LROS (Lloyds register of shipping) | |
| GL | |
| BV | |
| CSA | |
| UL | |
| Vibration resistance | 5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 | |
| Resistance to fast transients | 2 kV conforming to IEC 61000-4-4 |
| Resistance to electromagnetic fields | 10 V/m conforming to IEC 61000-4-3 |
| Resistance to electrostatic discharge | 6 kV on contact (on metal parts) conforming to IEC 61000-4-2 |
| 8 kV in free air (in insulating parts) conforming to IEC 61000-4-2 | |
| Electromagnetic emission | Class B conforming to IEC 55011 |
| Weight | 0.111000 |
|---|---|
| Brand | Schneider Electric |
| Model | XB4BK123B5 |
| Color | Green |
| Width [cm] | 3 |
| Height [cm] | 4.7 |
| Range | Harmony XB4 |
| Family | IDSIG |
