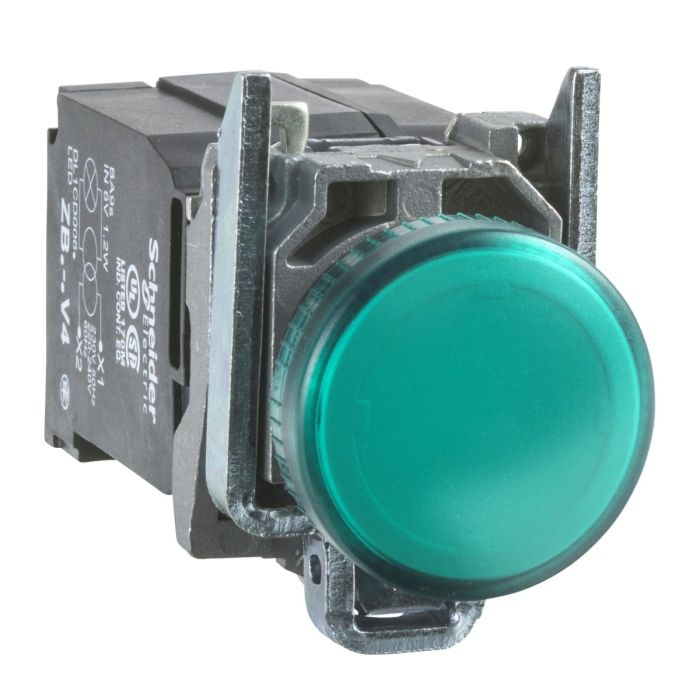

Schneider Electric Harmony XB4 Pilot Light, Metal Green, 22mm, Plain Lens with BA9s Bulb, 230-240V AC
In stock
SKU
XB4BV43
Special Price EGP 1,370 Regular Price EGP 2,362
Schneider Electric Harmony XB4 Pilot Light, Metal Green, 22mm, Plain Lens with BA9s Bulb, 230-240V AC is available to buy in increments of 1
Quick Overview
Range: Harmony XB4
Product type: Pilot light
Shape of signaling unit head: Round
Head type: Standard
You May Also Like:
Schneider Electric Selector Switch, 2-Position, Spring Return, 22mm MountingSpecial Price EGP 617 Regular Price EGP 1,065
Schneider Electric Push Button, Momentary, 22mm MountingSpecial Price EGP 485 Regular Price EGP 836
Schneider Electric 40mm Emergency Stop Switch with Trigger Latching, Turn-to-Release, and 1 Normally Closed ContactSpecial Price EGP 1,189 Regular Price EGP 2,050
Schneider Electric Pilot light, Metal, Orange, Ø22, plain lens with integral LED,24 V AC/DSpecial Price EGP 485 Regular Price EGP 836
Schneider Electric Single Contact Block, Silver Alloy, Screw Clamp Terminal, 1 Normally Closed (NC)Special Price EGP 212 Regular Price EGP 366
Schneider Electric Key Switch Selector, Metal, Black, 22 mm, 3 Positions Stay-Put, 2 Normally Open ContactsSpecial Price EGP 1,821 Regular Price EGP 3,140
Schneider Electric Push Button, Momentary, Illuminated, 22mm MountingSpecial Price EGP 485 Regular Price EGP 836
Schneider Electric Push Button, Latching, 22mm MountingSpecial Price EGP 453 Regular Price EGP 781
Schneider Electric Push Button, Mushroom Head, 22mm MountingSpecial Price EGP 453 Regular Price EGP 781
Schneider Electric Push Button, Twist-to-Release, 22mm MountingSpecial Price EGP 453 Regular Price EGP 781
Schneider Electric Selector Switch, 2-Position, Momentary, Spring Return, 22mm MountingSpecial Price EGP 617 Regular Price EGP 1,065
Schneider Electric Illuminated Push Button, Harmony XB4, Metal, Flush, Green, 22mm, Spring Return, LT 230-240V, 1 NO + 1 NCSpecial Price EGP 1,510 Regular Price EGP 2,604
Schneider Electric Illuminated Push Button, Harmony XB4, Metal, Flush, Orange, 22mm, Spring Return, LT 250V, 1 Normally Open + 1 Normally ClosedSpecial Price EGP 906 Regular Price EGP 1,561
Schneider Electric Illuminated Push Button, Metal, Flush, Orange, 22mm Diameter, Spring Return, 230-240V AC, 1 Normally Open + 1 Normally Closed.Special Price EGP 1,510 Regular Price EGP 2,604
Schneider Electric Illuminated Selector Switch, Metal, Green, Ø22mm, 2-Position, Stay-Put, 24V AC/DC, 1 NO + 1 NCSpecial Price EGP 1,559 Regular Price EGP 2,688
Schneider Electric Selector switch, metal, black, 22mm Mounting, 3 positions, spring spring return, 2 NOSpecial Price EGP 1,123 Regular Price EGP 1,936
Schneider Electric Selector switch, metal, black, 22mm Mounting, 2 positions, stay put, 1 NOSpecial Price EGP 672 Regular Price EGP 1,159
Schneider Electric Harmony XB4 Metal Flush Push Button, Yellow, 22mm, Spring Return, Unmarked, 1 Normally Open ContactSpecial Price EGP 449 Regular Price EGP 773
Schneider Electric Illuminated Push Button, Metal Flush, Green, Ø22, Spring Return, 1 NO + 1 NC, 24V AC/DCSpecial Price EGP 908 Regular Price EGP 1,565
Schneider Electric Push Button, Flush Head, Maintained, 22mm MountingSpecial Price EGP 449 Regular Price EGP 773
This Harmony XB4 plain lens modular green pilot light is supplied with 230V to 240V AC/DC, uses BA9s base. It has a metal bezel. This pilot light, designed to last without maintenance for a bright indicator of process and machine operations, is easily installed into a standard 22mm diameter cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance thanks to a bright and long lasting BA9s base illumination. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66/IP67/IP69/IP69K, making it ideal for operation in harsh environments.
Specifications:
| Main | |
| Range of Product | Harmony XB4 |
| Product or Component Type | Pilot light |
| Device short name | XB4 |
| Bezel material | Chromium plated metal |
| Fixing collar material | Zamak |
| Head type | Standard |
| Mounting diameter | 0.9 in (22.5 mm) |
| Sale per indivisible quantity | ١ |
| Shape of signaling unit head | Round |
| Cap/operator or lens colour | Green |
| Operator additional information | With plain lens |
| Light source | Incandescent |
| Bulb base | BA 9s |
| Light block supply | Via integral transformer 1.2 VA 6 V |
| [Us] rated supply voltage | 230...240 V AC 50/60 Hz |
| Complementary | |
| Height | 1.9 in (47 mm) |
| Width | 1.2 in (30 mm) |
| Depth | 3.07 in (78 mm) |
| Terminals description ISO n°1 | (X1-X2)PL |
| Product Weight | 0.335 lb(US) (0.152 kg) |
| Resistance to high pressure washer | 1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m |
| Connections - terminals | Screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 |
| Screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end IEC 60947-1 | |
| [Ui] rated insulation voltage | 600 V 3)IEC 60947-1 |
| [Uimp] rated impulse withstand voltage | 6 kV IEC 60947-1 |
| Signalling type | Steady |
| Device presentation | Complete product |
| Environment | |
| Protective treatment | TH |
| Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
| Ambient Air Temperature for Operation | -40…131 °F (-40…55 °C) |
| Electrical shock protection class | Class I conforming to IEC 60536 |
| IP degree of protection | IP66 IEC 60529 |
| IP67 | |
| IP69 | |
| IP69K | |
| NEMA degree of protection | NEMA 13 |
| NEMA 4X | |
| IK degree of protection | IK06 conforming to IEC 50102 |
| Standards | JIS C8201-5-1 |
| IEC 60947-5-1 | |
| UL 508 | |
| IEC 60947-5-4 | |
| CSA C22.2 No 14 | |
| IEC 60947-1 | |
| IEC 60947-5-5 | |
| JIS C8201-1 | |
| Product Certifications | UL Listed |
| CSA | |
| Vibration resistance | 5 gn (f= 12…500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 |
| 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 | |
| Ordering and shipping details | |
| Category | US10CS222468 |
| Discount Schedule | 0CS2 |
| GTIN | 3.38911E+12 |
| Returnability | Yes |
| Country of origin | FR |
| Weight | 0.152000 |
|---|---|
| Brand | Schneider Electric |
| Model | XB4BV43 |
| Color | Green |
| Depth [cm] | 7.8 |
| Width [cm] | 3 |
| Height [cm] | 4.7 |
| Range | Harmony XB4 |
| Family | IDSIG |
| Type | Pilot light |
| IP Degree of Protection | IP66 |
| IK Degree of Protection | IK06 |
