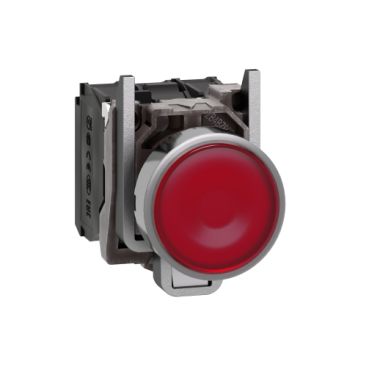

Schneider Electric Harmony XB4 Metal Illuminated Push Button, Red, Flush, 22mm, Universal LED, Plain Lens, 1 Normally Open + 1 Normally Closed, 24V AC/DC

Be the first to review this product
Out of stock
SKU
XB4BW34B5
Schneider Electric
Special Price EGP 908 Regular Price EGP 1,565
Estimated Time of Delivery is 72 Hours.
Ship to EGCalculate Shipping Cost

Installment Plans

The Installment Amount Is Approximate. The Actual Amount Will Be Shown During The Payment Process.

  • Bank Installment
  • Direct Installment
Add to Compare
Quick Overview

Range: Harmony XB4
Product type: Illuminated push-button
Shape of signaling unit head: Round
Head type: Standard

This Harmony XB4 illuminated modular red push button operates with a spring return mechanism, is supplied with 24V AC/DC, uses a universal LED. It has a metal bezel. This illuminated push button provides an ergonomic and visual interface for controlling your machines. It is easily installed into standard 22mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. It is clearly distinguishable visually at a distance thanks to a bright and long lasting LED illumination. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments.

Specifications:

Main
Range of ProductHarmony XB4
Product or Component TypeIlluminated push-button
Device short nameXB4
Bezel materialChromium plated metal
Fixing collar materialZamak
Mounting diameter0.9 in (22.5 mm)
Sale per indivisible quantity1
Head typeStandard
Shape of signaling unit headRound
Type of operatorspring return
Operator profileRed flush
Operator additional informationWith plain lens
Contacts type and composition1 NO + 1 NC
Contact operationSlow-break
Connections - terminalsScrew clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1
 Screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end IEC 60947-1
Light sourceUniversal LED
Bulb baseIntegral LED
[Us] rated supply voltage24 V AC/DC 50/60 Hz
Complementary
Height1.9 in (47 mm)
Width1.2 in (30 mm)
Depth2.2 in (57 mm)
Terminals description ISO n°1(13-14)NO
 (21-22)NC
Net Weight0.214 lb(US) (0.097 kg)
Resistance to high pressure washer1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m
Contacts usageStandard contacts
Positive openingWith IEC 60947-5-1 appendix K
Operating travel0.06 in (1.5 mm) NC changing electrical state)
 0.1 in (2.6 mm) NO changing electrical state)
 0.2 in (4.3 mm) total travel)
Operating force3.5 N NC changing electrical state
 3.8 N
Mechanical durability10000000 cycles
Tightening torque7.08…10.6 lbf.in (0.8…1.2 N.m) IEC 60947-1
Shape of screw headCross Philips no 1
 Cross pozidriv No 1
 Slotted flat Ø 4 mm
 Slotted flat Ø 5.5 mm
Contacts materialSilver alloy (Ag/Ni)
Short-circuit protection10 A cartridge fuse gG IEC 60947-5-1
[Ith] conventional free air thermal current10 A IEC 60947-5-1
[Ui] rated insulation voltage600 V 3)IEC 60947-1
[Uimp] rated impulse withstand voltage6 kV IEC 60947-1
[Ie] rated operational current3 A 240 V, AC-15, A600 IEC 60947-5-1
 6 A 120 V, AC-15, A600 IEC 60947-5-1
 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1
 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1
 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1
 1.2 A 600 V, AC-15, A600 IEC 60947-5-1
Electrical durability1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
Electrical reliabilityΛ < 10exp(-6) 5 V 1 mA in clean environment IEC 60947-5-4
 Λ < 10exp(-8) 17 V 5 mA in clean environment IEC 60947-5-4
Signalling typeSteady
Current Consumption18 mA
Service life100000 h at rated voltage and 25 °C
Surge withstand1 kV IEC 61000-4-5
Supply voltage limits19.2…30 V DC
 21.6…26.4 V AC
Device presentationComplete product
Environment
Protective treatmentTH
Ambient Air Temperature for Storage-40…158 °F (-40…70 °C)
Ambient air temperature for operation-40…158 °F (-40…70 °C)
Electrical shock protection classClass I IEC 60536
IP degree of protectionIP66 IEC 60529
 IP67
 IP69
 IP69K
NEMA degree of protectionNEMA 13
 NEMA 4X
IK degree of protectionIK06 conforming to IEC 50102
StandardsIEC 60947-5-5
 UL 508
 IEC 60947-5-1
 CSA C22.2 No 14
 IEC 60947-1
 IEC 60947-5-4
 JIS C8201-5-1
 JIS C8201-1
Product CertificationsCSA
 LROS (Lloyds register of shipping)
 BV
 UL Listed
 DNV
Vibration resistance5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6
Shock resistance30 gn 18 ms) half sine wave acceleration IEC 60068-2-27
 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Resistance to fast transients2 kV IEC 61000-4-4
Resistance to electromagnetic fields9.1 V/m (10 V/m) IEC 61000-4-3
Resistance to electrostatic discharge6 kV on contact (on metal parts) IEC 61000-4-2
 8 kV in free air (in insulating parts) IEC 61000-4-2
Electromagnetic emissionClass B IEC 55011
Ordering and shipping details
CategoryUS10CS222468
Discount Schedule0CS2
GTIN3.38911E+12
ReturnabilityYes
Country of originUS
More Information
Weight0.097000
BrandSchneider Electric
ModelXB4BW34B5
ColorRed
Depth [cm]5.7
Width [cm]3
Height [cm]4.7
RangeHarmony XB4
FamilyIDSIG
