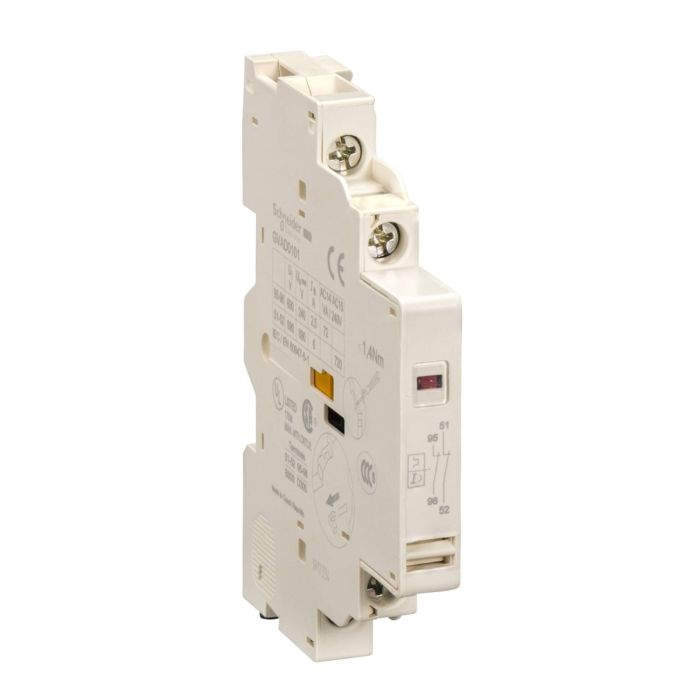

Schneider Electric TeSys GV2/GV3 Auxiliary Contact - 1 NO (Normally Open) + 1 NO (Normally Open) Fault
In stock
SKU
GVAD1010
Special Price EGP 983 Regular Price EGP 1,821
Schneider Electric TeSys GV2/GV3 Auxiliary Contact - 1 NO (Normally Open) + 1 NO (Normally Open) Fault is available to buy in increments of 1
Quick Overview
Range: TeSys Deca
Product type: Auxiliary contact block
Pole contact composition: 2 NO
Mounting location: Left side
منتجات أخرى قد تعجبك:
Schneider Electric TeSys GV2 Motor Circuit Breaker, 3P, 10A, Magnetic, Toggle Control, Screw Clamp TerminalsSpecial Price EGP 2,950 Regular Price EGP 5,463
Schneider Electric Motor circuit breaker GV2ME05, TeSys GV2, 3P, 0.63-1 A, thermal magnetic, screw clamp terminalsSpecial Price EGP 2,826 Regular Price EGP 5,233
Schneider Electric Undervoltage Release (MN), TeSys GV2-GV3,380-400V AC 50Hz / 440V AC 60HzSpecial Price EGP 1,898 Regular Price EGP 3,516
Schneider Electric TeSys GV2/GV3 Auxiliary Contact, 2 NO (Normally Open)Special Price EGP 641 Regular Price EGP 1,187
Schneider Electric TeSys GV2/GV3 Auxiliary Contact - 1 NO (Normally Open) + 1 NC (Normally Closed)Special Price EGP 641 Regular Price EGP 1,187
Schneider Electric TeSys GV2/GV3 Auxiliary Contact - 1 NO (Normally Open) / NC (Normally Closed)Special Price EGP 607 Regular Price EGP 1,124
Schneider Electric TeSys GV2 Motor Circuit Breaker, 3P, 24-32A, Thermal-Magnetic, Screw Clamp TerminalsSpecial Price EGP 5,614 Regular Price EGP 10,395
Schneider Electric TeSys GV2 Motor Circuit Breaker, 3P, 2.5A, Magnetic, Toggle Control, Screw Clamp TerminalsSpecial Price EGP 2,926 Regular Price EGP 5,418
Schneider Electric TeSys GV2 Motor Circuit Breaker, 3P, 1A, Magnetic, Toggle Control, Screw Clamp TerminalsSpecial Price EGP 2,869 Regular Price EGP 5,312
Schneider Electric Motor circuit breaker GV2ME20, TeSys GV2, 3P, 13-18 A, thermal magnetic, screw clamp terminalsSpecial Price EGP 2,950 Regular Price EGP 5,463
Schneider Electric TeSys GV2 Motor Circuit Breaker, 3P, 1.6A, Magnetic, Toggle Control, Screw Clamp TerminalsSpecial Price EGP 2,926 Regular Price EGP 5,418
Schneider Electric Tesys GV2 Enclosure for Tesys GV2ME, IP41Special Price EGP 749 Regular Price EGP 1,388
Schneider Electric TeSys GV2 Motor Circuit Breaker, 3P, 0.63A, Magnetic, Toggle Control, Screw Clamp TerminalsSpecial Price EGP 2,869 Regular Price EGP 5,312
Schneider Electric Motor Circuit Breaker GV2P04, TeSys GV2, 3P, 0.4-0.63 A, thermal magnetic, screw clamp terminalsSpecial Price EGP 3,787 Regular Price EGP 7,012
Schneider Electric Motor circuit breaker GV2ME04, TeSys GV2, 3P, 0.4-0.63 A, thermal magnetic, screw clamp terminalsSpecial Price EGP 2,706 Regular Price EGP 5,012
Schneider Electric TeSys GV2 Motor Circuit Breaker, 3P, 0.10-16 A, Thermal Magnetic, Screw Clamp TerminalsSpecial Price EGP 3,787 Regular Price EGP 7,012
Schneider Electric TeSys GV2 Motor Circuit Breaker, 3 Poles, 32 Amps, Magnetic, Toggle Control, Screw Clamp TerminalsSpecial Price EGP 6,162 Regular Price EGP 11,411
Schneider Electric TeSys GV2 Motor Circuit Breaker, 3 Poles, 32 Amps, Magnetic, Rotary Handle, Screw Clamp TerminalsSpecial Price EGP 6,901 Regular Price EGP 12,779
Schneider Electric TeSys GV2 Motor Circuit Breaker, 3 Poles, 25 Amps, Magnetic, Toggle Control, Screw Clamp TerminalsSpecial Price EGP 3,767 Regular Price EGP 6,975
Schneider Electric TeSys GV2 GV2ME10 Motor Circuit Breaker, 3 Poles, 4.6-3 Amps, Magnetic, Screw Clamp TerminalsSpecial Price EGP 2,826 Regular Price EGP 5,233
TeSys GV auxiliary contact block, for motor circuit breakers GV2 and GV3. 1NO fault signaling contact + 1NO instantaneous auxiliary contact. Instantaneous auxiliary contact rated for operation up to 6A/690V AC and 6A/240V DC. Fault signaling contact rated for operation up to 2A/240V AC and 1A/60V DC. To be installed on left-hand side of the circuit breaker (1 block mounting maximum), connection by screw clamp terminals. Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHS/REACh).
Key Features:
Compatibility: The GVAD1010 is specifically designed to work seamlessly with TeSys GV2 and GV3 motor circuit breakers, ensuring compatibility and easy integration.
Dual NO Contacts: With one normally open (NO) contact for standard control and one normally open (NO) fault contact for fault indication, this auxiliary contact block enhances control and safety in your electrical systems.
Enhanced Monitoring: The fault contact allows you to detect and respond to potential faults, enhancing the reliability of your systems.
Reliable Operation: Schneider Electric's commitment to quality and reliability ensures that the GVAD1010 performs consistently and effectively.
Specifications:
| Main | |
| Range | TeSys |
| TeSys Deca | |
| Device short name | GVAD |
| Product or component type | Auxiliary contact block |
| Product compatibility | GV2L |
| GV2P | |
| GV2RT | |
| GV3L | |
| GV2LE | |
| GV3P | |
| GV2ME | |
| Mounting location | Left side |
| Auxiliary contacts operation | Fault signal 1 NO |
| Pole contact composition | 2 NO |
| Complementary | |
| [Ui] rated insulation voltage | 690 V conforming to IEC 60947-1 |
| 300 V conforming to UL 508 | |
| 300 V conforming to CSA C22.2 No 14 | |
| [Ue] rated operational voltage | 48...690 V AC |
| 24...240 V DC | |
| [Ith] conventional free air thermal current | 6A |
| 2.5 A for fault signalling | |
| Mechanical durability | 100000 cycles |
| Minimum switching current | 5 mA |
| Minimum switching voltage | 17 V |
| Protection type | GB2CB... circuit breaker |
| GG fuse 10 A | |
| Rated operational power in VA | 300 VA at 48 V AC-15 - electrical durability: 100000 cycles |
| 414 VA at 690 V AC-15 - electrical durability: 100000 cycles | |
| 500 VA at 110…127 V AC-15 - electrical durability: 100000 cycles | |
| 500 VA at 500 V AC-15 - electrical durability: 100000 cycles | |
| 650 VA at 440 V AC-15 - electrical durability: 100000 cycles | |
| 720 VA at 230…240 V AC-15 - electrical durability: 100000 cycles | |
| 850 VA at 380…415 V AC-15 - electrical durability: 100000 cycles | |
| 36 VA at 24 V AC-14 - electrical durability: 1000 cycles | |
| 48 VA at 48 V AC-14 - electrical durability: 1000 cycles | |
| 72 VA at 110…127 V AC-14 - electrical durability: 1000 cycles | |
| Rated operational power in W | 120 W at 240 V DC-13 - electrical durability: 100000 cycles |
| 140 W at 110 V DC-13 - electrical durability: 100000 cycles | |
| 140 W at 24 V DC-13 - electrical durability: 100000 cycles | |
| 180 W at 60 V DC-13 - electrical durability: 100000 cycles | |
| 240 W at 48 V DC-13 - electrical durability: 100000 cycles | |
| 15 W at 48 V DC-13 - electrical durability: 1000 cycles | |
| 24 W at 24 V DC-13 - electrical durability: 1000 cycles | |
| 9 W at 60 V DC-13 - electrical durability: 1000 cycles | |
| Tightening torque | 1.4 N.m - on screw clamp terminals |
| Height | 89 mm |
| Width | 9.3 mm |
| Depth | 66 mm |
| Product weight | 0.055 kg |
| Colour | Dark grey |
| Environment | |
| Environmental characteristic | Normal environment |
| Product certifications | UKCA |
| Weight | 0.930000 |
|---|---|
| Brand | Schneider Electric |
| Model | GVAD1010 |
| Depth [cm] | 6.6 |
| Width [cm] | 0.055 |
| Height [cm] | 8.9 |
| Range | GV |
| Family | PPCTR |
| Type | Auxiliary Contact |
