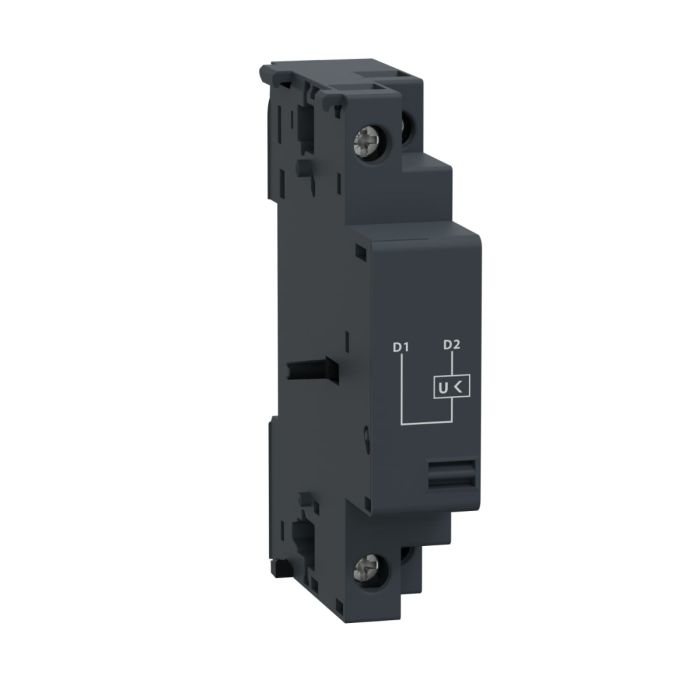

Schneider Electric Undervoltage Release (MN), TeSys GV2-GV3,380-400V AC 50Hz / 440V AC 60Hz
In stock
SKU
GVAU385
Special Price EGP 1,898 Regular Price EGP 3,516
Schneider Electric Undervoltage Release (MN), TeSys GV2-GV3,380-400V AC 50Hz / 440V AC 60Hz is available to buy in increments of 1
Quick Overview
Range: TeSys
Product type: Undervoltage release
Quantity per set: Set of 10
منتجات أخرى قد تعجبك:
Schneider Electric TeSys GV2 Motor Circuit Breaker, 3P, 10A, Magnetic, Toggle Control, Screw Clamp TerminalsSpecial Price EGP 2,950 Regular Price EGP 5,463
Schneider Electric Motor circuit breaker GV2ME05, TeSys GV2, 3P, 0.63-1 A, thermal magnetic, screw clamp terminalsSpecial Price EGP 2,826 Regular Price EGP 5,233
Schneider Electric Tesys GV2 & GV3 Padlocking Device, Up to 4 PadlocksSpecial Price EGP 3,156 Regular Price EGP 5,844
Schneider Electric TeSys GV2/GV3 Auxiliary Contact - 1 NO (Normally Open) + 1 NO (Normally Open) FaultSpecial Price EGP 983 Regular Price EGP 1,821
Schneider Electric TeSys GV2/GV3 Auxiliary Contact - 1 NO (Normally Open) + 1 NC (Normally Closed)Special Price EGP 641 Regular Price EGP 1,187
Schneider Electric TeSys GV2/GV3 Auxiliary Contact - 1 NO (Normally Open) / NC (Normally Closed)Special Price EGP 607 Regular Price EGP 1,124
Schneider Electric TeSys GV2 Motor Circuit Breaker, 3P, 24-32A, Thermal-Magnetic, Screw Clamp TerminalsSpecial Price EGP 5,614 Regular Price EGP 10,395
Schneider Electric TeSys GV2 Motor Circuit Breaker, 3P, 2.5A, Magnetic, Toggle Control, Screw Clamp TerminalsSpecial Price EGP 2,926 Regular Price EGP 5,418
Schneider Electric TeSys GV2 Motor Circuit Breaker, 3P, 1A, Magnetic, Toggle Control, Screw Clamp TerminalsSpecial Price EGP 2,869 Regular Price EGP 5,312
Schneider Electric Motor circuit breaker GV2ME20, TeSys GV2, 3P, 13-18 A, thermal magnetic, screw clamp terminalsSpecial Price EGP 2,950 Regular Price EGP 5,463
Schneider Electric TeSys GV2 Motor Circuit Breaker, 3P, 1.6A, Magnetic, Toggle Control, Screw Clamp TerminalsSpecial Price EGP 2,926 Regular Price EGP 5,418
Schneider Electric Tesys GV2 Enclosure for Tesys GV2ME, IP41Special Price EGP 749 Regular Price EGP 1,388
Schneider Electric TeSys GV2 Motor Circuit Breaker, 3P, 0.63A, Magnetic, Toggle Control, Screw Clamp TerminalsSpecial Price EGP 2,869 Regular Price EGP 5,312
Schneider Electric Motor Circuit Breaker GV2P04, TeSys GV2, 3P, 0.4-0.63 A, thermal magnetic, screw clamp terminalsSpecial Price EGP 3,787 Regular Price EGP 7,012
Schneider Electric Motor circuit breaker GV2ME04, TeSys GV2, 3P, 0.4-0.63 A, thermal magnetic, screw clamp terminalsSpecial Price EGP 2,706 Regular Price EGP 5,012
Schneider Electric TeSys GV2 Motor Circuit Breaker, 3P, 0.10-16 A, Thermal Magnetic, Screw Clamp TerminalsSpecial Price EGP 3,787 Regular Price EGP 7,012
Schneider Electric TeSys GV2 Motor Circuit Breaker, 3 Poles, 32 Amps, Magnetic, Toggle Control, Screw Clamp TerminalsSpecial Price EGP 6,162 Regular Price EGP 11,411
Schneider Electric TeSys GV2 Motor Circuit Breaker, 3 Poles, 32 Amps, Magnetic, Rotary Handle, Screw Clamp TerminalsSpecial Price EGP 6,901 Regular Price EGP 12,779
Schneider Electric TeSys GV2 Motor Circuit Breaker, 3 Poles, 25 Amps, Magnetic, Toggle Control, Screw Clamp TerminalsSpecial Price EGP 3,767 Regular Price EGP 6,975
Schneider Electric TeSys GV2 GV2ME10 Motor Circuit Breaker, 3 Poles, 4.6-3 Amps, Magnetic, Screw Clamp TerminalsSpecial Price EGP 2,826 Regular Price EGP 5,233
TeSys GV electrical trip,MN undervoltage release,380-400V AC 50Hz / 440V AC 60Hz,for motor circuit breakers GV2,GV3. It trips the circuit breaker when the control voltage drops below 0.35 Uc,possible opening between 0.35-0.7 Uc. Closing of the circuit breaker is only possible when the control voltage is applied in the range 0.85-1.1 Uc. To be mounted on right-hand side of the circuit breaker,connection by screw clamp terminals. Multi standards certified (IEC,UL,CSA,CCC,EAC),Green Premium compliant (RoHS/REACh).
Specifications:
| Main | |
| Range | TeSys |
| TeSys Deca | |
| Product or component type | Undervoltage release |
| Device short name | GVAU |
| Complementary | |
| Range compatibility | TeSys GV2ME |
| TeSys GV2LE | |
| TeSys GV2L | |
| TeSys GV2P | |
| TeSys GV3L | |
| TeSys GV3P | |
| TeSys Deca | |
| [Uc] control circuit voltage | 380...400 V AC 50 Hz |
| 440 V AC 60 Hz | |
| Control circuit voltage limits | 0.85...1.1 Un |
| [Ui] rated insulation voltage | 690 V AC conforming to IEC 60947-1 |
| 600 V AC conforming to UL 60947-4-1 | |
| 600 V AC conforming to CSA C22.2 No 60947-4-1 | |
| Threshold tripping voltage | 0.7...0.35 Un |
| Inrush power in VA | 12 VA AC |
| Inrush power in W | 8 W |
| Hold-in power consumption in VA | 3.5 VA AC |
| Hold-in power consumption in W | 1.1 W |
| Operating time | 10...15 ms conforming to IEC 60947-1 |
| On-load factor | 100% |
| Connections - terminals | Screw clamp terminals 1 cable(s) 1…2.5 mm²solid |
| Screw clamp terminals 2 cable(s) 1…2.5 mm²solid | |
| Screw clamp terminals 1 cable(s) 0.75…2.5 mm²flexible without cable end | |
| Screw clamp terminals 2 cable(s) 0.75…2.5 mm²flexible without cable end | |
| Screw clamp terminals 1 cable(s) 0.75…1.5 mm²flexible with cable end | |
| Screw clamp terminals 2 cable(s) 0.75…1.5 mm²flexible with cable end | |
| Tightening torque | < 1.4 N.m on screw clamp terminals |
| Mechanical durability | 10000 cycles with GV3P and GV3L |
| 30000 cycles with GV2ME and GV2P | |
| Quantity per set | Set of 10 |
| Height | 89 mm |
| Width | 18 mm |
| Depth | 66 mm |
| Net weight | 0.105 kg |
| Colour | Dark grey |
| Weight | 3.000000 |
|---|---|
| Brand | Schneider Electric |
| Model | GVAU385 |
| Color | Black |
| Depth [cm] | 6.6 |
| Width [cm] | 1.8 |
| Height [cm] | 8.9 |
| Range | GV |
| Family | PPCTR |
