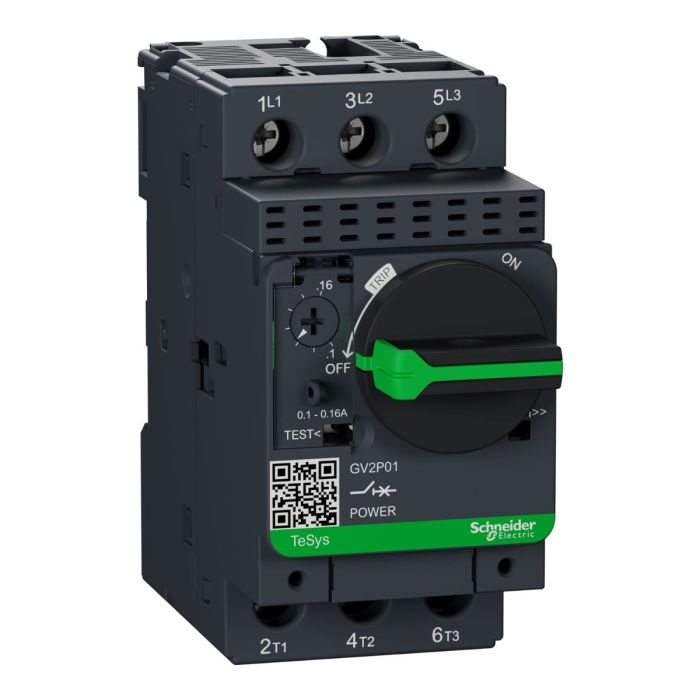

Schneider Electric TeSys GV2 Motor Circuit Breaker, 3P, 0.10-16 A, Thermal Magnetic, Screw Clamp Terminals
Range of product: TeSys Deca
Product type: Motor circuit breaker
Poles: 3P
Device application: Motor protection
The Schneider Electric GV2P01 TeSys GV2 Motor Circuit Breaker is a highly reliable and efficient device designed to protect electric motors in a variety of applications. With a 3P configuration and a current rating of 0.10-16 A, this thermal magnetic circuit breaker offers both thermal and magnetic protection to ensure the safety and longevity of your motors.
Key Features:
Current Range: With a current rating of 0.10-16 A, it's suitable for a wide range of motor sizes.
Thermal Magnetic Protection: The TeSys GV2 provides both thermal and magnetic protection, making it a versatile choice for motor protection.
Screw Clamp Terminals: Screw clamp terminals ensure secure and reliable connections, simplifying installation.
Compact Design: Its compact size allows for easy integration into various electrical panels and enclosures.
Reliable Performance: Schneider Electric is known for its quality and reliability, ensuring consistent performance in demanding conditions.
Technical Specifications:
Configuration: 3P (3 Poles)
Current Rating: 0.10-16 A
Protection Type: Thermal Magnetic
Specifications
| Main | |
| Range | TeSys Deca |
| Product name | TeSys GV2 |
| TeSys Deca | |
| Product or component type | Motor circuit breaker |
| device short name | GV2P |
| Device application | Motor protection |
| Trip unit technology | Thermal-magnetic |
| Complementary | |
| Poles description | 3P |
| Network type | AC |
| Utilisation category | Category A conforming to IEC 60947-2 |
| AC-3 conforming to IEC 60947-4-1 | |
| Network frequency | 50/60 Hz conforming to IEC 60947-4-1 |
| Fixing mode | 35 mm symmetrical DIN rail: clipped |
| Panel: screwed (with 2 x M4 screws) | |
| Breaking capacity | 100 kA Icu at 230/240 V AC 50/60 Hz conforming to IEC 60947-2 |
| 100 kA Icu at 400/415 V AC 50/60 Hz conforming to IEC 60947-2 | |
| 100 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2 | |
| 100 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2 | |
| 100 kA Icu at 690 V AC 50/60 Hz conforming to IEC 60947-2 | |
| [Ics] rated service short-circuit breaking capacity | 100 % at 230/240 V AC 50/60 Hz conforming to IEC 60947-2 |
| 100 % at 400/415 V AC 50/60 Hz conforming to IEC 60947-2 | |
| 100 % at 440 V AC 50/60 Hz conforming to IEC 60947-2 | |
| 100 % at 500 V AC 50/60 Hz conforming to IEC 60947-2 | |
| 100 % at 690 V AC 50/60 Hz conforming to IEC 60947-2 | |
| control type | Rotary handle |
| [In] rated current | 0.16 A |
| Thermal protection adjustment range | 0.1…0.16 A conforming to IEC 60947-4-1 |
| Magnetic tripping current | 1.5 A |
| [Ith] conventional free air thermal current | 0.16 A conforming to IEC 60947-4-1 |
| [Ue] rated operational voltage | 690 V AC 50/60 Hz conforming to IEC 60947-2 |
| [Ui] rated insulation voltage | 690 V AC 50/60 Hz conforming to IEC 60947-2 |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to IEC 60947-2 |
| Phase failure sensitivity | Yes conforming to IEC 60947-4-1 |
| Suitability for isolation | Yes conforming to IEC 60947-1 § 7-1-6 |
| Power dissipation per pole | 2.5 W |
| Mechanical durability | 100000 cycles |
| Electrical durability | 100000 cycles for AC-3 at 415 V In |
| Rated duty | Continuous conforming to IEC 60947-4-1 |
| Tightening torque | 1.7 N.m - on screw clamp terminal |
| Width | 45 mm |
| height | 89 mm |
| Depth | 97 mm |
| Colour | Dark grey |
| Environment | |
| standards | EN/IEC 60947-2 |
| EN/IEC 60947-4-1 | |
| product certifications | CCC |
| UL | |
| CSA | |
| EAC | |
| ATEX | |
| LROS (Lloyds register of shipping) | |
| BV | |
| RINA | |
| DNV-GL | |
| UKCA | |
| IK degree of protection | IK04 |
| IP degree of protection | IP20 conforming to IEC 60529 |
| Climatic withstand | Conforming to IACS E10 |
| Ambient air temperature for storage | -40…80 °C |
| Fire resistance | 960 °C conforming to IEC 60695-2-11 |
| Ambient air temperature for operation | -20…60 °C |
| Mechanical robustness | Shocks: 30 Gn for 11 ms |
| Vibrations: 5 Gn, 5...150 Hz | |
| Operating altitude | 2000 m |
| Weight | 0.268000 |
|---|---|
| Brand | Schneider Electric |
| Model | GV2P01 |
| Width [cm] | 4.5 |
| Height [cm] | 8.9 |
| Range | GV |
| Family | PPCTR |
