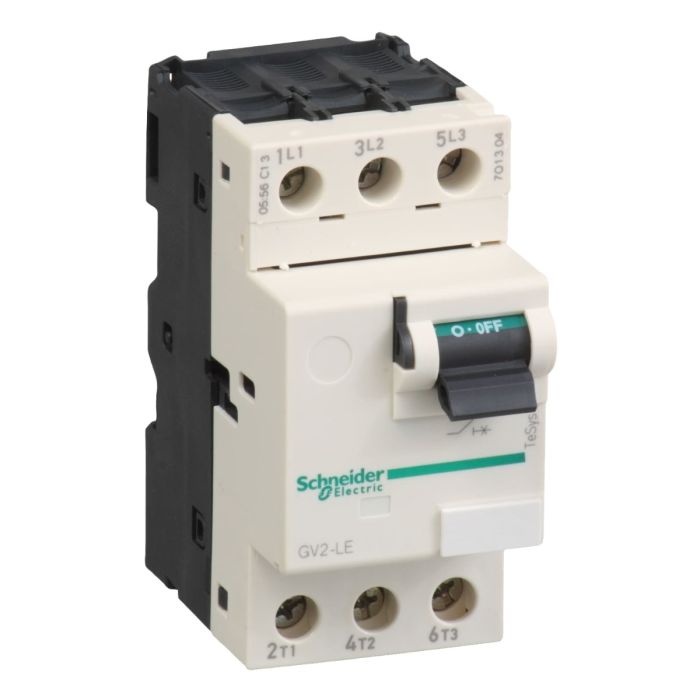

Schneider Electric TeSys GV2 Motor Circuit Breaker, 3P, 1.6A, Magnetic, Toggle Control, Screw Clamp Terminals
Range of product: TeSys Deca
Product type: Motor circuit breaker
Poles: 3P
Device application: Motor protection
The GV2LE06 TeSys GV2 Motor Circuit Breaker is a vital component for motor protection and control in industrial environments. With three poles and a current rating of 1.6A, this circuit breaker provides versatile protection for motors of various sizes. It features a magnetic trip unit for reliable disconnection during overloads or short-circuit conditions and secure screw clamp terminals for dependable electrical connections.
Key Features:
Motor Protection: Engineered to safeguard motors against overloads and short-circuit conditions, the TeSys GV2 Motor Circuit Breaker ensures the longevity and reliability of your electrical systems.
Three Poles: Equipped with three poles, this circuit breaker offers enhanced protection for a wide range of motor sizes, making it suitable for diverse industrial applications.
Magnetic Trip Unit: The magnetic trip unit ensures consistent disconnection in the presence of overloads and short circuits, preventing equipment damage.
Toggle Control: The toggle control provides easy manual operation and control of the circuit breaker.
Screw Clamp Terminals: Secure screw clamp terminals guarantee dependable electrical connections, reducing the need for frequent maintenance.
Technical Specifications:
Product Type: Motor Circuit Breaker
Poles: 3P (Three Poles)
Current Rating: 1.6A
Trip Unit: Magnetic
Terminals: Screw Clamp Terminals
Specifications
| Main | |
| Range | TeSys Deca |
| Product name | TeSys GV2 |
| Product or component type | Motor circuit breaker |
| device short name | GV2LE |
| Device application | Motor protection |
| Trip unit technology | Magnetic |
| Complementary | |
| Poles description | 3P |
| Network type | AC |
| Utilisation category | Category A conforming to IEC 60947-2 |
| AC-3 conforming to IEC 60947-4-1 | |
| Network frequency | 50/60 Hz conforming to IEC 60947-2 |
| Fixing mode | 35 mm symmetrical DIN rail: clipped |
| Panel: screwed (with adaptor plate) | |
| Motor power kW | 0.55 kW at 400/415 V AC 50/60 Hz |
| 0.55 kW at 500 V AC 50/60 Hz | |
| 0.75 kW at 500 V AC 50/60 Hz | |
| 1.1 kW at 690 V AC 50/60 Hz | |
| Breaking capacity | 100 kA Icu at 230/240 V AC 50/60 Hz conforming to IEC 60947-2 |
| 100 kA Icu at 400/415 V AC 50/60 Hz conforming to IEC 60947-2 | |
| 100 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2 | |
| 100 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2 | |
| 100 kA Icu at 690 V AC 50/60 Hz conforming to IEC 60947-2 | |
| [Ics] rated service short-circuit breaking capacity | 100 % at 230/240 V AC 50/60 Hz conforming to IEC 60947-2 |
| 100 % at 400/415 V AC 50/60 Hz conforming to IEC 60947-2 | |
| 100 % at 440 V AC 50/60 Hz conforming to IEC 60947-2 | |
| 100 % at 500 V AC 50/60 Hz conforming to IEC 60947-2 | |
| 100 % at 690 V AC 50/60 Hz conforming to IEC 60947-2 | |
| control type | Toggle |
| [In] rated current | 1.6 A |
| Magnetic tripping current | 22.5 A |
| [Ith] conventional free air thermal current | 1.6 A conforming to IEC 60947-4-1 |
| [Ue] rated operational voltage | 690 V AC 50/60 Hz conforming to IEC 60947-2 |
| [Ui] rated insulation voltage | 690 V AC 50/60 Hz conforming to IEC 60947-2 |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to IEC 60947-2 |
| Suitability for isolation | Yes conforming to IEC 60947-1 § 7-1-6 |
| Power dissipation per pole | 1.8 W |
| Mechanical durability | 100000 cycles |
| Electrical durability | 100000 cycles for AC-3 at 415 V In |
| Rated duty | Continuous conforming to IEC 60947-4-1 |
| Tightening torque | 1.7 N.m - on screw clamp terminal |
| Width | 45 mm |
| height | 89 mm |
| Depth | 78.5 mm |
| Net weight | 0.33 kg |
| Colour | Dark grey |
| Environment | |
| standards | EN/IEC 60947-2 |
| EN/IEC 60947-4-1 | |
| CSA C22.2 No 60947-4-1 | |
| product certifications | CCC |
| UL | |
| CSA | |
| EAC | |
| LROS (Lloyds register of shipping) | |
| BV | |
| RINA | |
| DNV-GL | |
| UKCA | |
| IECEE CB Scheme | |
| IK degree of protection | IK04 |
| IP degree of protection | IP20 conforming to IEC 60529 |
| Climatic withstand | Conforming to IACS E10 |
| Ambient air temperature for storage | -40…80 °C |
| Fire resistance | 960 °C conforming to IEC 60695-2-11 |
| Ambient air temperature for operation | -20…60 °C |
| Mechanical robustness | Shocks: 30 Gn for 11 ms |
| Vibrations: 5 Gn, 5...150 Hz | |
| Operating altitude | 2000 m |
| Weight | 0.330000 |
|---|---|
| Brand | Schneider Electric |
| Model | GV2LE06 |
| Width [cm] | 4.5 |
| Height [cm] | 8.9 |
| Range | GV |
| Family | PPCTR |
