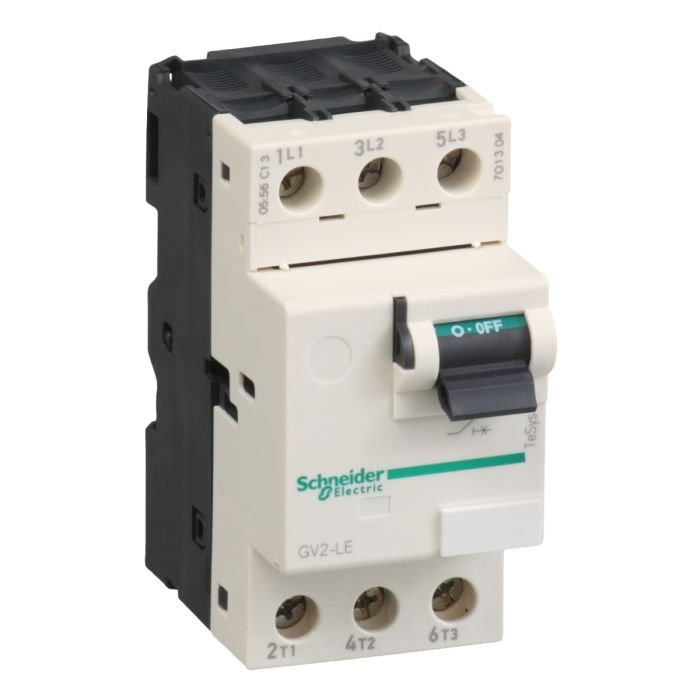

Schneider Electric TeSys GV2 Motor Circuit Breaker, 3P, 2.5A, Magnetic, Toggle Control, Screw Clamp Terminals
Range of product: TeSys Deca
Product type: Motor circuit breaker
Poles: 3P
Device application: Motor protection
The GV2LE07 TeSys GV2 Motor Circuit Breaker is an essential component for motor protection and control in industrial applications. Featuring three poles and a current rating of 2.5A, this circuit breaker is designed to provide reliable protection for motors in various low-current applications. It is equipped with a toggle control for easy manual operation and ensures secure electrical connections with its screw clamp terminals.
Key Features:
Motor Protection: Engineered to safeguard motors against overloads and short-circuit electrical disruptions, ensuring the longevity and dependability of your electrical systems.
Three Poles: With three poles, this circuit breaker offers enhanced protection for low-current applications.
Current Rating: With a capacity of 2.5A, this breaker is suitable for motors that require low current.
Toggle Control: Includes a toggle control for user-friendly manual operation.
Screw Clamp Terminals: Guarantee secure and reliable electrical connections, reducing the need for frequent maintenance.
Technical Specifications:
Product Type: Motor Circuit Breaker
Poles: 3P (Three Poles)
Current Rating: 2.5A
Tripping Unit: Magnetic
Terminals: Screw Clamp
| Specifications | |
Main | |
| Range | TeSys Deca |
| Product name | TeSys GV2 |
| TeSys Deca | |
| Product or component type | Motor circuit breaker |
| device short name | GV2ME |
| Device application | Motor protection |
| Trip unit technology | Thermal-magnetic |
| Complementary | |
| Poles description | 3P |
| Network type | AC |
| Utilisation category | Category A conforming to IEC 60947-2 |
| AC-3 conforming to IEC 60947-4-1 | |
| Network frequency | 50/60 Hz conforming to IEC 60947-4-1 |
| Fixing mode | 35 mm symmetrical DIN rail: clipped |
| Panel: screwed (with adaptor plate) | |
| Motor power kW | 15 kW at 400/415 V AC 50/60 Hz |
| 18.5 kW at 500 V AC 50/60 Hz | |
| 22 kW at 690 V AC 50/60 Hz | |
| Breaking capacity | 50 kA Icu at 230/240 V AC 50/60 Hz conforming to IEC 60947-2 |
| 10 kA Icu at 400/415 V AC 50/60 Hz conforming to IEC 60947-2 | |
| 6 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2 | |
| 4 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2 | |
| 3 kA Icu at 690 V AC 50/60 Hz conforming to IEC 60947-2 | |
| [Ics] rated service short-circuit breaking capacity | 100 % at 230/240 V AC 50/60 Hz conforming to IEC 60947-2 |
| 50 % at 400/415 V AC 50/60 Hz conforming to IEC 60947-2 | |
| 50 % at 440 V AC 50/60 Hz conforming to IEC 60947-2 | |
| 75 % at 500 V AC 50/60 Hz conforming to IEC 60947-2 | |
| 75 % at 690 V AC 50/60 Hz conforming to IEC 60947-2 | |
| control type | Push-button |
| [In] rated current | 32 A |
| Thermal protection adjustment range | 24…32 A conforming to IEC 60947-4-1 |
| Weight | 0.330000 |
|---|---|
| Brand | Schneider Electric |
| Model | GV2LE07 |
| Width [cm] | 4.5 |
| Height [cm] | 8.9 |
| Range | GV |
| Family | PPCTR |
