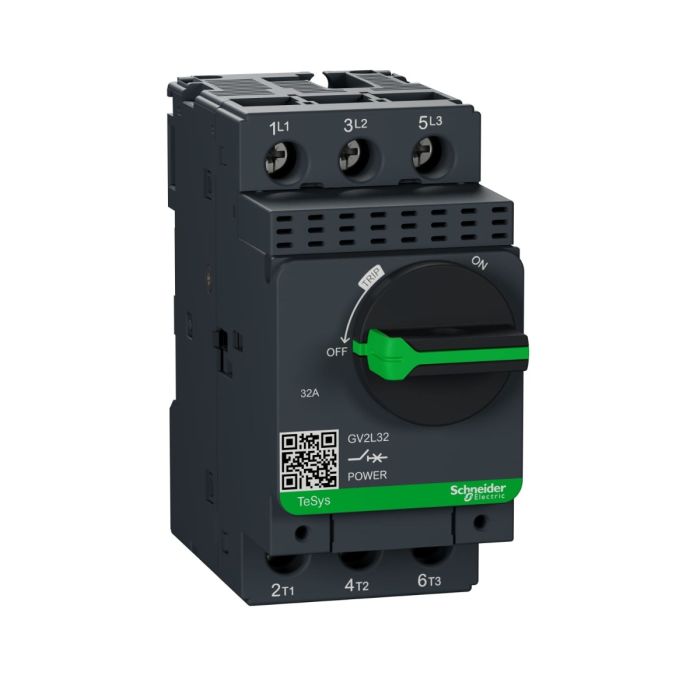

Schneider Electric TeSys GV2 Motor Circuit Breaker, 3 Poles, 32 Amps, Magnetic, Rotary Handle, Screw Clamp Terminals
In stock
SKU
GV2L32
Special Price EGP 6,901 Regular Price EGP 12,779
Schneider Electric TeSys GV2 Motor Circuit Breaker, 3 Poles, 32 Amps, Magnetic, Rotary Handle, Screw Clamp Terminals is available to buy in increments of 1
Quick Overview
Range of product: TeSys Deca
Product type: Motor circuit breaker
Device application: Motor protection
Poles: 3P
منتجات أخرى قد تعجبك:
Schneider Electric TeSys GV2 Motor Circuit Breaker, 3P, 10A, Magnetic, Toggle Control, Screw Clamp TerminalsSpecial Price EGP 2,950 Regular Price EGP 5,463
Schneider Electric TeSys GV2 Motor Circuit Breaker, 3P, 1.6A, Magnetic, Toggle Control, Screw Clamp TerminalsSpecial Price EGP 2,926 Regular Price EGP 5,418
Schneider Electric Undervoltage Release (MN), TeSys GV2-GV3,380-400V AC 50Hz / 440V AC 60HzSpecial Price EGP 1,898 Regular Price EGP 3,516
Schneider Electric TeSys GV2/GV3 Auxiliary Contact, 2 NO (Normally Open)Special Price EGP 641 Regular Price EGP 1,187
Schneider Electric TeSys GV2/GV3 Auxiliary Contact - 1 NO (Normally Open) + 1 NO (Normally Open) FaultSpecial Price EGP 983 Regular Price EGP 1,821
Schneider Electric TeSys GV2/GV3 Auxiliary Contact - 1 NO (Normally Open) + 1 NC (Normally Closed)Special Price EGP 641 Regular Price EGP 1,187
Schneider Electric TeSys GV2/GV3 Auxiliary Contact - 1 NO (Normally Open) / NC (Normally Closed)Special Price EGP 607 Regular Price EGP 1,124
Schneider Electric TeSys GV2 Motor Circuit Breaker, 3P, 24-32A, Thermal-Magnetic, Screw Clamp TerminalsSpecial Price EGP 5,614 Regular Price EGP 10,395
Schneider Electric TeSys GV2 Motor Circuit Breaker, 3P, 2.5A, Magnetic, Toggle Control, Screw Clamp TerminalsSpecial Price EGP 2,926 Regular Price EGP 5,418
Schneider Electric TeSys GV2 Motor Circuit Breaker, 3P, 1A, Magnetic, Toggle Control, Screw Clamp TerminalsSpecial Price EGP 2,869 Regular Price EGP 5,312
Schneider Electric Motor circuit breaker GV2ME20, TeSys GV2, 3P, 13-18 A, thermal magnetic, screw clamp terminalsSpecial Price EGP 2,950 Regular Price EGP 5,463
Schneider Electric Tesys GV2 Enclosure for Tesys GV2ME, IP41Special Price EGP 749 Regular Price EGP 1,388
Schneider Electric Motor circuit breaker GV2ME05, TeSys GV2, 3P, 0.63-1 A, thermal magnetic, screw clamp terminalsSpecial Price EGP 2,826 Regular Price EGP 5,233
Schneider Electric TeSys GV2 Motor Circuit Breaker, 3P, 0.63A, Magnetic, Toggle Control, Screw Clamp TerminalsSpecial Price EGP 2,869 Regular Price EGP 5,312
Schneider Electric Motor Circuit Breaker GV2P04, TeSys GV2, 3P, 0.4-0.63 A, thermal magnetic, screw clamp terminalsSpecial Price EGP 3,787 Regular Price EGP 7,012
Schneider Electric Motor circuit breaker GV2ME04, TeSys GV2, 3P, 0.4-0.63 A, thermal magnetic, screw clamp terminalsSpecial Price EGP 2,706 Regular Price EGP 5,012
Schneider Electric TeSys GV2 Motor Circuit Breaker, 3P, 0.10-16 A, Thermal Magnetic, Screw Clamp TerminalsSpecial Price EGP 3,787 Regular Price EGP 7,012
Schneider Electric TeSys GV2 Motor Circuit Breaker, 3 Poles, 32 Amps, Magnetic, Toggle Control, Screw Clamp TerminalsSpecial Price EGP 6,162 Regular Price EGP 11,411
Schneider Electric TeSys GV2 Motor Circuit Breaker, 3 Poles, 25 Amps, Magnetic, Toggle Control, Screw Clamp TerminalsSpecial Price EGP 3,767 Regular Price EGP 6,975
Schneider Electric TeSys GV2 GV2ME10 Motor Circuit Breaker, 3 Poles, 4.6-3 Amps, Magnetic, Screw Clamp TerminalsSpecial Price EGP 2,826 Regular Price EGP 5,233
The GV2L32 TeSys GV2 Motor Circuit Breaker is a fundamental component designed to protect and control motors in various industrial applications. Featuring three poles and a 32-amp current rating, it ensures reliable motor protection against overload and short-circuit conditions. The magnetic trip unit offers precise and effective protection, while the rotary handle and screw clamp terminals provide ease of operation and secure electrical connections.
Specifications
| Main | |
| Range | TeSys Deca |
| Product name | TeSys GV2 |
| TeSys Deca | |
| Product or component type | Motor circuit breaker |
| Device short name | GV2L |
| Device application | Motor protection |
| Trip unit technology | Magnetic |
| Complementary | |
| Poles description | 3P |
| Network type | AC |
| Utilisation category | Category A conforming to IEC 60947-2 |
| AC-3 conforming to IEC 60947-4-1 | |
| Network frequency | 50/60 Hz conforming to IEC 60947-2 |
| Fixing mode | 35 mm symmetrical DIN rail: clipped |
| Panel: screwed (with 2 x M4 screws) | |
| Motor power kW | 15 kW at 400/415 V AC 50/60 Hz |
| 18.5 kW at 500 V AC 50/60 Hz | |
| 22 kW at 690 V AC 50/60 Hz | |
| Breaking capacity | 50 kA Icu at 230/240 V AC 50/60 Hz conforming to IEC 60947-2 |
| 50 kA Icu at 400/415 V AC 50/60 Hz conforming to IEC 60947-2 | |
| 20 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2 | |
| 10 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2 | |
| 4 kA Icu at 690 V AC 50/60 Hz conforming to IEC 60947-2 | |
| [Ics] rated service short-circuit breaking capacity | 100 % at 230/240 V AC 50/60 Hz conforming to IEC 60947-2 |
| 50 % at 400/415 V AC 50/60 Hz conforming to IEC 60947-2 | |
| 75 % at 440 V AC 50/60 Hz conforming to IEC 60947-2 | |
| 75 % at 500 V AC 50/60 Hz conforming to IEC 60947-2 | |
| 100 % at 690 V AC 50/60 Hz conforming to IEC 60947-2 | |
| control type | Rotary handle |
| [In] rated current | 32 A |
| Magnetic tripping current | 416 A |
| [Ith] conventional free air thermal current | 32 A conforming to IEC 60947-4-1 |
| [Ue] rated operational voltage | 690 V AC 50/60 Hz conforming to IEC 60947-2 |
| [Ui] rated insulation voltage | 690 V AC 50/60 Hz conforming to IEC 60947-2 |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to IEC 60947-2 |
| Suitability for isolation | Yes conforming to IEC 60947-1 § 7-1-6 |
| Power dissipation per pole | 1.8 W |
| Mechanical durability | 100000 cycles |
| Electrical durability | 100000 cycles for AC-3 at 415 V In |
| Rated duty | Continuous conforming to IEC 60947-4-1 |
| Tightening torque | 1.7 N.m - on screw clamp terminal |
| Width | 45 mm |
| height | 89 mm |
| Depth | 97 mm |
| Net weight | 0.33 kg |
| Colour | Dark grey |
| Environment | |
| standards | EN/IEC 60947-4-1 |
| UL 60947-4-1 | |
| CSA C22.2 No 60947-4-1 | |
| product certifications | CCC |
| UL | |
| CSA | |
| EAC | |
| LROS (Lloyds register of shipping) | |
| BV | |
| RINA | |
| DNV-GL | |
| UKCA | |
| IECEE CB Scheme | |
| IK degree of protection | IK04 |
| IP degree of protection | IP20 conforming to IEC 60529 |
| Climatic withstand | Conforming to IACS E10 |
| Ambient air temperature for storage | -40…80 °C |
| Fire resistance | 960 °C conforming to IEC 60695-2-11 |
| Ambient air temperature for operation | -20…60 °C |
| Mechanical robustness | Shocks: 30 Gn for 11 ms |
| Vibrations: 5 Gn, 5...150 Hz | |
| Operating altitude | 2000 m |
| Weight | 0.330000 |
|---|---|
| Brand | Schneider Electric |
| Model | GV2L32 |
| Color | Black |
| Device Application | Motor protection |
| Width [cm] | 4.5 |
| Height [cm] | 8.9 |
| Range | GV |
| Family | PPCTR |
| Type | Motor Circuit Breaker |
| Poles | 3P |
| [In] Rated Current | 32 A |
| Voltage ~ Frequency | 50-60 Hz |
| IP Degree of Protection | IP20 |
| IK Degree of Protection | IK04 |
