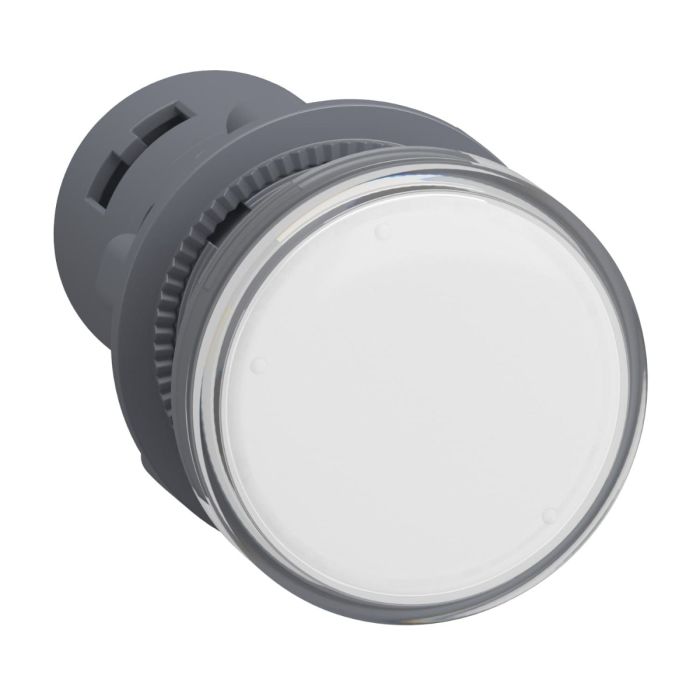

Schneider Electric, Medium XA2 Pilot Light,220v AC,white
Product Type: Monolithic Pilot Light
Material: Plastic
Diameter: 22mm
Light Source: Integral LED
Terminal Type: Screw Clamp
The XA2EVM1LC Monolithic Pilot Light from the Easy Harmony XA2 series is a reliable indicator designed for various applications. Constructed with durable plastic material in a white color, it provides a clear and distinct visual signal. The 22mm diameter makes it suitable for standard panel cutouts.
Featuring an integral LED light source, this pilot light ensures energy-efficient and long-lasting illumination. The screw clamp terminals facilitate easy and secure electrical connections. With a voltage rating of 220-230V AC, it is suitable for a wide range of electrical systems. The anti-interference feature enhances its performance in diverse environments.
Key Features:
Monolithic Pilot Light from Easy Harmony XA2 Series
Durable Plastic Construction in White
Diameter: 22mm
Integral LED Light Source
Screw Clamp Terminals for Easy Connections
Voltage Rating: 220-230V AC
Anti-Interference Feature
Suitable for Various Applications
| Specifications | |
Main | |
| Range of product | Easy Harmony XA2 |
| Product or component type | Monolithic pilot light |
| Device short name | XA2 |
| Mounting diameter | 22.5 mm |
| Shape of signaling unit head | Round |
| Cap/operator or lens colour | White |
| Light source | LED |
| Bulb base | Integral LED |
| [Us] rated supply voltage | 220...230 V AC 50/60 Hz |
| Complementary | |
| Terminals description ISO n°1 | (X1-X2)PL |
| Device mounting | Fixing hole 22.3 +0.4/0 conforming to IEC 60947-5-1 |
| Fixing center | >= 30 x 40 mm (support panel) metal - thickness: 1…6 mm |
| >= 30 x 40 mm (support panel) plastic - thickness: 2…6 mm | |
| Fixing mode | Fixing nut beneath head recommended torque: 2.2 N.m (+/- 0.2 N.m) |
| Marking | CCC |
| CE | |
| [Us] rated supply voltage | 220...230 V |
| Connections - terminals | Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to IEC 60947-1 |
| Screw clamp terminals, 1 x 0.5...1 x 2.5 mm² without cable end conforming to IEC 60947-1 | |
| Shape of screw head | Cross compatible with Philips No 2 screwdriver |
| Slotted compatible with flat Ø 4 mm screwdriver | |
| Slotted compatible with flat Ø 5.5 mm screwdriver | |
| [Ui] rated insulation voltage | 400 V (pollution degree 3) conforming to IEC 60947-1 |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to IEC 60947-1 |
| Signalling type | Steady |
| Supply voltage limits | 0.8…1.2 V AC |
| Current consumption | <= 20 mA |
| Service life | 40000 h at rated voltage and 25 °C |
| height | 29 mm |
| Width | 29 mm |
| Depth | 53 mm |
| Net weight | 0.02 kg |
| Environment | |
| Ambient air temperature for storage | -40…70 °C |
| Ambient air temperature for operation | -25…70 °C |
| Overvoltage category | Class I conforming to IEC 536 |
| IP degree of protection | IP65 conforming to IEC 60529 |
| IK degree of protection | IK05 |
| standards | GB 14048.5 |
| IEC 60947-5-1 | |
| IEC 60947-1 | |
| GB 14048.1 | |
| IEC 60529 | |
| IEC 50102 | |
| product certifications | CE |
| CCC | |
| Vibration resistance | 5 gn (f= 12…500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 30 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| Weight | 0.021000 |
|---|---|
| Brand | Schneider Electric |
| Model | XA2EVM1LC |
| Color | White |
| Depth [cm] | 5.3 |
| Width [cm] | 2.9 |
| Height [cm] | 2.9 |
| Range | Harmony XA2 |
| Family | IDSIG |
