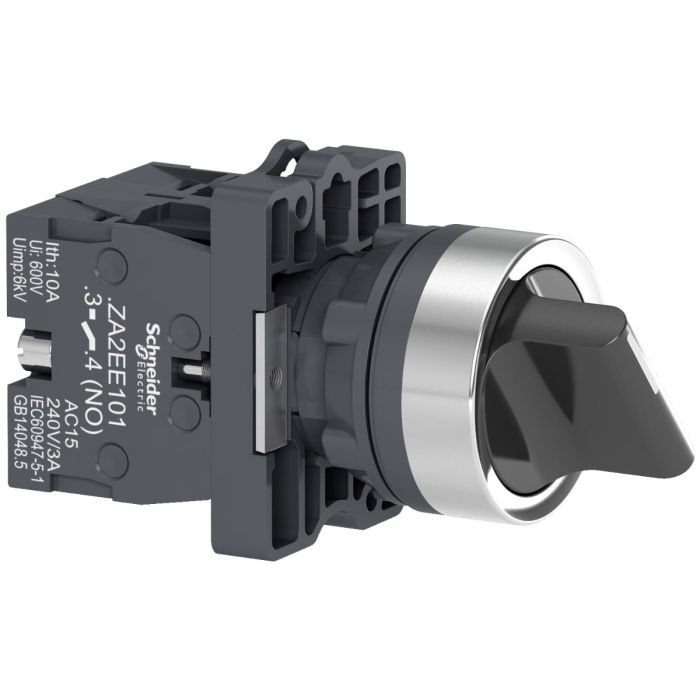

Schneider Electric 22mm Selector Switch with Standard Handle, 3 Positions, 2NO (XA2ED53)

In stock
SKU
XA2ED53
Special Price EGP 181 Regular Price EGP 312
36.2 Reward Points will be used to purchase this product
Schneider Electric 22mm Selector Switch with Standard Handle, 3 Positions, 2NO (XA2ED53) is available to buy in increments of 1
Quick Overview

Range of product: Easy Harmony XA2
Product type: Complete selector switch
Type of operator : Spring return

The Schneider Electric XA2ED53 is a 22mm selector switch with a standard handle. It features three positions and is equipped with two normally open (2NO) contacts. This selector switch is designed for use in control panels, industrial machinery, and electrical circuits where the selection of different operational modes or positions is required. It provides a reliable and durable solution for controlling various functions within your electrical system.



Key Features:

22mm Selector Switch: Designed to fit into standard 22mm panel cutouts.

Standard Handle: The selector switch features a standard handle for easy operation.

Three Positions: It offers three selectable positions for versatile control.

2NO Contacts: Equipped with two normally open contacts for electrical connections.

Durable Build: Built to withstand industrial environments and ensure long-lasting performance.

Versatile Applications: Suitable for use in control panels, machinery, and electrical systems.

Specifications

Main


Range of productEasy Harmony XA2
Product or component typeComplete selector switch
Device short nameXA2
bezel materialPlastic
Mounting diameter22.5 mm
Complementary
Sale per indivisible quantity1
Fixing center>= 30 x 40 mm (panel) - thickness: 1…5 mm
Fixing modeFixing nut: 2…2.4 N.m
Shape of signaling unit headRound
Type of operatorSpring return
Operator profileBlack standard handle
Operator position information3 positions 45°
Contacts type and composition2 NO
contact operationSlow-break
Mechanical durability300000 cycles
Connections - terminals, clamping capacity: <= 2 x 1.5 mm²
 , clamping capacity: <= 1 x 2.5 mm²
 , clamping capacity: >= 1 x 0.5 mm²
 Faston terminals, connection size: 6.3 mm
Tightening torque0.8 N.m
Short-circuit protection10 A fuse type gL conforming to IEC 60269-1
[Ith] conventional free air thermal current10 A (screw-clamp terminals)
[Ui] rated insulation voltage600 V conforming to IEC 60947-1
[Uimp] rated impulse withstand voltage6 kV conforming to IEC 60947-1
[Ie] rated operational current3 A at 240 V, AC-15, A600
 0.27 A at 250 V, DC-13, Q600
Electrical durability500000 cycles, AC-15, 3 A at 230 V, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-4
 500000 cycles, DC-13, 0.2 A at 110 V, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-4
Electrical reliabilityΛ < 10exp(-8) at 24 V
Width30 mm
height42 mm
Depth68.2 mm
Net weight0.054 kg
Type of operatorSpring return
Operator profileStandard handle
Head typeStandard
Cap/operator or lens colourBlack
Environment
Protective treatmentTC
Ambient air temperature for storage-40…70 °C
Ambient air temperature for operation-25…55 °C
Overvoltage categoryClass I conforming to IEC 536
IP degree of protectionIP65 conforming to IEC 60529
IK degree of protectionIK06 conforming to IEC 60529
standardsGB 14048.1
 IEC 60947-1
 GB 14048.5
More Information
Weight0.054000
BrandSchneider Electric
ModelXA2ED53
Width [cm]3
Height [cm]4.2
RangeHarmony XA2
FamilyIDSIG
