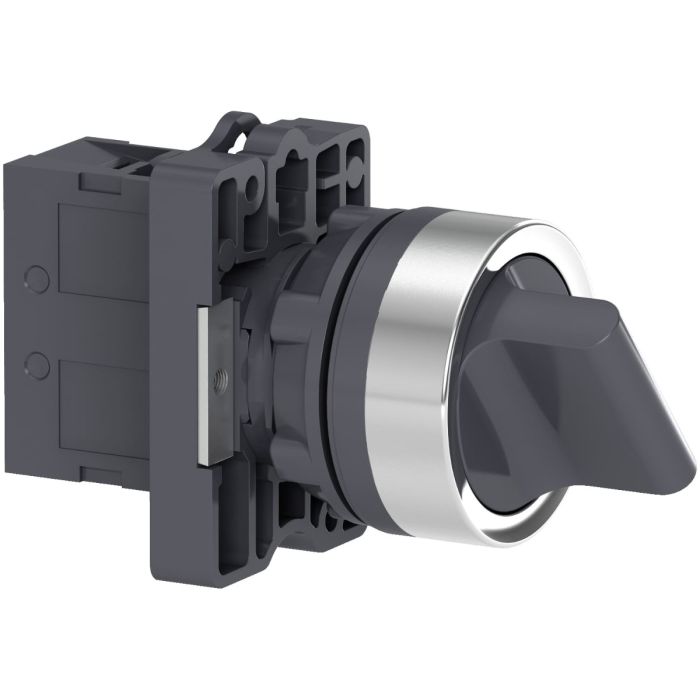

Schneider Electric 22mm Selector Switch with Standard Handle, 2 Positions, 1NO
In stock
SKU
XA2ED21
Special Price EGP 121 Regular Price EGP 209
Schneider Electric 22mm Selector Switch with Standard Handle, 2 Positions, 1NO is available to buy in increments of 1
Quick Overview
Range: Easy Harmony XA2
Product type: Complete selector switch
Type of operator : Stay put
Shape of signaling unit head: Round
You May Also Like:
Schneider Electric 22mm Round Red Pushbutton, Flush, Spring Return, 1 Normally Closed (1NC) ContactSpecial Price EGP 95 Regular Price EGP 164
Schneider Electric 22mm Selector Switch with Standard Handle, 3 Positions, 2NO (XA2ED53)Special Price EGP 181 Regular Price EGP 312
Schneider Electric Selector Switch, Ø 22, Standard Handle, 2 Positions, 1NO + 1NCSpecial Price EGP 147 Regular Price EGP 253
Schneider Electric Key Selector Switch Lock Model XA2EG03, 22mm, Three-Position Stay-Put, Double-Throw (2NO)Special Price EGP 353 Regular Price EGP 608
Schneider Electric Complete selector switch, Easy Harmony XA2, plastic, 22mm, key 455, 2 positions, stay put, 2NOSpecial Price EGP 309 Regular Price EGP 532
Schneider Electric 22mm Round Green Pushbutton, Flush, Spring Return, 1 Normally Open (1NO) ContactSpecial Price EGP 95 Regular Price EGP 164
Schneider Electric 22mm Selector Switch with Standard Handle, 3 Positions, 2NOSpecial Price EGP 181 Regular Price EGP 312
Schneider Electric 3 hole 22 mm Ø IP65 protection plastic white empty control statioSpecial Price EGP 325 Regular Price EGP 560
Schneider Electric Pilot Light, Green Plastic, Ø 22 mm, with Integral LED, 220V DC, Anti-InterferenceSpecial Price EGP 105 Regular Price EGP 181
Schneider Electric Emergency Switching Off Push Button, Ø22 Non-Trigger Turn Release, 1NCSpecial Price EGP 148 Regular Price EGP 254
Schneider Electric Control Station, 2-Button, Emergency Stop, Key Release, 1NO/1NC, IP66Special Price EGP 198 Regular Price EGP 342
Schneider Electric Pilot Light, Red Plastic, Ø 22 mm, with Integral LED, 220-230V AC, Anti-InterferenceSpecial Price EGP 105 Regular Price EGP 181
Schneider Electric Red Flush Complete Illuminated Pushbutton Ø22 Flush 24V AC/DC 1NCSpecial Price EGP 178 Regular Price EGP 307
Schneider Electric Round Red Pushbutton Ø22, Push-PushSpecial Price EGP 130 Regular Price EGP 224
Schneider Electric Easy Harmony XA2E Monolithic Pilot Light, Plastic, Blue, Ø22 mm, Integral LED, Screw Clamp Terminals, 24V AC/DCSpecial Price EGP 105 Regular Price EGP 181
Schneider Electric Single Contact Block for 22mm Head, 1 Normally Open (NO) ContactSpecial Price EGP 62 Regular Price EGP 108
Schneider Electric Round Green Pushbutton, Ø 22, Push-Push, 1NOSpecial Price EGP 130 Regular Price EGP 224
Schneider Electric Single Contact Block for 22mm Head, 1 Normally Closed (NC) ContactSpecial Price EGP 62 Regular Price EGP 108
Schneider Electric Pilot Light, Plastic, Blue, Ø 22 mm, with Integral LED, 220-230V AC, Anti-InterferenceSpecial Price EGP 105 Regular Price EGP 181
Schneider Electric Round Pilot Light, Integral LED, 220V AC, Screw Clamp TerminalsSpecial Price EGP 105 Regular Price EGP 181
This product is part of the Easy Harmony XA2 range, an offer of Ø 22mm plastic pushbuttons, switches and pilot lights. This selector switch comes with a standard handle. It has 2 operating positions and operates with a stay-put mechanism. This selector switch provides a versatile interface for controlling machines. It has 1 NO contact with slow-break operation. This is a plastic switch with a metallic-look ring design bezel. It is an IP54 rated product and comes with CE, CCC and EAC certification conforming to GB 14048.1, IEC 60947-1, GB 14048.5 and IEC 60947-5-1 standards . It is easily installed into a standard 22mm diameter panel cut-outs and connected to control circuits with screw-clamp connections. It is impact resistant, dust resistant, water resistant and vibration resistant making it suitable for operation in harsh environments.
Specifications:
| Main | |
| Range of product | Easy Harmony XA2 |
| Product or component type | Complete selector switch |
| Device short name | XA2 |
| Device presentation | Complete product |
| Component name | XA2E |
| Bezel material | Plastic |
| Mounting diameter | 22.5 mm |
| Complementary | |
| Sale per indivisible quantity | 1 |
| Fixing center | >= 30 x 40 mm (panel) - thickness: 1…5 mm |
| Fixing mode | Fixing nut: 2…2.4 N.m |
| Shape of signaling unit head | Round |
| Type of operator | stay put |
| Operator profile | Black standard handle |
| Operator position information | 2 positions 90° |
| Contacts type and composition | 1 NO |
| Contact operation | Slow-break |
| Mechanical durability | 300000 cycles |
| Connections - terminals | , clamping capacity: <= 2 x 1.5 mm² |
| , clamping capacity: <= 1 x 2.5 mm² | |
| , clamping capacity: >= 1 x 0.5 mm² | |
| Faston terminals, connection size: 6.3 mm | |
| Tightening torque | 0.8 N.m |
| Short-circuit protection | 10 A fuse type gL conforming to IEC 60269-1 |
| [Ith] conventional free air thermal current | 10 A (screw-clamp terminals) |
| [Ui] rated insulation voltage | 600 V conforming to IEC 60947-1 |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to IEC 60947-1 |
| [Ie] rated operational current | 3 A at 240 V, AC-15, A600 |
| 0.27 A at 250 V, DC-13, Q600 | |
| Electrical durability | 500000 cycles, AC-15, 3 A at 230 V, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-4 |
| 500000 cycles, DC-13, 0.2 A at 110 V, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-4 | |
| Electrical reliability | Λ < 10exp(-8) at 24 V |
| Width | 30 mm |
| Height | 42 mm |
| Depth | 68.2 mm |
| Product weight | 0.04 kg |
| Type of operator | Stay put |
| Operator profile | Standard handle |
| Head type | Standard |
| Cap/operator or lens colour | Black |
| Environment | |
| Protective treatment | TC |
| Ambient air temperature for storage | -40…70 °C |
| Ambient air temperature for operation | -25…55 °C |
| Overvoltage category | Class I conforming to IEC 536 |
| IP degree of protection | IP65 conforming to IEC 60529 |
| IK degree of protection | IK06 conforming to IEC 60529 |
| Standards | GB 14048.1 |
| IEC 60947-1 | |
| GB 14048.5 | |
| IEC 60947-5-1 | |
| Product certifications | CCC |
| CE | |
| Vibration resistance | 10 gn (f= 40…500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 120 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| Weight | 0.054000 |
|---|---|
| Brand | Schneider Electric |
| Model | XA2ED21 |
| Width [cm] | 3 |
| Height [cm] | 4.2 |
| Range | Harmony XA2 |
| Family | IDSIG |
| Type | Selector Switch |
