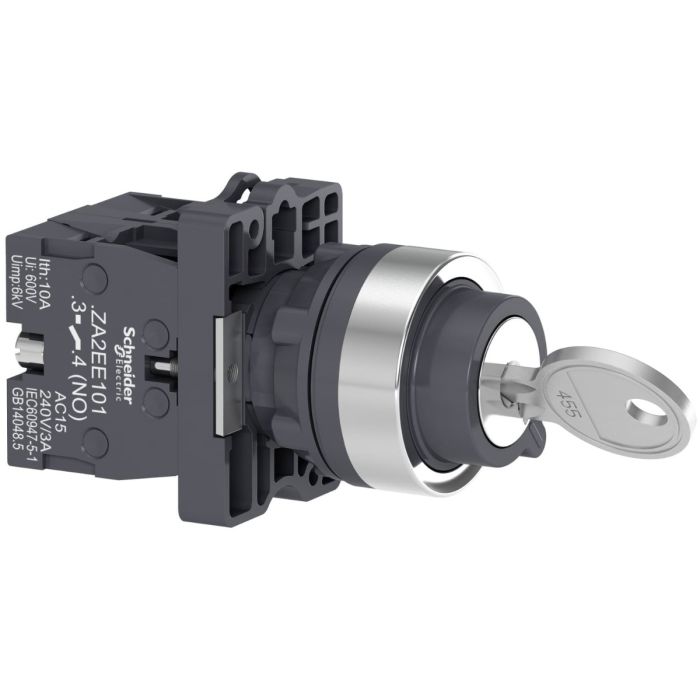

Schneider Electric Key Selector Switch Lock by Schneider Electric, Model XA2EG03, 22mm, Three-Position Stay-Put, Double-Throw (2NO)
Range of product: Easy Harmony XA2
Product type: Complete selector switch
Type of operator: Stay put
Key number: 455
The Key Selector Switch Lock by Schneider Electric, Model XA2EG03, is a part of the Harmony XA2 series, designed for use in industrial control panels and systems. It features a three-position stay-put design, meaning it can be set in one of three different positions. This switch has a double-throw configuration with two normally open (NO) ports (2NO) for electrical connections. With a 22mm size, it fits standard panel cutouts and is suitable for various industrial applications.
Key Features:
Key Selector Switch: Enables switching between three different positions to set the system mode.
Double-Throw (2NO): Equipped with two normally open (NO) ports for electrical connections.
22mm Size: Compatible with standard panel cutouts.
Reliable and Durable: Built for industrial use, ensuring dependable performance.
Versatile Application: Suitable for various industrial settings and control panels.
Specifications
| Main | |
| Range of product | Easy Harmony XA2 |
| Product or component type | Complete selector switch |
| device short name | XA2 |
| bezel material | Plastic |
| Fixing collar material | Plastic |
| Mounting diameter | 22.5 mm |
| Complementary | |
| Fixing center | >= 30 x 40 mm (panel) - thickness: 1…5 mm |
| Fixing mode | Fixing nut: 2…2.4 N.m |
| Type of operator | Stay put |
| Operator profile | Key switch |
| Operator position information | 3 positions 45° |
| Key number | 455 |
| Key withdrawal position | Left, right and center |
| Contacts type and composition | 2 NO |
| contact operation | Slow-break |
| Mechanical durability | 100000 cycles |
| Connections - terminals | Faston terminals, connection size: 6.3 mm |
| Screw clamp terminals, clamping capacity: <= 1 x 2.5 mm² | |
| Screw clamp terminals, clamping capacity: <= 2 x 1.5 mm² | |
| Screw clamp terminals, clamping capacity: >= 1 x 0.5 mm² | |
| Tightening torque | 0.8 N.m |
| Short-circuit protection | 10 A fuse type gL conforming to IEC 60269-1 |
| [Ith] conventional free air thermal current | 10:00 ص |
| [Ui] rated insulation voltage | 600 V |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to IEC 60947-1 |
| [Ie] rated operational current | 3 A at 240 V, AC-15, A600 |
| 0.27 A at 250 V, DC-13, Q600 | |
| Electrical durability | 500000 cycles, AC-15, 3 A at 230 V, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-4 |
| 500000 cycles, DC-13, 0.2 A at 110 V, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-4 | |
| Electrical reliability | Λ < 10exp(-8) at 24 V |
| Width | 30 mm |
| height | 42 mm |
| Depth | 85.7 mm |
| Net weight | 0.078 kg |
| Type of operator | Stay put |
| Operator profile | Key switch |
| Head type | Standard |
| Environment | |
| Protective treatment | TC |
| Ambient air temperature for storage | -40…70 °C |
| Ambient air temperature for operation | -20…55 °C |
| Overvoltage category | Class I conforming to IEC 536 |
| IP degree of protection | IP54 conforming to IEC 60529 |
| IK degree of protection | IK03 conforming to IEC 60529 |
| standards | GB 14048.5 |
| IEC 60947-1 | |
| IEC 60947-5-1 | |
| GB 14048.1 | |
| product certifications | CCC |
| CE | |
| Vibration resistance | 10 gn (f= 40…500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 70 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| Weight | 0.078000 |
|---|---|
| Brand | Schneider Electric |
| Model | XA2EG03 |
| Width [cm] | 3 |
| Height [cm] | 4.2 |
| Range | Harmony XA2 |
| Family | IDSIG |
