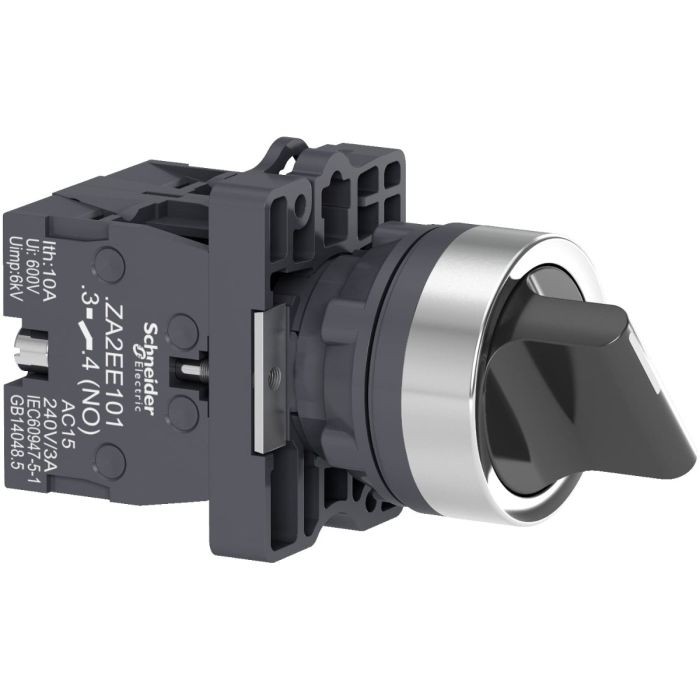

Schneider Electric 22mm Selector Switch with Standard Handle, 3 Positions, 2NO (XA2ED33)
Range of product: Easy Harmony XA2
Product type: Complete selector switch
Type of operator: Stay put
Shape of signaling unit head: Round
The Schneider Electric XA2ED33 is a 22mm selector switch with a standard handle. It features three positions and is equipped with two normally open (2NO) contacts. This selector switch is designed for use in control panels, industrial machinery, and electrical circuits where the selection of different operational modes or positions is required. It provides a reliable and durable solution for controlling various functions within your electrical system.
Key Features:
22mm Selector Switch: Designed to fit into standard 22mm panel cutouts.
Standard Handle: The selector switch features a standard handle for easy operation.
Three Positions: It offers three selectable positions for versatile control.
2NO Contacts: Equipped with two normally open contacts for electrical connections.
Durable Build: Built to withstand industrial environments and ensure long-lasting performance.
Versatile Applications: Suitable for use in control panels, machinery, and electrical systems.
| Specifications | |
Main | |
| Range of product | Easy Harmony XA2 |
| Product or component type | Complete selector switch |
| Device short name | XA2 |
| bezel material | Plastic |
| Mounting diameter | 22.5 mm |
| Complementary | |
| Sale per indivisible quantity | 1 |
| Fixing center | >= 30 x 40 mm (panel) - thickness: 1…5 mm |
| Fixing mode | Fixing nut: 2…2.4 N.m |
| Shape of signaling unit head | Round |
| Type of operator | Stay put |
| Operator profile | Black standard handle |
| Operator position information | 3 positions 45° |
| Contacts type and composition | 2 NO |
| contact operation | Slow-break |
| Mechanical durability | 300000 cycles |
| Connections - terminals | , clamping capacity: <= 2 x 1.5 mm² |
| , clamping capacity: <= 1 x 2.5 mm² | |
| , clamping capacity: >= 1 x 0.5 mm² | |
| Faston terminals, connection size: 6.3 mm | |
| Tightening torque | 0.8 N.m |
| Short-circuit protection | 10 A fuse type gL conforming to IEC 60269-1 |
| [Ith] conventional free air thermal current | 10 A (screw-clamp terminals) |
| [Ui] rated insulation voltage | 600 V conforming to IEC 60947-1 |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to IEC 60947-1 |
| [Ie] rated operational current | 3 A at 240 V, AC-15, A600 |
| 0.27 A at 250 V, DC-13, Q600 | |
| Electrical durability | 500000 cycles, AC-15, 3 A at 230 V, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-4 |
| 500000 cycles, DC-13, 0.2 A at 110 V, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-4 | |
| Electrical reliability | Λ < 10exp(-8) at 24 V |
| Width | 30 mm |
| height | 42 mm |
| Depth | 68.2 mm |
| Net weight | 0.054 kg |
| Type of operator | Stay put |
| Operator profile | Standard handle |
| Head type | Standard |
| Cap/operator or lens colour | Black |
| Environment | |
| Protective treatment | TC |
| Ambient air temperature for storage | -40…70 °C |
| Ambient air temperature for operation | -25…55 °C |
| Overvoltage category | Class I conforming to IEC 536 |
| IP degree of protection | IP65 conforming to IEC 60529 |
| IK degree of protection | IK06 conforming to IEC 60529 |
| standards | GB 14048.1 |
| GB 14048.5 | |
| IEC 60947-5-1 |
| Weight | 0.054000 |
|---|---|
| Brand | Schneider Electric |
| Model | XA2ED33 |
| Width [cm] | 3 |
| Height [cm] | 4.2 |
| Range | Harmony XA2 |
| Family | IDSIG |
