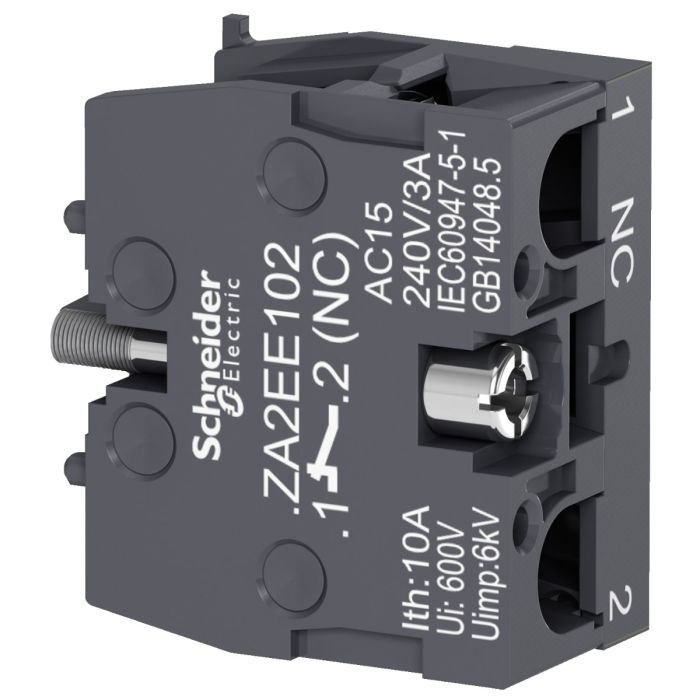

Schneider Electric Single Contact Block for 22mm Head, 1 Normally Closed (NC) Contact
Range of product: Easy Harmony XA2
Product type: Contact block
Contact operation: Slow-break
Contact block type: Single
The Single Contact Block for 22mm Head (ZA2EE102) is an important component for control and operation systems. This contact block features a single normally closed (NC) contact unit, making it suitable for applications that require a specific signal or action when pressed.
Key Features:
Durable Design: This contact block is designed with high quality for reliability and durability in industrial environments.
Single Normally Closed (NC) Contact Unit: It features a single normally closed contact unit, making it suitable for executing a specific action when the button is pressed.
Easy Installation: This contact block comes with connectors for easy installation and connection.
Technical Specifications:
Product Type: Single Contact Block
Head Diameter: 22mm
Contact Unit: 1 Normally Closed (NC) Contact Unit
Specifications
| Main | |
| Range of product | Easy Harmony XA2 |
| Product or component type | Contact block |
| Device short name | ZA2E |
| Complementary | |
| contact operation | Slow-break |
| Contact block type | Single |
| contacts usage | Standard contacts |
| Positive opening | Without |
| Mechanical durability | 1500000 cycles |
| Connections - terminals | , <= 2 x 1.5 mm² conforming to IEC 60947-1 |
| , <= 1 x 2.5 mm² conforming to IEC 60947-1 | |
| , >= 1 x 0.5 mm² conforming to IEC 60947-1 | |
| Faston terminals, connection size: 6.3 mm conforming to IEC 60947-1 | |
| Tightening torque | 0.8 N.m |
| Contacts material | Silver alloy (Ag/Ni) |
| Short-circuit protection | 10 A fuse type gL conforming to IEC 60269-1 |
| [Ith] conventional free air thermal current | 10 A conforming to IEC 60947-5-1 |
| [Ui] rated insulation voltage | 600 V (pollution degree 3) conforming to IEC 60947-1 |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to IEC 60947-1 |
| [Ie] rated operational current | 2 A at 230 V, AC-15, A600 conforming to IEC 60947-5-1 |
| 0.2 A at 110 V, DC-13, Q600 conforming to IEC 60947-5-1 | |
| Electrical durability | 500000 cycles, AC-15, 2 A at 230 V, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 |
| 500000 cycles, DC-13, 0.2 A at 110 V, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 | |
| Contacts type and composition | 1 NC |
| Environment | |
| Protective treatment | TC |
| IP degree of protection | IP20 conforming to IEC 60529 |
| standards | IEC 60947-1 |
| IEC 60529 | |
| IEC 60947-5-4 | |
| IEC 60947-5-1 | |
| product certifications | CCC |
| CE | |
| Ambient air temperature for storage | -40…70 °C |
| Ambient air temperature for operation | -25…55 °C |
| Weight | 0.020000 |
|---|---|
| Brand | Schneider Electric |
| Model | ZA2EE102 |
| Range | Harmony XA2 |
| Family | IDSIG |
