Schneider Electric 22mm Round Green Pushbutton, Flush, Spring Return, 1 Normally Open (1NO) Contact
Range of product: Easy Harmony XA2
Product type: Complete push-button
Type of operator: Spring return
Shape of signaling unit head: Round

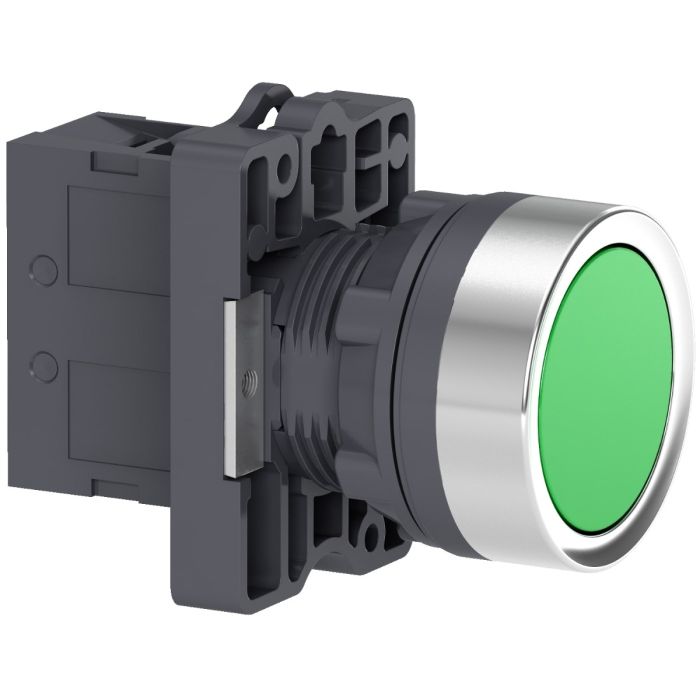

The Schneider Electric XA2EA31 is a 22mm round green pushbutton with a flush design and spring return mechanism. It is equipped with one normally open (1NO) contact. This pushbutton is designed for use in control panels, industrial machinery, and electrical circuits where momentary push-button operation is required. The green color provides clear visual identification, and the flush design ensures a smooth and sleek appearance in control panel applications.
Key Features:
22mm Pushbutton: Designed to fit into standard 22mm panel cutouts.
Round Green Button: The pushbutton features a round, green button for clear visual indication.
Flush Design: Flush design for a sleek and smooth appearance in control panels.
Spring Return: The pushbutton has a spring return mechanism for momentary operation.
1NO Contact: Equipped with one normally open contact for electrical connections.
Versatile Applications: Suitable for use in control panels, machinery, and electrical systems.
| Specifications | |
Main | |
| Range of product | Easy Harmony XA2 |
| Product or component type | Complete push-button |
| Device short name | XA2 |
| bezel material | Plastic |
| Fixing collar material | Plastic |
| Complementary | |
| Mounting diameter | 22.5 mm |
| Sale per indivisible quantity | 1 |
| Protective treatment | TC |
| Operating position | Any position |
| Fixing center | >= 30 x 40 mm (panel) - thickness: 1…5 mm |
| Fixing mode | Fixing nut: 2…2.4 N.m |
| Shape of signaling unit head | Round |
| Type of operator | Spring return |
| Operator profile | Green flush |
| Contacts type and composition | 1 NO |
| contact operation | Slow-break |
| Mechanical durability | 1500000 cycles |
| Connections - terminals | Screw clamp terminal, <= 2 x 1.5 mm² |
| Screw clamp terminal, <= 1 x 2.5 mm² | |
| Screw clamp terminal, >= 1 x 0.5 mm² | |
| Faston terminals, connection size: 6.3 mm | |
| Tightening torque | 0.8 N.m |
| Short-circuit protection | 10 A gL fuse conforming to IEC 60269-1 |
| [Ith] conventional free air thermal current | 10:00 AM |
| [Ui] rated insulation voltage | 600 V conforming to IEC 60947-1 |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to IEC 60947-1 |
| [Ie] rated operational current | 3 A at 240 V, AC-15, A600 |
| 0.27 A at 250 V, DC-13, Q600 | |
| Electrical durability | 500000 cycles, AC-15, 3 A at 230 V, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-4 |
| 500000 cycles, DC-13, 0.2 A at 110 V, operating rate <60 cyc/mn, load factor: 0.5 | |
| Electrical reliability | Λ < 10exp(-8) at 24 V |
| Width | 30 mm |
| height | 42 mm |
| Depth | 54.7 mm |
| Net weight | 0.032 kg |
| Cap/operator or lens colour | Green |
| Type of operator | Spring return |
| Environment | |
| Ambient air temperature for storage | -40…70 °C |
| Ambient air temperature for operation | -25…55 °C |
| Overvoltage category | Class I conforming to IEC 536 |
| IP degree of protection | IP65 conforming to IEC 60529 |
| IK degree of protection | IK03 conforming to IEC 60529 |
| standards | IEC 60947-5-1 |
| GB 14048.1 | |
| GB 14048.5 | |
| IEC 60947-1 |
| Weight | 0.032000 |
|---|---|
| Brand | Schneider Electric |
| Model | XA2EA31 |
| Color | Green |
| Width [cm] | 3 |
| Height [cm] | 4.2 |
| Range | Harmony XA2 |
| Family | IDSIG |
