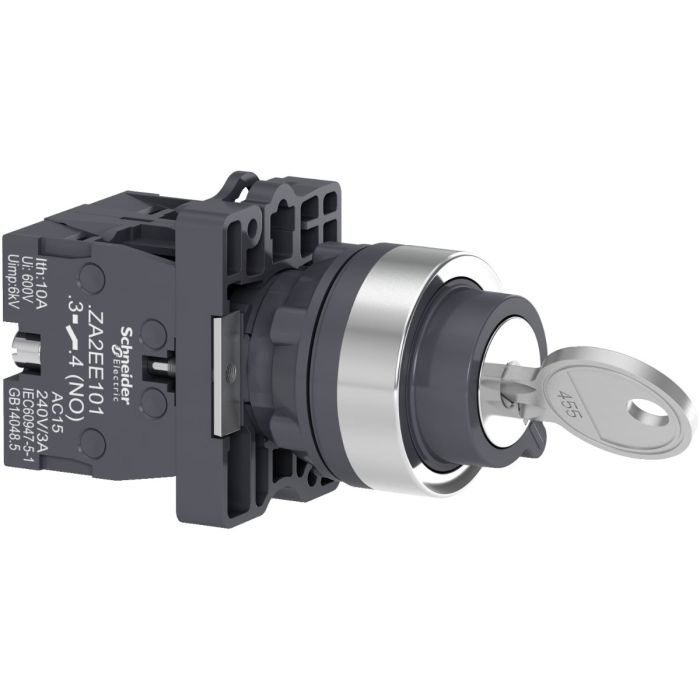

Schneider Electric Key Selector Switch Lock by Schneider Electric, Model XA2EG33, 22mm, Three-Position Stay-Put, Double-Throw (2NO)
Range of product: Easy Harmony XA2
Product type: Complete selector switch
Type of operator: Stay put
Key number: 455
The Key Selector Switch Lock by Schneider Electric, Model XA2EG33, is part of the Harmony XA2 series and is designed for use in industrial control panels and systems. This switch features a three-position stay-put design, meaning it can be set in one of three different positions and has a double-throw configuration with two normally open (NO) ports (2NO). This switch is used to specify the mode in which systems are operated or stopped precisely. With a 22mm size, it is compatible with standard panel cutouts.
Key Features:
Key Selector Switch: Allows switching between three different positions for setting the system mode.
Double-Throw (2NO): Features two normally open (NO) ports for electrical connections.
22mm Size: Compatible with standard panel cutouts.
Durable and Reliable: High-quality industrial design ensures dependable performance.
Versatile Use: Suitable for a variety of industrial applications.
Specifications
| Main | |
| Range of product | Easy Harmony XA2 |
| Product or component type | Complete selector switch |
| device short name | XA2 |
| bezel material | Plastic |
| Fixing collar material | Plastic |
| Mounting diameter | 22.5 mm |
| Complementary | |
| Fixing center | >= 30 x 40 mm (panel) - thickness: 1…5 mm |
| Fixing mode | Fixing nut: 2…2.4 N.m |
| Type of operator | Stay put |
| Operator profile | Key switch |
| Operator position information | 3 positions 45° |
| Key number | 455 |
| Key withdrawal position | Center |
| Contacts type and composition | 2 NO |
| contact operation | Slow-break |
| Mechanical durability | 100000 cycles |
| Connections - terminals | , clamping capacity: <= 2 x 1.5 mm² |
| , clamping capacity: <= 1 x 2.5 mm² | |
| , clamping capacity: >= 1 x 0.5 mm² | |
| Faston terminals, connection size: 6.3 mm | |
| Tightening torque | 0.8 N.m |
| Short-circuit protection | 10 A fuse type gL conforming to IEC 60269-1 |
| [Ith] conventional free air thermal current | 10:00 ص |
| [Ui] rated insulation voltage | 600 V |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to IEC 60947-1 |
| [Ie] rated operational current | 3 A at 240 V, AC-15, A600 |
| 0.27 A at 250 V, DC-13, Q600 | |
| Electrical durability | 500000 cycles, AC-15, 3 A at 230 V, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-4 |
| 500000 cycles, DC-13, 0.2 A at 110 V, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-4 | |
| Electrical reliability | Λ < 10exp(-8) at 24 V |
| Width | 30 mm |
| height | 42 mm |
| Depth | 85.7 mm |
| Net weight | 0.078 kg |
| Type of operator | Stay put |
| Operator profile | Key switch |
| Head type | Standard |
| Environment | |
| Protective treatment | TC |
| Ambient air temperature for storage | -40…70 °C |
| Ambient air temperature for operation | -20…55 °C |
| Overvoltage category | Class I conforming to IEC 536 |
| IP degree of protection | IP54 conforming to IEC 60529 |
| IK degree of protection | IK03 conforming to IEC 60529 |
| standards | IEC 60947-1 |
| GB 14048.5 | |
| IEC 60947-5-1 | |
| GB 14048.1 | |
| product certifications | CE |
| CCC | |
| Vibration resistance | 10 gn (f= 40…500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 70 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| Weight | 0.078000 |
|---|---|
| Brand | Schneider Electric |
| Model | XA2EG33 |
| Width [cm] | 3 |
| Height [cm] | 4.2 |
| Range | Harmony XA2 |
| Family | IDSIG |
