Schneider Electric Illuminated Double-Headed Pushbutton, Harmony XA2 Series
Out of stock
SKU
XA2EW7L3741M5
Special Price EGP 325 Regular Price EGP 560
Quick Overview
Range of product: Harmony XB4
Product type: Illuminated selector switch
Type of operator: Stay put
Shape of signaling unit head: Round
You May Also Like:
Schneider Electric 22mm Round Red Pushbutton, Flush, Spring Return, 1 Normally Closed (1NC) ContactSpecial Price EGP 95 Regular Price EGP 164
Schneider Electric 22mm Selector Switch with Standard Handle, 2 Positions, 1NOSpecial Price EGP 121 Regular Price EGP 209
Schneider Electric 22mm Selector Switch with Standard Handle, 3 Positions, 2NO (XA2ED53)Special Price EGP 181 Regular Price EGP 312
Schneider Electric Selector Switch, Ø 22, Standard Handle, 2 Positions, 1NO + 1NCSpecial Price EGP 147 Regular Price EGP 253
Schneider Electric Key Selector Switch Lock Model XA2EG03, 22mm, Three-Position Stay-Put, Double-Throw (2NO)Special Price EGP 353 Regular Price EGP 608
Schneider Electric Complete selector switch, Easy Harmony XA2, plastic, 22mm, key 455, 2 positions, stay put, 2NOSpecial Price EGP 309 Regular Price EGP 532
Schneider Electric 22mm Round Green Pushbutton, Flush, Spring Return, 1 Normally Open (1NO) ContactSpecial Price EGP 95 Regular Price EGP 164
Schneider Electric 22mm Selector Switch with Standard Handle, 3 Positions, 2NOSpecial Price EGP 181 Regular Price EGP 312
Schneider Electric Pilot Light, Green Plastic, Ø 22 mm, with Integral LED, 220V DC, Anti-InterferenceSpecial Price EGP 105 Regular Price EGP 181
Schneider Electric 3 hole 22 mm Ø IP65 protection plastic white empty control statioSpecial Price EGP 325 Regular Price EGP 560
Schneider Electric Emergency Switching Off Push Button, Ø22 Non-Trigger Turn Release, 1NCSpecial Price EGP 148 Regular Price EGP 254
Schneider Electric Control Station, 2-Button, Emergency Stop, Key Release, 1NO/1NC, IP66Special Price EGP 198 Regular Price EGP 342
Schneider Electric Pilot Light, Red Plastic, Ø 22 mm, with Integral LED, 220-230V AC, Anti-InterferenceSpecial Price EGP 105 Regular Price EGP 181
Schneider Electric Red Flush Complete Illuminated Pushbutton Ø22 Flush 24V AC/DC 1NCSpecial Price EGP 178 Regular Price EGP 307
Schneider Electric Round Red Pushbutton Ø22, Push-PushSpecial Price EGP 130 Regular Price EGP 224
Schneider Electric Single Contact Block for 22mm Head, 1 Normally Open (NO) ContactSpecial Price EGP 62 Regular Price EGP 108
Schneider Electric Single Contact Block for 22mm Head, 1 Normally Closed (NC) ContactSpecial Price EGP 62 Regular Price EGP 108
Schneider Electric Round Green Pushbutton, Ø 22, Push-Push, 1NOSpecial Price EGP 130 Regular Price EGP 224
Schneider Electric Easy Harmony XA2E Monolithic Pilot Light, Plastic, Blue, Ø22 mm, Integral LED, Screw Clamp Terminals, 24V AC/DCSpecial Price EGP 105 Regular Price EGP 181
Schneider Electric Emergency Stop Push Button, Twist Release, 1NO/1NC, IP65Special Price EGP 105 Regular Price EGP 181

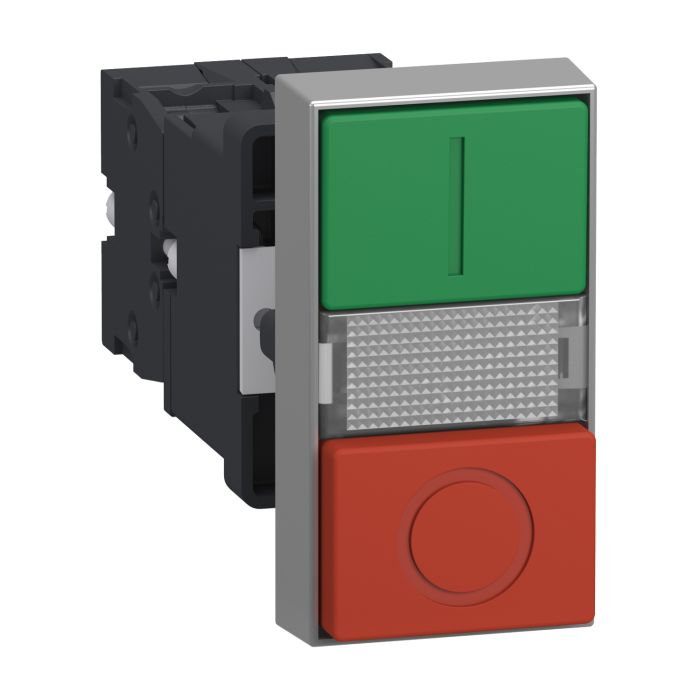

The XA2EW7L3741M5 is an illuminated double-headed pushbutton switch from Schneider Electric's Harmony XA2 series. This 22mm pushbutton features a unique design with one green flush button and one red flush button. It is designed for control panels and industrial applications, providing clear visual feedback.
Key Features:
Double-Headed Design: This pushbutton has two flush buttons, one green and one red.
Illuminated: The buttons are illuminated for easy visibility, making them suitable for status indication.
Voltage Rating: Designed to work with 220-230V AC power supply.
Contacts: It has 1 normally open (NO) contact and 1 normally closed (NC) contact.
22mm Diameter: Fits standard panel openings.
Specifications
| Main | |
| Range of product | Easy Harmony XA2 |
| Product or component type | Complete illuminated double-headed push-button |
| device short name | XA2 |
| bezel material | Plastic |
| Fixing collar material | Plastic |
| light source colour | White |
| Device presentation | Complete product |
| Complementary | |
| Mounting diameter | 22.5 mm |
| Shape of signaling unit head | Rectangular |
| Type of operator | Spring return |
| Operator profile | Green flush, I (green) |
| Red flush, O (red) | |
| Contacts type and composition | 1 NO + 1 NC |
| contact operation | Slow-break |
| contacts usage | Standard contacts |
| Positive opening | With conforming to IEC 60947-5-1 appendix K |
| Operating travel | 1.75 mm (NC changing electrical state) |
| 2.65 mm (NO changing electrical state) | |
| 4.8 mm (total travel) | |
| Mechanical durability | 500000 cycles |
| Connections - terminals | Screw clamp terminals, <= 1 x 2.5 mm² without cable end conforming to IEC 60947-1 |
| Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to IEC 60947-1 | |
| Screw clamp terminals, >= 1 x 0.5 mm² without cable end conforming to IEC 60947-1 | |
| Tightening torque | 0.8…1.2 N.m conforming to IEC 60947-1 |
| Shape of screw head | Cross |
| Contacts material | Silver alloy (Ag/Ni) |
| Short-circuit protection | 10 A gL fuse conforming to IEC 60269-1 |
| [Ith] conventional free air thermal current | 10 A conforming to IEC 60947-5-1 |
| [Ui] rated insulation voltage | 600 V (pollution degree 3) conforming to IEC 60947-1 |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to IEC 60947-1 |
| [Ie] rated operational current | 3 A at 240 V, AC-15, A600 conforming to IEC 60947-5-1 |
| 0.27 A at 250 V, DC-13, Q600 conforming to IEC 60947-5-1 | |
| Electrical durability | 500000 cycles, AC-15, 3 A at 240 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C |
| Signalling type | Steady |
| Light source | Protected LED |
| Bulb base | Integral LED |
| [Us] rated supply voltage | 220 V AC at 50/60 Hz |
| Supply voltage limits | 0.8…1.2 V AC |
| Current consumption | 20 mA |
| Service life | 10000 h |
| Surge withstand | 1 kV conforming to IEC 61000-4-5 |
| Terminals description ISO n°1 | (13-14)NO |
| (11-12)NC | |
| Width | 29.8 mm |
| height | 81.3 mm |
| Depth | 55.4 mm |
| Net weight | 0.072 kg |
| Cap/operator or lens colour | Green + red |
| Type of operator | Spring return |
| [Us] rated supply voltage | 220...230 V |
| Environment | |
| Ambient air temperature for storage | -40…85 °C |
| Ambient air temperature for operation | -25…55 °C |
| Overvoltage category | Class I conforming to IEC 536 |
| IP degree of protection | IP40 conforming to IEC 60529 |
| IK degree of protection | IK05 conforming to IEC 50102 |
| standards | IEC 60947-5-1 |
| GB 14048.1 | |
| GB 14048.5 | |
| product certifications | CCC |
| EAC | |
| CE | |
| Vibration resistance | 15 gn (f= 12…500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 70 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| Weight | 0.072000 |
|---|---|
| Brand | Schneider Electric |
| Model | XA2EW7L3741M5 |
| Width [cm] | 2.98 |
| Height [cm] | 8.13 |
| Range | Harmony XA2 |
| Family | IDSIG |
