Schneider Electric Complete Illuminated Push Button, Easy Harmony XA2, Plastic, Flush, Blue, 22mm, Spring Return, 24V AC/DC, 1NO
Out of stock
SKU
XA2EW36B1
Special Price EGP 178 Regular Price EGP 307
Quick Overview
Range: Easy Harmony XA2
Product type: Complete illuminated push-button
Shape of signaling unit head: Round
Contact operation: Slow-break
You May Also Like:
Schneider Electric 22mm Round Red Pushbutton, Flush, Spring Return, 1 Normally Closed (1NC) ContactSpecial Price EGP 95 Regular Price EGP 164
Schneider Electric 22mm Selector Switch with Standard Handle, 2 Positions, 1NOSpecial Price EGP 121 Regular Price EGP 209
Schneider Electric 22mm Selector Switch with Standard Handle, 3 Positions, 2NO (XA2ED53)Special Price EGP 181 Regular Price EGP 312
Schneider Electric Selector Switch, Ø 22, Standard Handle, 2 Positions, 1NO + 1NCSpecial Price EGP 147 Regular Price EGP 253
Schneider Electric Key Selector Switch Lock Model XA2EG03, 22mm, Three-Position Stay-Put, Double-Throw (2NO)Special Price EGP 353 Regular Price EGP 608
Schneider Electric Complete selector switch, Easy Harmony XA2, plastic, 22mm, key 455, 2 positions, stay put, 2NOSpecial Price EGP 309 Regular Price EGP 532
Schneider Electric 22mm Round Green Pushbutton, Flush, Spring Return, 1 Normally Open (1NO) ContactSpecial Price EGP 95 Regular Price EGP 164
Schneider Electric 22mm Selector Switch with Standard Handle, 3 Positions, 2NOSpecial Price EGP 181 Regular Price EGP 312
Schneider Electric Pilot Light, Green Plastic, Ø 22 mm, with Integral LED, 220V DC, Anti-InterferenceSpecial Price EGP 105 Regular Price EGP 181
Schneider Electric 3 hole 22 mm Ø IP65 protection plastic white empty control statioSpecial Price EGP 325 Regular Price EGP 560
Schneider Electric Emergency Switching Off Push Button, Ø22 Non-Trigger Turn Release, 1NCSpecial Price EGP 148 Regular Price EGP 254
Schneider Electric Control Station, 2-Button, Emergency Stop, Key Release, 1NO/1NC, IP66Special Price EGP 198 Regular Price EGP 342
Schneider Electric Pilot Light, Red Plastic, Ø 22 mm, with Integral LED, 220-230V AC, Anti-InterferenceSpecial Price EGP 105 Regular Price EGP 181
Schneider Electric Red Flush Complete Illuminated Pushbutton Ø22 Flush 24V AC/DC 1NCSpecial Price EGP 178 Regular Price EGP 307
Schneider Electric Round Red Pushbutton Ø22, Push-PushSpecial Price EGP 130 Regular Price EGP 224
Schneider Electric Single Contact Block for 22mm Head, 1 Normally Open (NO) ContactSpecial Price EGP 62 Regular Price EGP 108
Schneider Electric Single Contact Block for 22mm Head, 1 Normally Closed (NC) ContactSpecial Price EGP 62 Regular Price EGP 108
Schneider Electric Round Green Pushbutton, Ø 22, Push-Push, 1NOSpecial Price EGP 130 Regular Price EGP 224
Schneider Electric Easy Harmony XA2E Monolithic Pilot Light, Plastic, Blue, Ø22 mm, Integral LED, Screw Clamp Terminals, 24V AC/DCSpecial Price EGP 105 Regular Price EGP 181
Schneider Electric Emergency Stop Push Button, Twist Release, 1NO/1NC, IP65Special Price EGP 105 Regular Price EGP 181

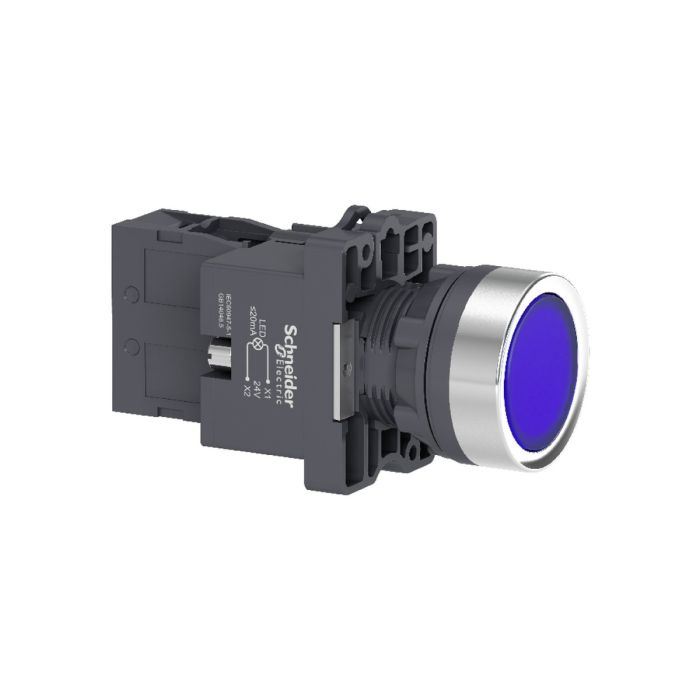

This product is part of the Easy Harmony XA2 range, an offer of Ø 22mm plastic pushbuttons, switches and pilot lights. It is a modular illuminated flush blue pushbutton. This pushbutton operates with a spring return / impulse mechanism. This illuminated pushbutton with integral LED provides an ergonomic and visual interface for controlling machines. It has 1 NO contact with slow-break operation. This pushbutton has a 24V AC/DC rating. This is a plastic pushbutton with a metallic-look ring design bezel. It is an IP65 rated product and comes with CE, CCC and EAC certification conforming to GB 14048.1, IEC 60947-1, GB 14048.5 and IEC 60947-5-1 standards . It is easily installed into a standard 22mm diameter panel cut-outs and connected to control circuits with screw-clamp connections. It is clearly distinguishable visually at a distance due to its illuminated head and clear color. It is impact resistant, dust resistant, water resistant and vibration resistant making it suitable for operation in harsh environments.
Specifications:
| Main | |
| Range of product | Easy Harmony XA2 |
| Product or component type | Complete illuminated push-button |
| Device short name | XA2 |
| Bezel material | Plastic |
| Mounting diameter | 22.5 mm |
| Complementary | |
| Sale per indivisible quantity | 1 |
| Protective treatment | TC |
| Operating position | Any position |
| Fixing center | >= 30 x 40 mm (panel) - thickness: 1…5 mm |
| Fixing mode | Fixing nut recommended torque: 2.2 N.m (Us +/- 10 %) |
| Shape of signaling unit head | Round |
| Type of operator | spring return |
| Operator profile | Blue flush |
| Contacts type and composition | 1 NO |
| Contact operation | Slow-break |
| Mechanical durability | 1500000 cycles |
| Connections - terminals | Screw clamp terminals, clamping capacity: 2 x 1.5 mm² |
| Screw clamp terminals, clamping capacity: 1 x 2.5 mm² | |
| Faston terminals, connection size: 6.3 mm | |
| Screw clamp terminals, clamping capacity: 1 x 0.5 mm² | |
| Tightening torque | 0.8 N.m |
| Short-circuit protection | 10 A gL fuse conforming to IEC 60269-1 |
| [Ith] conventional free air thermal current | 10:00 AM |
| [Ui] rated insulation voltage | 600 V conforming to IEC 60947-4-1 |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to IEC 60947-1 |
| [Ie] rated operational current | 0.27 A at 250 V, DC-13, Q600 |
| 3 A at 240 V, AC-15, A600 | |
| Electrical durability | 500000 cycles, DC-13, 0.2 A at 110 V, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-4 |
| 500000 cycles, DC-13, 3 A at 230 V, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-4 | |
| Signalling type | Steady |
| Light source | LED |
| Bulb base | BA 9s |
| [Us] rated supply voltage | 24 V AC/DC 50/60 Hz |
| Supply voltage limits | 19…26 V AC/DC |
| Current consumption | < 20 mA |
| Service life | 10000 h |
| Width | 30 mm |
| Height | 42 mm |
| Depth | 74.5 mm |
| Net weight | 0.056 kg |
| Cap/operator or lens colour | Blue |
| Type of operator | Spring return |
| [Us] Rated supply voltage | 24 V |
| Environment | |
| Ambient air temperature for storage | -40…70 °C |
| Ambient air temperature for operation | -25…55 °C |
| Overvoltage category | Class I conforming to IEC 536 |
| IP degree of protection | IP65 |
| IK degree of protection | IK03 conforming to IEC 60529 |
| Standards | IEC 60947-5-1 |
| GB 14048.1 | |
| GB 14048.5 | |
| IEC 60947-1 | |
| Product certifications | CE |
| CCC | |
| Vibration resistance | 10 gn (f= 40…500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 70 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| Weight | 0.056000 |
|---|---|
| Brand | Schneider Electric |
| Model | XA2EW36B1 |
| Color | Blue |
| Depth [cm] | 7.45 |
| Width [cm] | 3 |
| Height [cm] | 4.2 |
| Range | Harmony XA2 |
| Family | IDSIG |
| Type | Illuminated Push-button |
