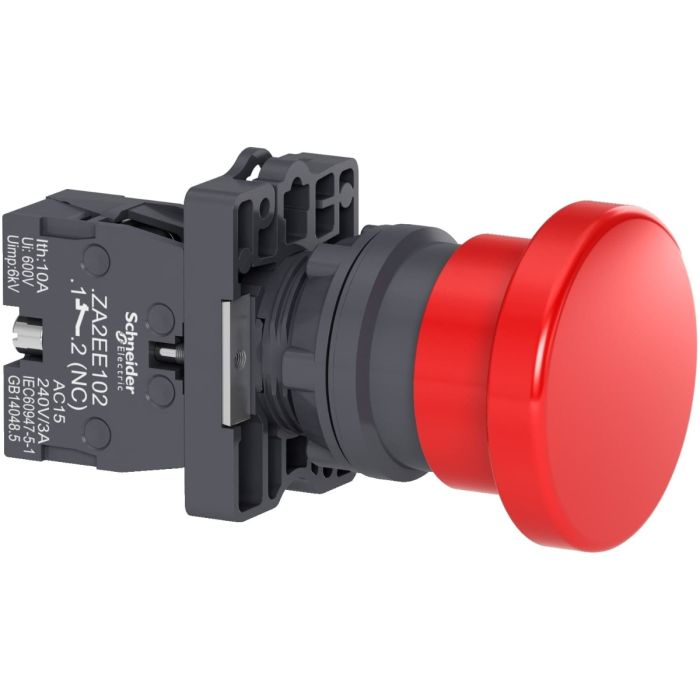

Pushbutton Ø22, Mushroom Head, Black, 1NC, Schneider Electric
Range of product: Easy Harmony XA2
Product type: Complete push-button
Type of operator: Push-push
Shape of signaling unit head: Round
Discover the Schneider Electric XA2EC42 Pushbutton with a Mushroom Head, designed for control and signaling in various applications. With a Ø22mm mounting size, this pushbutton features a striking black mushroom head and one normally closed (1NC) contact. Its robust construction and simple operation make it a reliable choice for control needs.
Key Features:
Versatile Control: Ideal for a wide range of applications requiring push-button control.
Mushroom Head Design: The distinctive mushroom head offers an easily recognizable control point.
1NC Contact: Equipped with one normally closed (1NC) contact for secure signaling.
Ø22mm Mounting: Standard Ø22mm size ensures compatibility with common panel cutouts.
Technical Specifications:
Mounting Size (Ø): 22mm
Head Design: Mushroom Head
Button Color: Black
Contact Configuration: 1 Normally Closed (1NC)
Specifications
| Main | |
| Range of product | Easy Harmony XA2 |
| Product or component type | Complete push-button |
| device short name | XA2 |
| bezel material | Plastic |
| Fixing collar material | Plastic |
| Complementary | |
| Mounting diameter | 22.5 mm |
| Sale per indivisible quantity | 1 |
| Protective treatment | TC |
| Operating position | Any position |
| Device mounting | Fixing hole |
| Fixing center | >= 30 x 40 mm (panel) - thickness: 1…5 mm |
| Fixing mode | Fixing nut: 2…2.4 N.m |
| Shape of signaling unit head | Round |
| Type of operator | Spring return |
| Operator profile | Green mushroom Ø 40 mm |
| Contacts type and composition | 1 NC |
| contact operation | Slow-break |
| Mechanical durability | 1500000 cycles |
| Connections - terminals | Screw clamp terminal, <= 2 x 1.5 mm² |
| Screw clamp terminal, <= 1 x 2.5 mm² | |
| Screw clamp terminal, >= 1 x 0.5 mm² | |
| Faston terminals, connection size: 6.3 mm | |
| Tightening torque | 0.8 N.m |
| Short-circuit protection | 10 A gL fuse conforming to IEC 60269-1 |
| [Ith] conventional free air thermal current | 10:00 ص |
| [Ui] rated insulation voltage | 600 V conforming to IEC 60947-1 |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to IEC 60947-1 |
| [Ie] rated operational current | 3 A at 240 V, AC-15, A600 |
| 0.27 A at 250 V, DC-13, Q600 | |
| Electrical durability | 500000 cycles, AC-15, 3 A at 230 V, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-4 |
| 500000 cycles, DC-13, 0.2 A at 110 V, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-4 | |
| Electrical reliability | Λ < 10exp(-8) at 24 V |
| Width | 42 mm |
| height | 30 mm |
| Depth | 74.2 mm |
| Net weight | 0.052 kg |
| Cap/operator or lens colour | Red |
| Type of operator | Spring return |
| Environment | |
| Ambient air temperature for storage | -40…70 °C |
| Ambient air temperature for operation | -25…55 °C |
| Overvoltage category | Class I conforming to IEC 536 |
| IP degree of protection | IP65 conforming to IEC 60529 |
| IK degree of protection | IK03 conforming to IEC 60529 |
| standards | IEC 60947-1 |
| GB 14048.5 | |
| GB 14048.1 | |
| IEC 60947-5-1 | |
| product certifications | CE |
| CCC | |
| Vibration resistance | 10 gn (f= 40…500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 15 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| Weight | 0.052000 |
|---|---|
| Brand | Schneider Electric |
| Model | XA2EC42 |
| Color | Red |
| Depth [cm] | 74.2 |
| Width [cm] | 42 |
| Height [cm] | 30 |
| Range | Harmony XA2 |
| Family | IDSIG |
