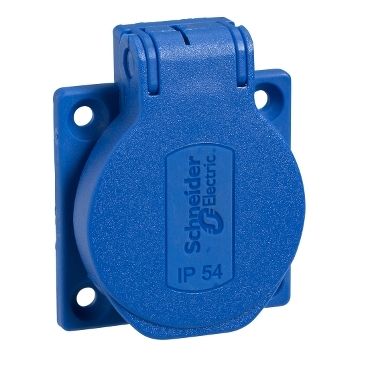

Schneider Electric Schuko Panel Socket Outlet, Mureva PK Series, 50x50 mm, Blue, IP54
Out of stock
SKU
PKS51B
Special Price EGP 336 Regular Price EGP 405
Quick Overview
Product or component type: Socket-outlet
Network type: AC
Plug, socket category: Low voltage
You May Also Like:
Schneider Electric Mureva Styl, Box Cover with lid for Altira, WhiteSpecial Price EGP 101 Regular Price EGP 201
Schneider Electric Pratika Wander Socket, Straight, 32A, 2P + E, 200-250V AC, IP44Special Price EGP 659 Regular Price EGP 793
Schneider Electric Pratika Socket, Screw Straight, 16A, 3P + N + E, 380-415V AC PanelSpecial Price EGP 1,172 Regular Price EGP 1,412
Schneider Electric Pratika Socket, Screw Straight, 16A, 3P + N + E, 380-415V AC, PanelSpecial Price EGP 518 Regular Price EGP 624
Schneider Electric Pratika Wander Socket, Straight, 32A, 3P + N + E, 380-415V AC, IP44Special Price EGP 721 Regular Price EGP 869
Schneider Electric Pratika Wander Socket, Straight, 32A, 3P + N + E, 380-415V AC, IP67Special Price EGP 1,581 Regular Price EGP 1,904
Schneider Electric Pratika Wander Plug, Straight, 16A, 2P + E, 200-250V AC, IP67Special Price EGP 408 Regular Price EGP 491
Schneider Electric Pratika Socket, Screw Straight, 16A, 3P + E, 380-415V AC PanelSpecial Price EGP 429 Regular Price EGP 517
Schneider Electric Pratika Wander Socket, Straight, 16A, 3P + E, 380-415V AC, IP67Special Price EGP 998 Regular Price EGP 1,202
Schneider Electric Pratika Socket, Screw Straight, 32A, 3P + N + E, 380-415V AC, Panel MountSpecial Price EGP 1,272 Regular Price EGP 1,532
Schneider Electric Pratika Wander Socket, Straight, 32A, 3P + E, 380-415V AC, IP44Special Price EGP 667 Regular Price EGP 803
Schneider Electric Pratika Socket Screw Angled 32A, 3P + N + E, 380-415V AC, Wall-MountedSpecial Price EGP 1,500 Regular Price EGP 1,807
Schneider Electric Mureva Styl, Surface Mounted Box, 2 gangs Horizontal, WhiteSpecial Price EGP 206 Regular Price EGP 412
This PratiKa rear connected domestic German standard socket with captive screws connection is straight panel-mounted.
It has 2P+E pole, rated current is 10A to 16A and the operating voltage is 250VAC. The dimensions of the base plate are (W) 50mm x (H) 50mm.
The degree of protection is IP54 and IK09. The fire resistance is 850°C. This panel mounted socket can be fitted directly on Kaedra enclosures or on wall boxes.
The color of the socket is blue to easily identify the operating voltage. The frequency is 50Hz or 60Hz.
| Specifications | |
Main | |
| Range | Mureva |
| Product or component type | Socket-outlet |
| Device short name | Mureva socket |
| Plug, socket category | Low voltage |
| Poles description | 2P + E |
| Network type | AC |
| Outlet standard | German |
| Complementary | |
| [In] rated current | 10:00 AM |
| 16 A | |
| Network frequency | 50/60 Hz |
| [Ue] rated operational voltage | 250 V |
| Plug, socket material | Housing: self-extinguishing engineering polymer |
| Contacts material | Pins: stainless steel |
| Springs: stainless steel | |
| Cover type | Lid |
| Device mounting | Flush |
| Mounting mode | Panel-mounted |
| Connections - terminals | Captive screws |
| Location of conductor inlet | Back |
| Net weight | 0.05 kg |
| Base dimension | 50 x 50 mm |
| height | 85 mm |
| Width | 65 mm |
| Depth | 45.2 mm |
| Colour | Blue |
| Environment | |
| standards | IEC 60309-2 |
| IEC 60309-1 | |
| IP degree of protection | IP54 conforming to IEC 60529 |
| IK degree of protection | IK09 conforming to EN 62262 |
| Fire resistance | 850 °C conforming to IEC 60695-2-11 |
| Relative humidity | 50 % at 40 °C |
| 70 % at 30 °C | |
| 90 % at 20 °C | |
| Ambient air temperature for operation | 35 °C ( 86400 s ) |
| -25…40 °C |
| Weight | 0.050000 |
|---|---|
| Brand | Schneider Electric |
| Model | PKS51B |
| Color | Blue |
| Depth [cm] | 45.2 |
| Width [cm] | 6.5 |
| Height [cm] | 8.5 |
| Range | Mureva |
| Family | HDCWD |
