Schneider Electric Pratika Socket Screw Angled 32A, 3P + N + E, 380-415V AC, Wall-Mounted
In stock
SKU
PKF32W735
Special Price EGP 1,500 Regular Price EGP 1,807
Schneider Electric Pratika Socket Screw Angled 32A, 3P + N + E, 380-415V AC, Wall-Mounted is available to buy in increments of 1
Quick Overview
Range: Mureva
Product type: Socket
Network type: AC
Poles: 3P + N + E
You May Also Like:
Schneider Electric Mureva Styl, Box Cover with lid for Altira, WhiteSpecial Price EGP 101 Regular Price EGP 201
Schneider Electric Pratika Wander Socket, Straight, 32A, 2P + E, 200-250V AC, IP44Special Price EGP 659 Regular Price EGP 793
Schneider Electric Pratika Socket, Screw Straight, 16A, 3P + N + E, 380-415V AC PanelSpecial Price EGP 1,172 Regular Price EGP 1,412
Schneider Electric Pratika Socket, Screw Straight, 16A, 3P + N + E, 380-415V AC, PanelSpecial Price EGP 518 Regular Price EGP 624
Schneider Electric Pratika Wander Socket, Straight, 32A, 3P + N + E, 380-415V AC, IP44Special Price EGP 721 Regular Price EGP 869
Schneider Electric Pratika Wander Socket, Straight, 32A, 3P + N + E, 380-415V AC, IP67Special Price EGP 1,581 Regular Price EGP 1,904
Schneider Electric Pratika Wander Plug, Straight, 16A, 2P + E, 200-250V AC, IP67Special Price EGP 408 Regular Price EGP 491
Schneider Electric Pratika Socket, Screw Straight, 16A, 3P + E, 380-415V AC PanelSpecial Price EGP 429 Regular Price EGP 517
Schneider Electric Pratika Wander Socket, Straight, 16A, 3P + E, 380-415V AC, IP67Special Price EGP 998 Regular Price EGP 1,202
Schneider Electric Pratika Socket, Screw Straight, 32A, 3P + N + E, 380-415V AC, Panel MountSpecial Price EGP 1,272 Regular Price EGP 1,532
Schneider Electric Pratika Wander Socket, Straight, 32A, 3P + E, 380-415V AC, IP44Special Price EGP 667 Regular Price EGP 803
Schneider Electric Mureva Styl, Surface Mounted Box, 2 gangs Horizontal, WhiteSpecial Price EGP 206 Regular Price EGP 412

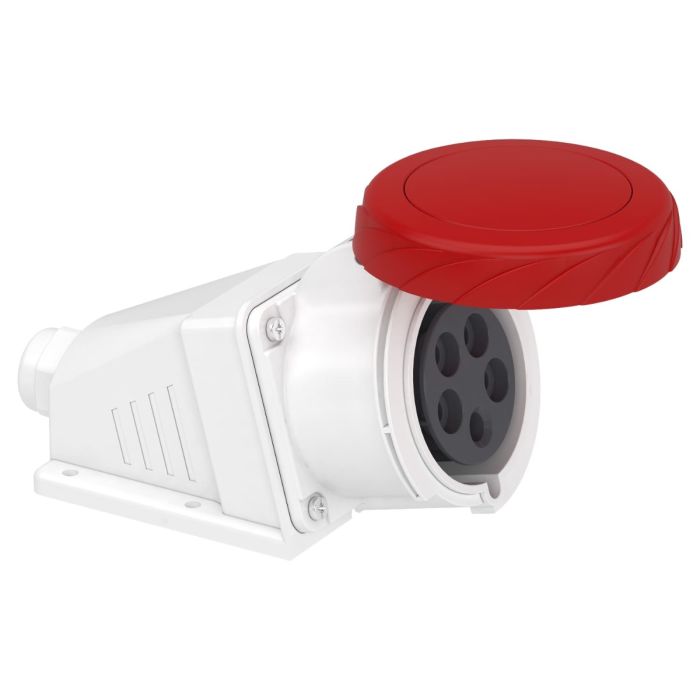

This Pratika industrial socket with captive screws connection is angled wall mounted. It has 3P+N+E poles, rated current is 32A and the operating voltage is 380VAC to 415VAC. The dimensions of the base plate are (W) 106mm x (H) 130mm. The degree of protection is IP67 and IK08. The fire resistance is 750°C. The cable entries are for flexible or rigid cables. The cross section of the cables in 32A is 2.5mm² to 10mm². The color of the socket is light grey (RAL 7035) with red easy identification of the operating voltage. The frequency is 50Hz or 60Hz. The clock position of contact is 6h.
Specifications:
Main | |
| Range | Mureva |
| Product or component type | Socket |
| Device short name | Mureva socket |
| Plug, socket category | Low voltage |
| Poles description | 3P + N + E |
| Network type | AC |
| Outlet standard | Industrial |
| Complementary | |
| Mounting mode | Wall-mounted |
| Plug, socket, control station shape | Angled |
| [In] rated current | 32 A |
| [Ue] rated operational voltage | 380...415 V |
| Network frequency | 50/60 Hz |
| ground lug clockwise position | 6 h |
| Plug, socket material | Housing: self-extinguishing engineering polymer |
| Contacts material | Sleeves: brass |
| Connections - terminals | Captive screws |
| Cable cross section | 2.5…10 mm² |
| Cable outer diameter | 21 mm |
| Thread type | M25 |
| Net weight | 0.41 kg |
| height | 130 mm |
| Width | 106 mm |
| Depth | 154 mm |
| Colour | Grey (RAL 7035) |
| Voltage colour | Red |
| Environment | |
| standards | IEC 60309-1 |
| IEC 60309-2 | |
| IP degree of protection | IP67 conforming to IEC 60529 |
| IK degree of protection | IK08 conforming to EN 62262 |
| Fire resistance | 750 °C conforming to IEC 60695-2-1 |
| Relative humidity | 50 % at 40 °C |
| 70 % at 30 °C | |
| 90 % at 20 °C | |
| Ambient air temperature for operation | 35 °C ( 86400 s ) |
| -25…40 °C |
| Weight | 0.410000 |
|---|---|
| Brand | Schneider Electric |
| Model | PKF32W735 |
| Color | Blue |
| Depth [cm] | 15.4 |
| Width [cm] | 10.6 |
| Height [cm] | 13 |
| Range | Mureva |
| Family | HDCWD |
| Type | Socket-Outlet |
| Poles | 3P |
| [In] Rated Current | 32 A |
| Voltage ~ Frequency | 50-60 Hz |
| IP Degree of Protection | IP67 |
| IK Degree of Protection | IK08 |
