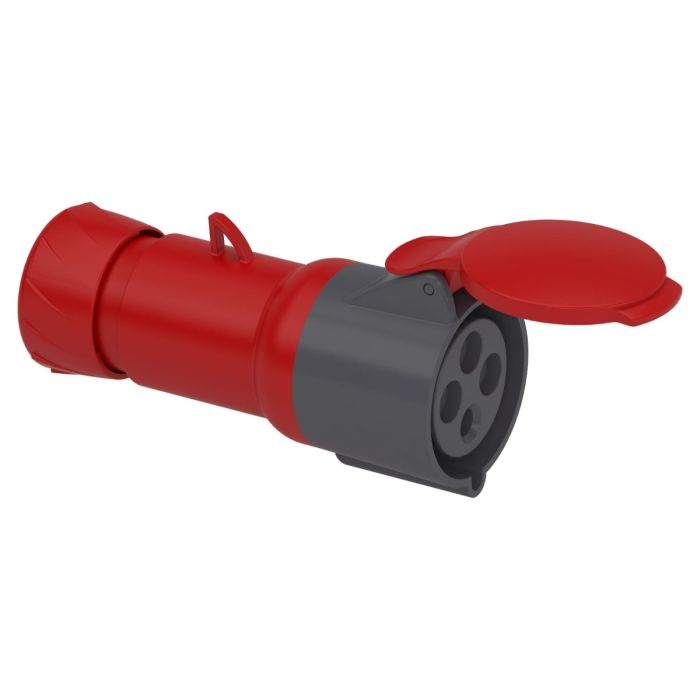

Schneider Electric Pratika Wander Socket, Straight, 32A, 3P + E, 380-415V AC, IP44
In stock
SKU
PKF32M434
Special Price EGP 667 Regular Price EGP 803
Schneider Electric Pratika Wander Socket, Straight, 32A, 3P + E, 380-415V AC, IP44 is available to buy in increments of 1
Quick Overview
Range: Mureva
Product type: Wander socket
Plug, socket category: Low voltage
Network type: AC
You May Also Like:
Schneider Electric Mureva Styl, Box Cover with lid for Altira, WhiteSpecial Price EGP 101 Regular Price EGP 201
Schneider Electric Pratika Wander Socket, Straight, 32A, 2P + E, 200-250V AC, IP44Special Price EGP 659 Regular Price EGP 793
Schneider Electric Pratika Socket, Screw Straight, 16A, 3P + N + E, 380-415V AC PanelSpecial Price EGP 1,172 Regular Price EGP 1,412
Schneider Electric Pratika Socket, Screw Straight, 16A, 3P + N + E, 380-415V AC, PanelSpecial Price EGP 518 Regular Price EGP 624
Schneider Electric Pratika Wander Socket, Straight, 32A, 3P + N + E, 380-415V AC, IP44Special Price EGP 721 Regular Price EGP 869
Schneider Electric Pratika Wander Socket, Straight, 32A, 3P + N + E, 380-415V AC, IP67Special Price EGP 1,581 Regular Price EGP 1,904
Schneider Electric Pratika Wander Plug, Straight, 16A, 2P + E, 200-250V AC, IP67Special Price EGP 408 Regular Price EGP 491
Schneider Electric Pratika Socket, Screw Straight, 16A, 3P + E, 380-415V AC PanelSpecial Price EGP 429 Regular Price EGP 517
Schneider Electric Pratika Wander Socket, Straight, 16A, 3P + E, 380-415V AC, IP67Special Price EGP 998 Regular Price EGP 1,202
Schneider Electric Pratika Socket, Screw Straight, 32A, 3P + N + E, 380-415V AC, Panel MountSpecial Price EGP 1,272 Regular Price EGP 1,532
Schneider Electric Pratika Socket Screw Angled 32A, 3P + N + E, 380-415V AC, Wall-MountedSpecial Price EGP 1,500 Regular Price EGP 1,807
Schneider Electric Mureva Styl, Surface Mounted Box, 2 gangs Horizontal, WhiteSpecial Price EGP 206 Regular Price EGP 412
This Pratika industrial wander socket with captive screws connection is straight. It has 3P+E poles, rated current is 32A and the operating voltage is 380VAC to 415VAC. The dimensions of the base plate are (W) 98mm x (H) 98mm. The degree of protection is IP44 and IK08. The fire resistance is 850°C. The cable entries are for flexible or rigid cables. The size of the cable entries in 32A is 11.5mm to 21mm for 2.5mm² to 10mm² cables. The color of the socket is light grey (RAL 7035) with red easy identification of the operating voltage. The frequency is 50Hz or 60Hz. The clock position of contact is 6h.
Specifications:
Main | |
| Range | Mureva |
| Product or component type | Wander socket |
| Device short name | Mureva screw |
| Plug, socket category | Low voltage |
| Poles description | 3P + E |
| Network type | AC |
| Outlet standard | Industrial |
| Complementary | |
| Plug, socket, control station shape | Straight |
| [In] rated current | 32 A |
| [Ue] rated operational voltage | 380...415 V |
| Network frequency | 50/60 Hz |
| ground lug clockwise position | 6 h |
| Plug, socket material | Housing: self-extinguishing engineering polymer |
| Contacts material | Sleeves: brass |
| Connections - terminals | Captive screws |
| Cable cross section | 2.5…10 mm² |
| Cable outer diameter | 11.5…21 mm |
| Cable entry | Cable gland |
| Fair lead | |
| Thread type | Pg 21 |
| Net weight | 0.26 kg |
| height | 98 mm |
| Width | 98 mm |
| Depth | 165 mm |
| Colour | Grey (RAL 7035) |
| Voltage colour | Red |
| Environment | |
| standards | IEC 60309-1 |
| IEC 60309-2 | |
| IP degree of protection | IP44 conforming to IEC 60529 |
| IK degree of protection | IK08 conforming to EN 62262 |
| Fire resistance | 850 °C conforming to IEC 60695-2-1 |
| Relative humidity | 50 % at 40 °C |
| 70 % at 30 °C | |
| 90 % at 20 °C |
| Weight | 0.260000 |
|---|---|
| Brand | Schneider Electric |
| Model | PKF32M434 |
| Color | Red |
| Depth [cm] | 16.5 |
| Width [cm] | 9.8 |
| Height [cm] | 9.8 |
| Range | Mureva |
| Family | HDCWD |
| Type | Wander socket |
| Poles | 3P + E |
| [In] Rated Current | 32 A |
| Voltage ~ Frequency | 50-60 Hz |
| IP Degree of Protection | IP44 |
| IK Degree of Protection | IK08 |
