Schneider Electric Pratika Socket, Screw Straight, 16A, 3P + N + E, 380-415V AC Panel
Product or component type: Socket
Numbers of poles: 3P + N + E
Network type: AC
You May Also Like:
Schneider Electric Mureva Styl, Box Cover with lid for Altira, WhiteSpecial Price EGP 101 Regular Price EGP 201
Schneider Electric Pratika Wander Socket, Straight, 32A, 2P + E, 200-250V AC, IP44Special Price EGP 659 Regular Price EGP 793
Schneider Electric Pratika Socket, Screw Straight, 16A, 3P + N + E, 380-415V AC, PanelSpecial Price EGP 518 Regular Price EGP 624
Schneider Electric Pratika Wander Socket, Straight, 32A, 3P + N + E, 380-415V AC, IP44Special Price EGP 721 Regular Price EGP 869
Schneider Electric Pratika Wander Socket, Straight, 32A, 3P + N + E, 380-415V AC, IP67Special Price EGP 1,581 Regular Price EGP 1,904
Schneider Electric Pratika Wander Plug, Straight, 16A, 2P + E, 200-250V AC, IP67Special Price EGP 408 Regular Price EGP 491
Schneider Electric Pratika Socket, Screw Straight, 16A, 3P + E, 380-415V AC PanelSpecial Price EGP 429 Regular Price EGP 517
Schneider Electric Pratika Wander Socket, Straight, 16A, 3P + E, 380-415V AC, IP67Special Price EGP 998 Regular Price EGP 1,202
Schneider Electric Pratika Socket, Screw Straight, 32A, 3P + N + E, 380-415V AC, Panel MountSpecial Price EGP 1,272 Regular Price EGP 1,532
Schneider Electric Pratika Wander Socket, Straight, 32A, 3P + E, 380-415V AC, IP44Special Price EGP 667 Regular Price EGP 803
Schneider Electric Pratika Socket Screw Angled 32A, 3P + N + E, 380-415V AC, Wall-MountedSpecial Price EGP 1,500 Regular Price EGP 1,807
Schneider Electric Mureva Styl, Surface Mounted Box, 2 gangs Horizontal, WhiteSpecial Price EGP 206 Regular Price EGP 412

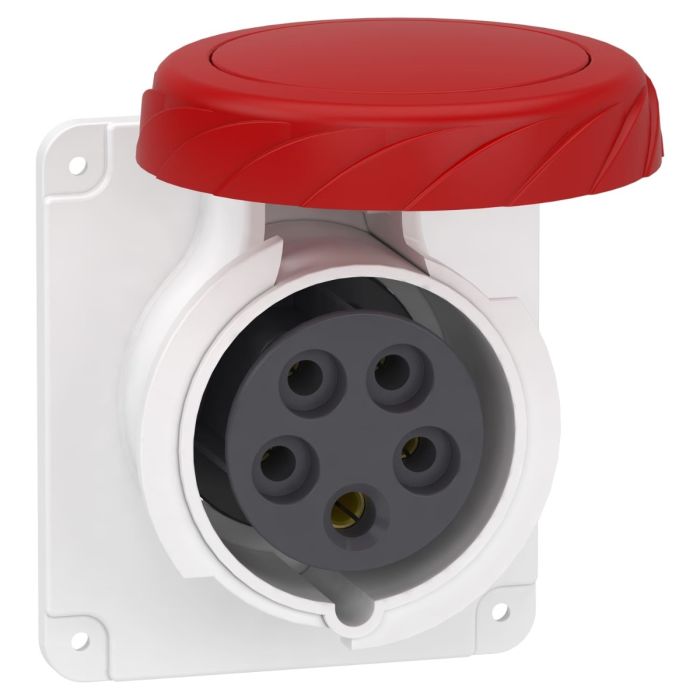

The Schneider Electric PKF16G735 Pratika Socket is a robust and reliable power socket designed for industrial and commercial applications. With a straight screw design, it ensures secure and stable connections. This socket is rated for 16A and provides a 3P (Three-Phase) + N (Neutral) + E (Ground) configuration, suitable for 380-415V AC power supply.
Key Features:
Industrial-Grade Socket: The PKF16G735 is built to withstand demanding industrial environments.
Secure Screw Design: The straight screw design ensures a stable and secure connection.
Versatile Configuration: It features a 3P + N + E configuration for reliable power distribution.
Suitable Voltage: Rated for use with 380-415V AC power supply.
Product Specifications:
Rated Current: 16A
Configuration: 3P + N + E (Three-Phase + Neutral + Ground)
Voltage: 380-415V AC
Upgrade your industrial and commercial power distribution with the Schneider Electric PKF16G735 Pratika Socket.
| Specifications | |
Main | |
| Range | Mureva |
| Product or component type | Socket |
| Device short name | Mureva socket |
| Plug, socket category | Low voltage |
| Poles description | 3P + N + E |
| Network type | AC |
| Outlet standard | Industrial |
| Complementary | |
| Mounting mode | Panel-mounted |
| Plug, socket, control station shape | Straight |
| [In] rated current | 16 A |
| [Ue] rated operational voltage | 380...415 V |
| Network frequency | 50/60 Hz |
| ground lug clockwise position | 6 h |
| Plug, socket material | Housing: self-extinguishing engineering polymer |
| Contacts material | Sleeves: brass |
| Connections - terminals | Captive screws |
| Cable cross section | 1…4 mm² |
| Net weight | 0.212 kg |
| Base dimension | 90 x 100 mm |
| height | 100 mm |
| Width | 90 mm |
| Depth | 94 mm |
| Colour | Grey (RAL 7035) |
| Voltage colour | Red |
| Environment | |
| standards | IEC 60309-1 |
| IEC 60309-2 | |
| IP degree of protection | IP67 conforming to IEC 60529 |
| IK degree of protection | IK08 conforming to EN 62262 |
| Fire resistance | 850 °C conforming to IEC 60695-2-1 |
| Relative humidity | 50 % at 40 °C |
| 70 % at 30 °C | |
| 90 % at 20 °C | |
| Ambient air temperature for operation | 35 °C ( 86400 s ) |
| Weight | 0.212000 |
|---|---|
| Brand | Schneider Electric |
| Model | PKF16G735 |
| Color | Red |
| Depth [cm] | 9.4 |
| Width [cm] | 9 |
| Height [cm] | 11 |
| Range | Mureva |
| Family | HDCWD |
| Type | Socket-Outlet |
| Poles | 3P |
| [In] Rated Current | 16A |
| IP Degree of Protection | IP67 |
| IK Degree of Protection | IK08 |
