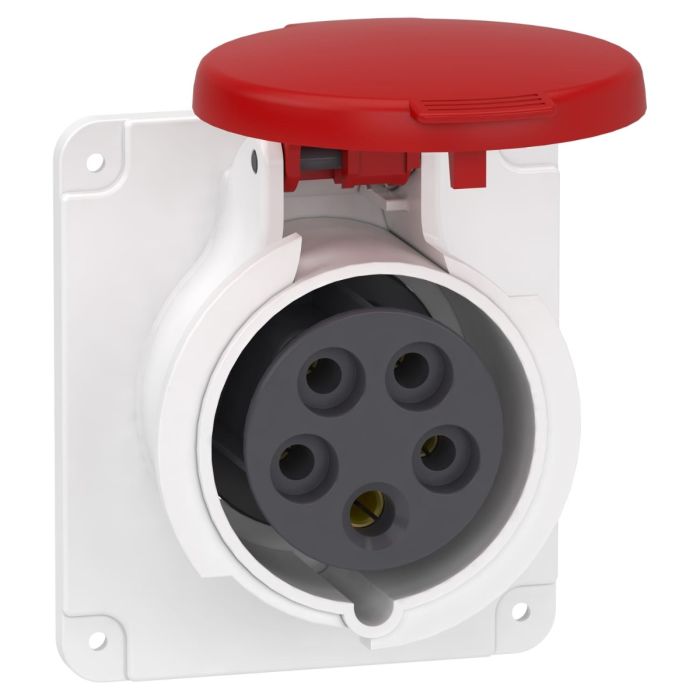

Schneider Electric Pratika Socket, Screw Straight, 16A, 3P + N + E, 380-415V AC, Panel
Product or component type: Socket
Numbers of poles: 3P + N + E
Network type: AC
The Schneider Electric PKF16G435 Pratika Socket is a reliable electrical socket designed for industrial and commercial applications. This socket features a screw-straight connection and is rated for 16A current. It includes 3 poles (3P) plus neutral (N) and earth (E) connections. Operating at a voltage range of 380-415V AC, this socket is ideal for panel mount applications.
Key Features:
Industrial-Grade: The PKF16G435 is built to withstand the demands of industrial environments, ensuring long-term reliability.
Screw-Straight Connection: The screw-straight design simplifies the installation process.
3P + N + E Configuration: With 3 poles, neutral, and earth connections, it's suitable for a wide range of power distribution applications.
Wide Voltage Range: This socket is rated for 380-415V AC, making it versatile for various voltage requirements.
Panel Mount: Designed for panel installation, it offers flexibility in mounting options.
Product Specifications:
Rated Current: 16A
Configuration: 3P + N + E (3 Poles + Neutral + Earth)
Voltage Range: 380-415V AC
Equip your industrial and commercial setups with the Schneider Electric PKF16G435 Pratika Socket for reliable power distribution.
| Specifications | |
Main | |
| Range | Mureva |
| Product or component type | Socket |
| Device short name | Mureva socket |
| Plug, socket category | Low voltage |
| Poles description | 3P + N + E |
| Network type | AC |
| Outlet standard | Industrial |
| Complementary | |
| Mounting mode | Panel-mounted |
| Plug, socket, control station shape | Straight |
| [In] rated current | 16 A |
| [Ue] rated operational voltage | 380...415 V |
| Network frequency | 50/60 Hz |
| ground lug clockwise position | 6 h |
| Plug, socket material | Housing: self-extinguishing engineering polymer |
| Contacts material | Sleeves: brass |
| Connections - terminals | Captive screws |
| Cable cross section | 1…4 mm² |
| Net weight | 0.195 kg |
| Base dimension | 90 x 100 mm |
| height | 100 mm |
| Width | 90 mm |
| Depth | 94 mm |
| Colour | Grey (RAL 7035) |
| Voltage colour | Red |
| Environment | |
| standards | IEC 60309-2 |
| IEC 60309-1 | |
| IP degree of protection | IP44 conforming to IEC 60529 |
| IK degree of protection | IK08 conforming to EN 62262 |
| Fire resistance | 850 °C conforming to IEC 60695-2-1 |
| Relative humidity | 50 % at 40 °C |
| Weight | 0.195000 |
|---|---|
| Brand | Schneider Electric |
| Model | PKF16G435 |
| Color | Red |
| Depth [cm] | 9.4 |
| Width [cm] | 9 |
| Height [cm] | 10 |
| Range | Pratika |
| Family | HDCWD |
