Schneider Electric Pratika Wander Plug, Straight, 16A, 2P + E, 200-250V AC, IP67
In stock
SKU
PKE16M723
Special Price EGP 408 Regular Price EGP 491
Schneider Electric Pratika Wander Plug, Straight, 16A, 2P + E, 200-250V AC, IP67 is available to buy in increments of 1
Quick Overview
Product or component type: Wander plug
Network type: AC
Plug, socket category: Low voltage
You May Also Like:
Schneider Electric Mureva Styl, Box Cover with lid for Altira, WhiteSpecial Price EGP 101 Regular Price EGP 201
Schneider Electric Pratika Wander Socket, Straight, 32A, 2P + E, 200-250V AC, IP44Special Price EGP 659 Regular Price EGP 793
Schneider Electric Pratika Socket, Screw Straight, 16A, 3P + N + E, 380-415V AC PanelSpecial Price EGP 1,172 Regular Price EGP 1,412
Schneider Electric Pratika Socket, Screw Straight, 16A, 3P + N + E, 380-415V AC, PanelSpecial Price EGP 518 Regular Price EGP 624
Schneider Electric Pratika Wander Socket, Straight, 32A, 3P + N + E, 380-415V AC, IP44Special Price EGP 721 Regular Price EGP 869
Schneider Electric Pratika Wander Socket, Straight, 32A, 3P + N + E, 380-415V AC, IP67Special Price EGP 1,581 Regular Price EGP 1,904
Schneider Electric Pratika Socket, Screw Straight, 16A, 3P + E, 380-415V AC PanelSpecial Price EGP 429 Regular Price EGP 517
Schneider Electric Pratika Wander Socket, Straight, 16A, 3P + E, 380-415V AC, IP67Special Price EGP 998 Regular Price EGP 1,202
Schneider Electric Pratika Socket, Screw Straight, 32A, 3P + N + E, 380-415V AC, Panel MountSpecial Price EGP 1,272 Regular Price EGP 1,532
Schneider Electric Pratika Wander Socket, Straight, 32A, 3P + E, 380-415V AC, IP44Special Price EGP 667 Regular Price EGP 803
Schneider Electric Pratika Socket Screw Angled 32A, 3P + N + E, 380-415V AC, Wall-MountedSpecial Price EGP 1,500 Regular Price EGP 1,807
Schneider Electric Mureva Styl, Surface Mounted Box, 2 gangs Horizontal, WhiteSpecial Price EGP 206 Regular Price EGP 412

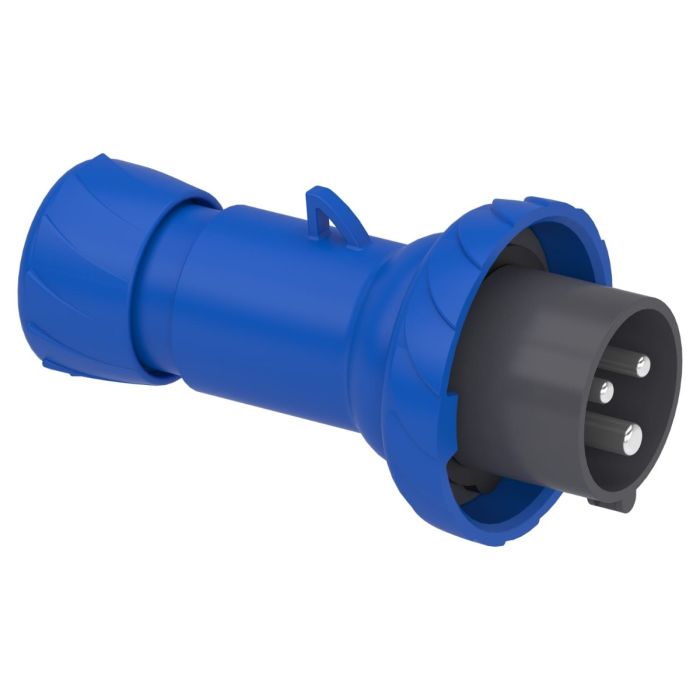

This Pratika industrial wander plug with captive screws connection is straight. It has 2P+E poles, rated current is 16A and the operating voltage is 230VAC. The dimensions of the base plate are (W) 73mm x (H) 129mm. The degree of protection is IP67 and IK08. The fire resistance is 850°C. The cable entries are for flexible or rigid cables. The size of the cable entries in 16A is 8mm to 15mm for 1mm² to 4mm² cables. The color of the socket is light grey (RAL 7035) with blue easy identification of the operating voltage. The frequency is 50Hz or 60Hz. The clock position of contact is 6h.
| Specifications | |
Main | |
| Range | Mureva |
| Product or component type | Wander plug |
| Device short name | Mureva plug |
| Plug, socket category | Low voltage |
| Poles description | 2P + E |
| Network type | AC |
| Outlet standard | Industrial |
| Complementary | |
| Plug, socket, control station shape | Straight |
| [In] rated current | 16 A |
| [Ue] rated operational voltage | 200...250 V |
| Network frequency | 50/60 Hz |
| ground lug clockwise position | 6 h |
| Plug, socket material | Housing: self-extinguishing engineering polymer |
| Contacts material | Sleeves: brass |
| Connections - terminals | Captive screws |
| Cable cross section | 1…4 mm² |
| Cable outer diameter | 8…15 mm |
| Cable entry | Cable gland |
| Fair lead | |
| Thread type | Pg 16 |
| Net weight | 0.144 kg |
| height | 129 mm |
| Width | 73 mm |
| Depth | 73 mm |
| Colour | Grey (RAL 7035) |
| Voltage colour | Blue |
| Environment | |
| standards | IEC 60309-2 |
| IEC 60309-1 | |
| IP degree of protection | IP67 conforming to IEC 60529 |
| IK degree of protection | IK08 conforming to EN 62262 |
| Fire resistance | 850 °C conforming to IEC 60695-2-11 |
| Relative humidity | 50 % at 40 °C |
| 70 % at 30 °C | |
| 90 % at 20 °C | |
| Operating altitude | 2000 m |
| Ambient air temperature for operation | 35 °C ( 86400 s ) |
| -25…40 °C |
| Weight | 0.144000 |
|---|---|
| Brand | Schneider Electric |
| Model | PKE16M723 |
| Color | Blue |
| Depth [cm] | 7.3 |
| Width [cm] | 7.3 |
| Height [cm] | 12.9 |
| Range | Mureva |
| Family | HDCWD |
| Type | Wander plug |
| Poles | 2P + E |
| [In] Rated Current | 16 A |
| Voltage ~ Frequency | 50-60 Hz |
| IP Degree of Protection | IP67 |
| IK Degree of Protection | IK08 |
