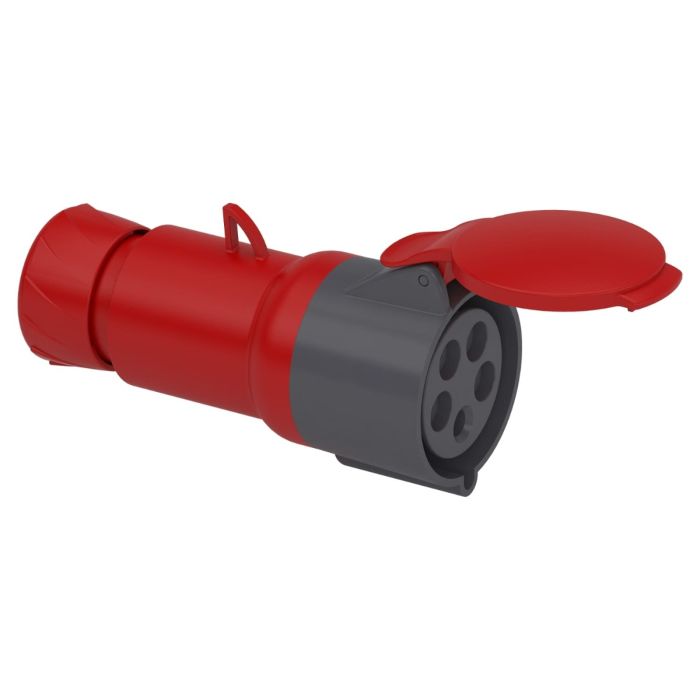

Schneider Electric Pratika Wander Socket, Straight, 32A, 3P + N + E, 380-415V AC, IP44
Product or component type: Wander socket
Numbers of poles: 3P + N + E
Network type: AC
You May Also Like:
Schneider Electric Mureva Styl, Box Cover with lid for Altira, WhiteSpecial Price EGP 101 Regular Price EGP 201
Schneider Electric Pratika Wander Socket, Straight, 32A, 2P + E, 200-250V AC, IP44Special Price EGP 659 Regular Price EGP 793
Schneider Electric Pratika Socket, Screw Straight, 16A, 3P + N + E, 380-415V AC PanelSpecial Price EGP 1,172 Regular Price EGP 1,412
Schneider Electric Pratika Socket, Screw Straight, 16A, 3P + N + E, 380-415V AC, PanelSpecial Price EGP 518 Regular Price EGP 624
Schneider Electric Pratika Wander Socket, Straight, 32A, 3P + N + E, 380-415V AC, IP67Special Price EGP 1,581 Regular Price EGP 1,904
Schneider Electric Pratika Wander Plug, Straight, 16A, 2P + E, 200-250V AC, IP67Special Price EGP 408 Regular Price EGP 491
Schneider Electric Pratika Socket, Screw Straight, 16A, 3P + E, 380-415V AC PanelSpecial Price EGP 429 Regular Price EGP 517
Schneider Electric Pratika Wander Socket, Straight, 16A, 3P + E, 380-415V AC, IP67Special Price EGP 998 Regular Price EGP 1,202
Schneider Electric Pratika Socket, Screw Straight, 32A, 3P + N + E, 380-415V AC, Panel MountSpecial Price EGP 1,272 Regular Price EGP 1,532
Schneider Electric Pratika Wander Socket, Straight, 32A, 3P + E, 380-415V AC, IP44Special Price EGP 667 Regular Price EGP 803
Schneider Electric Pratika Socket Screw Angled 32A, 3P + N + E, 380-415V AC, Wall-MountedSpecial Price EGP 1,500 Regular Price EGP 1,807
Schneider Electric Mureva Styl, Surface Mounted Box, 2 gangs Horizontal, WhiteSpecial Price EGP 206 Regular Price EGP 412
The Schneider Electric PKF32M435 Pratika Wander Socket is a robust and reliable solution for temporary electrical connections in industrial and outdoor environments. This straight socket features a current rating of 32A and provides a 3P (three-phase) connection with neutral (N) and earth (E) for a complete power supply solution. It operates within a voltage range of 380-415V AC, making it suitable for various electrical equipment and machinery.
Key Features:
Industrial-Grade: Built to withstand the rigors of industrial and outdoor settings.
High Current Rating: With a 32A rating, it can handle the power demands of industrial equipment.
Three-Phase Connection: Provides a complete three-phase connection with neutral and earth for versatile applications.
Wide Voltage Range: Compatible with voltage levels in the range of 380-415V AC.
IP44 Protection: Offers protection against dust and water splashes, making it suitable for outdoor use.
Product Specifications:
Current Rating: 32A
Connection: 3P (Three-Phase) + N (Neutral) + E (Earth)
Voltage Range: 380-415V AC
IP Rating: IP44 (Protection against dust and water splashes)
The Schneider Electric PKF32M435 Pratika Wander Socket Straight is an ideal solution for temporary electrical connections in demanding industrial and outdoor environments.
| Specifications | |
Main | |
| Range | Mureva |
| Product or component type | Wander socket |
| Device short name | Mureva screw |
| Plug, socket category | Low voltage |
| Poles description | 3P + N + E |
| Network type | AC |
| Outlet standard | Industrial |
| Complementary | |
| Plug, socket, control station shape | Straight |
| [In] rated current | 32 A |
| [Ue] rated operational voltage | 380...415 V |
| Network frequency | 50/60 Hz |
| ground lug clockwise position | 6 h |
| Plug, socket material | Housing: self-extinguishing engineering polymer |
| Contacts material | Sleeves: brass |
| Connections - terminals | Captive screws |
| Cable cross section | 2.5…10 mm² |
| Cable outer diameter | 11.5…21 mm |
| Cable entry | Cable gland |
| Fair lead | |
| Thread type | Pg 21 |
| Net weight | 0.3 kg |
| height | 106 mm |
| Width | 106 mm |
| Depth | 172 mm |
| Colour | Grey (RAL 7035) |
| Voltage colour | Red |
| Environment | |
| standards | IEC 60309-2 |
| IEC 60309-1 | |
| IP degree of protection | IP44 conforming to IEC 60529 |
| IK degree of protection | IK08 conforming to EN 62262 |
| Fire resistance | 850 °C conforming to IEC 60695-2-1 |
| Relative humidity | 50 % at 40 °C |
| 70 % at 30 °C | |
| 90 % at 20 °C |
| Weight | 0.300000 |
|---|---|
| Brand | Schneider Electric |
| Model | PKF32M435 |
| Color | Red |
| Depth [cm] | 17.2 |
| Width [cm] | 10.6 |
| Height [cm] | 10.6 |
| Range | Mureva |
| Family | HDCWD |
| Type | Socket-Outlet |
| Poles | 3P |
| [In] Rated Current | 32A |
| IP Degree of Protection | IP44 |
| IK Degree of Protection | IK08 |
