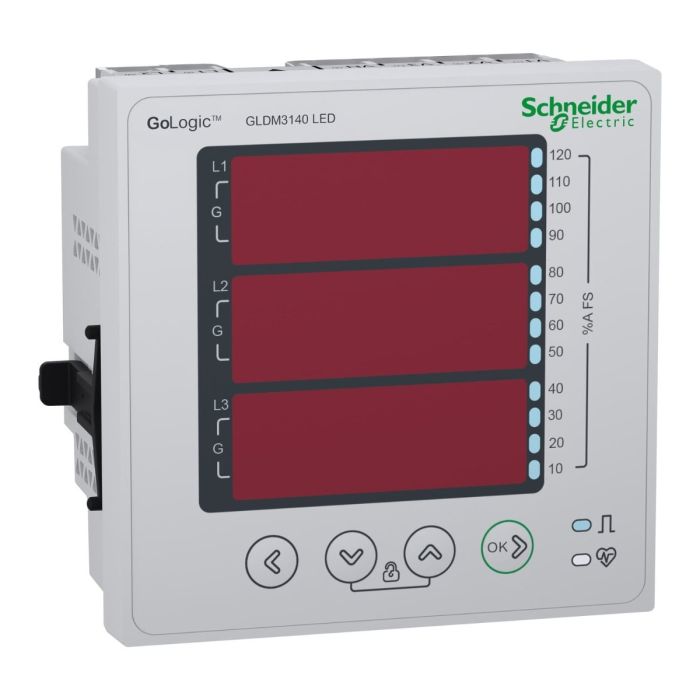

main product photo

Schneider Electric Power And Energy Meter, Gologic DM3141, Volt, Amps And Frequency Meter, LED, Power Factor, Class 1.0 Without Communication

Be the first to review this product
Out of stock
SKU
METSEGLDM3141NC
Schneider Electric
Special Price EGP 2,229 Regular Price EGP 3,160
Estimated Time of Delivery is 72 Hours.
Ship to EGCalculate Shipping Cost

Installment Plans

The Installment Amount Is Approximate. The Actual Amount Will Be Shown During The Payment Process.

  • Bank Installment
  • Direct Installment
Add to Compare
Quick Overview

Range: Go Series
Product type: AF PF meter
Device application:
Remote monitoring
Motor control
Power distribution
Building management system
Energy monitoring

This digital panel meter is part of the GoLogic Panel Meter Series.

Main


RangeGo Series
product nameGoLogic DM3000
Device short nameGLDM3140 LED
Product or component typeVAF PF meter
Complementary
Device applicationRemote monitoring
 Motor control
 Power distribution
 Building management system
 Energy monitoring
Type of measurementCurrent
 Voltage
 Frequency
 RPM
Metering typeUnbalance current
 Calculated neutral current
 Unbalance voltage
 Rotation speed
 Phase currents
 Voltage U21, U32, U13, V1, V2, V3
 Frequency
 Average voltage Vavg
 Average current Iavg
 Power factor
Counter functionsPower interruption
 ON hour counting
[Us] rated supply voltage48...277 V AC 45...65 Hz
 48...277 V DC
Network frequency50 Hz
 60 Hz
[In] rated current1 A
 5 A
type of network2P + N
 2P
 3P + N
 3P
 1P + N
Maximum power consumption in VA4 VA at 240 V between phase and neutral
Maximum power consumption in W2 W at 240 V
Display type8 segments LED
Display colourRed
Messages display capacity3 fields of 4 characters
Display digits12 digit(s) - 14.2 mm in height
Communication of dataReading of measurements
 Instantaneous and demand values
 Revolution speed
 All counters
Tamperproof of settingsProtected by access code
Sampling rate32 samples/cycle
Measurement current10…6000 mA
SignalCurrent 0.005...10 A (impedance 0.3 MOhm)6 x
Measurement voltage80…480 V AC 50...60 Hz between phases
 46…277 V AC 50...60 Hz between phase and neutral
 100…999000 V AC 50...60 Hz with external VT
 35…600 V AC 50...60 Hz full voltage range
Frequency measurement range48…52 Hz
 58…62 Hz
Measurement accuracyActive energy +/- 1 %
 Reactive energy +/- 2 %
 Apparent energy +/- 1 %
 Active power +/- 1 %
 Reactive power +/- 1 %
 Apparent power +/- 1 %
 Current +/- 0.5 %
 Voltage +/- 0.5 %
 Frequency +/- 0.05 % 48...52 Hz / 58...62 Hz
 Frequency +/- 0.2 % 30...70 Hz
 Power factor +/- 0.01
 Harmonic distorsion (I THD & U THD) +/- 5 %
Accuracy classClass 1 active energy conforming to IEC 62053-21
 Class 2 reactive energy conforming to IEC 62053-23
 Class 1 apparent energy
 Class 1 active power
 Class 1 reactive power
 Class 1 apparent power
 Class 1 current
 Class 1 voltage
 Class 1 power factor
 Class 5 harmonic distorsion (I THD & U THD)
Demand intervals1 s
Local signallingGreen LED: activity
 Red LED: output signal 1...9999000 pulse/ k_h (kWh, kVAh, kVARh)
MaterialPolycarbonate
Flame retardanceV-0 conforming to UL 94
Mounting modeFlush-mounted
Mounting supportFramework
Installation categoryIII
Type of installationIndoor installation
Measurement categoryCategory III 80…480 V
Electrical insulation classClass II
Connections - terminalsCurrent circuit: screw clamp terminals (bottom) 2.08…3.31 mm² cable(s)
 Voltage circuit: screw clamp terminals (top) 0.82…3.31 mm² cable(s)
 Control circuit: screw clamp terminals (top) 0.82…3.31 mm² cable(s)
Tightening torqueCurrent circuit: 0.9…1 N.m Philips No 2 screwdriver
 Voltage circuit: 0.9…1 N.m Philips No 2 screwdriver
 Control circuit: 0.9…1 N.m Philips No 2 screwdriver
Wire stripping lengthCurrent circuit: 3.68 mm
 Voltage circuit: 7 mm
 Control circuit: 7 mm
StandardsIEC 61010-1:ed. 3
 UL 61010-1:ed. 3
Product certificationsCE conforming to IEC 61010-1
 CULus conforming to UL 61010-1
 CULus conforming to CSA C22.2 No 61010-1
 RCM
 EAC
Width96 mm
DepthOutside : 13.9 mm
 Panel : 48.8 mm
Height96 mm
Net weight300 g
Environment
Electromagnetic compatibilityElectrostatic discharge conforming to IEC 61000-4-2
 Radiated radio-frequency electromagnetic field immunity test conforming to IEC 61000-4-3
 Electrical fast transient/burst immunity test conforming to IEC 61000-4-4
 Surge immunity test conforming to IEC 61000-4-5
 Conducted RF disturbances conforming to IEC 61000-4-6
 Magnetic field at power frequency conforming to IEC 61000-4-8
 Voltage dips and interruptions immunity test conforming to IEC 61000-4-11
 Emission tests conforming to FCC part 15 class A
 Emission tests conforming to FCC part 15 Subpart C
 Emission tests conforming to FCC part 15 Subpart E
Overvoltage categoryIII
IP degree of protectionIP51 front: conforming to IEC 60529
 IP30 body: conforming to IEC 60529
Relative humidity5…95 % at 50 °C
Pollution degree2
Ambient air temperature for operation-10…60 °C
Ambient air temperature for storage-20…70 °C
Operating altitude<= 2000 m
Service life7 year(s)
More Information
Weight3.000000
BrandSchneider Electric
ModelMETSEGLDM3141NC
ColorWhite
RangeMET Easy&Basic
FamilyDPLVP
[In] Rated Current1 A, 5 A
Voltage ~  Frequency50-60 Hz
Display 8 segments LED
