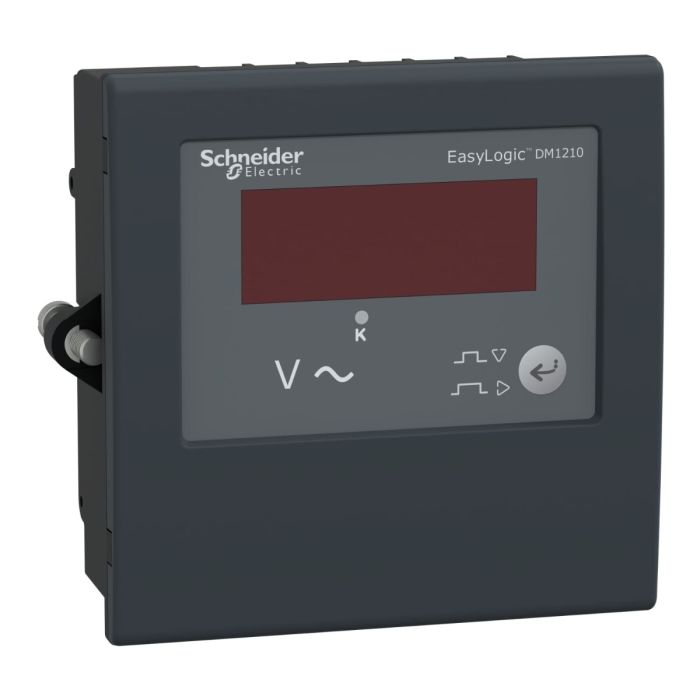

Schneider Electric EasyLogic METSEDM1210 Power and Energy Meter, 1-Phase, Class 0.5S
Product name: EasyLogicDM1000
Device application: Test laboratories Load control GenSet
Poles description: 1P + N
Display type: LED
Introducing the Schneider Electric EasyLogic METSEDM1210 Power and Energy Meter, a high-precision, single-phase meter designed to provide accurate measurement and real-time monitoring of electrical parameters. This meter is a versatile solution suitable for a wide range of applications, making it an essential tool for businesses and facility management.
Key Features:
Comprehensive Measurements: The meter offers precise measurements for voltage, current, power factor, active power, reactive power, apparent power, frequency, and more.
Class 0.5S Accuracy: With a Class 0.5S accuracy rating, it provides highly reliable data for critical power quality analysis and billing applications.
Real-Time Monitoring: Equipped with an intuitive LCD display, the meter allows real-time data visualization for convenient monitoring.
Power and Energy Measurement: Measure both power and energy parameters, making it a versatile tool for various applications.
Data Communication: The meter is designed for seamless integration into your existing systems with RS485 communication capability.
Technical Specifications:
Measurement Parameters: Voltage, Current, Power Factor, Active Power, Reactive Power, Apparent Power, Frequency, and more.
Accuracy Class: 0.5S
Phase: Single-phase
Communication: RS485
| Specifications | |
Main | |
| Range | EasyLogic |
| Product name | EasyLogic DM1000 |
| Device short name | DM1210 |
| Product or component type | Voltmeter |
| Device application | Test laboratories |
| Load control | |
| GenSet | |
| Complementary | |
| Poles description | 1P + N |
| Type of measurement | Voltage |
| [Us] rated supply voltage | 100...230 V AC +/- 20 % |
| 100...230 V DC +/- 20 % | |
| Supply frequency | 50/60 Hz +/- 5 Hz |
| Network frequency | 60 Hz |
| 50 Hz | |
| Maximum power consumption in VA | 3 VA at 230 V AC |
| Display type | LED |
| Display digits | 4 |
| full scale display | ١٠٠٠ |
| Control type | Selector switch built-in |
| Analogue input type | Voltagesingle phase |
| Measurement voltage | 25…277 V AC phase to neutral, 50/60 Hz +/- 5 Hz |
| 44…480 V AC phase to phase, 50/60 Hz +/- 5 Hz | |
| Accuracy | Voltage +/- 0.5 % of full scale for class 0.5 |
| Device mounting | Flush |
| mounting support | Panel |
| Type of installation | Indoor |
| Measurement category | Category III |
| standards | IEC 61326 |
| Product certifications | CE conforming to IEC 61010-1 |
| Environment | |
| Electromagnetic compatibility | Conducted and radiated emissions class A conforming to CISPR 11 |
| Electrostatic discharge conforming to IEC 61000-4-2 | |
| Electrical fast transient/burst immunity test conforming to IEC 61000-4-4 | |
| Surge immunity test conforming to IEC 61000-4-5 | |
| Conducted RF disturbances conforming to IEC 61000-4-6 | |
| Magnetic field at power frequency conforming to IEC 61000-4-8 | |
| Voltage dips and interruptions immunity test conforming to IEC 61000-4-11 | |
| Harmonics conforming to IEC 61000-3-2 | |
| Limitation of voltage changes, voltage fluctuations and flicker in low-voltage conforming to IEC 61000-3-3 | |
| IP degree of protection | Front panel: IP50 |
| Body: IP30 | |
| Relative humidity | 5…95 % |
| Pollution degree | 2 |
| Ambient air temperature for operation | -10…60 °C |
| Ambient air temperature for storage | -25…70 °C |
| Colour | Black |
| Width | 96 mm |
| height | 96 mm |
| Depth | 38 mm |
| Cut-out dimensions | 92 x 92 mm |
| Net weight | 160 g |
| Weight | 0.250000 |
|---|---|
| Brand | Schneider Electric |
| Model | METSEDM1210 |
| Depth [cm] | 3.8 |
| Width [cm] | 9.6 |
| Height [cm] | 9.6 |
| Range | MET Easy&Basic |
| Family | DPLVP |
