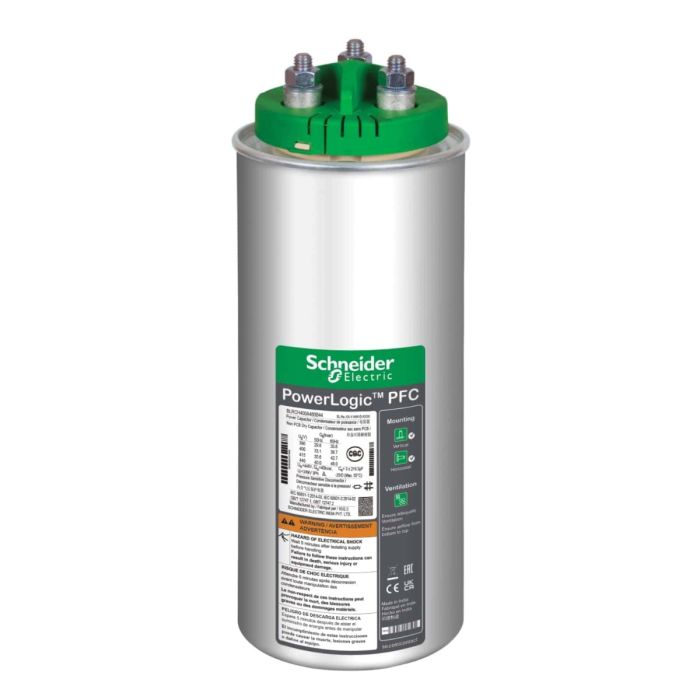

Schneider Electric VarPlus Can HDuty Capacitor, 40/48 kvar, 400 V, 50/60Hz
In stock
SKU
BLRCH400A480B40
Special Price EGP 10,369 Regular Price EGP 13,730
Schneider Electric VarPlus Can HDuty Capacitor, 40/48 kvar, 400 V, 50/60Hz is available to buy in increments of 1
Quick Overview
Range: PowerLogic
Product Type: Heavy duty capacitor
Series Name: HDuty
Installation Type: Indoor Installation
You May Also Like:
Schneider Electric VarPlus Can HDuty Capacitor, 25/30 kvar, 400 V, 50/60HzSpecial Price EGP 6,509 Regular Price EGP 9,431
Schneider Electric Power Factor controller, VarPlus Logic, VPL 12Special Price EGP 25,654 Regular Price EGP 40,721
Schneider Electric EasyCan Capacitor, 20/24 kvar, 400 V, 50/60HzSpecial Price EGP 3,079 Regular Price EGP 5,727
Schneider Electric VarPlus Can HDuty Capacitor, 20-24 kVar, 400V, 50-60HzSpecial Price EGP 5,207 Regular Price EGP 7,795
Schneider Electric HDuty Capacitor, 10.4/12.5 kvar, 400 V, 50/60HzSpecial Price EGP 3,142 Regular Price EGP 5,408
Schneider Electric VarPlus Can HDuty Capacitor, 15/18 kvar, 400 V, 50/60HzSpecial Price EGP 4,175 Regular Price EGP 6,379
Schneider Electric VarPlus Can HDuty Capacitor, 30/36 kvar, 400 V, 50/60HzSpecial Price EGP 7,810 Regular Price EGP 10,797
Schneider Electric EasyCan Capacitor, 15/18 kvar, 400 V, 50/60HzSpecial Price EGP 2,298 Regular Price EGP 4,894
Schneider Electric Heavy Duty PowerLogic PFC Capacitor, 22.7/27.2 kvar, 480V, 50/60HzSpecial Price EGP 5,880 Regular Price EGP 6,024
Schneider Electric Heavy Duty PowerLogic PFC Capacitor, 33.9/40.7 kvar, 480 V, 50/60HzSpecial Price EGP 8,798 Regular Price EGP 13,191
Schneider Electric Heavy Duty PowerLogic PFC Capacitor, 8.8/10.6 kvar, 480 V, 50/60HzSpecial Price EGP 2,981 Regular Price EGP 4,930
Schneider Electric VarPlus Can HDuty Capacitor, 7.5/9 kvar, 400 V, 50/60HzSpecial Price EGP 2,963 Regular Price EGP 5,188
Schneider Electric Power Factor Controller, VarPlus Logic, VPL 6Special Price EGP 18,214 Regular Price EGP 28,910
VarPlus Can capacitor are a reliable and flexible solution for power factor correction in stringent operating conditions. These capacitors are particularly used for higher voltage disturbances or when a few non-linear loads are present. The rated current of the capacitors must be in increased in order to cope with the circulation of the harmonic current. This capacitor provides a rated output power of 36.1 kVar at 380V AC, 50 Hz. Fastening assured by a ClampTite terminal. This component meet the standards IEC 60831-1 and IEC 60831-2. The case product weight is 5.3 kg.
Specifications:
Main | |
| Range | PowerLogic |
| Range of product | PowerLogic |
| Product or component type | Heavy duty capacitor |
| product name | PowerLogic PFC Capacitor |
| Network frequency | 50/60 Hz |
| Series name | HDuty |
| Network harmonic content | <= 20 % |
| Electrical parameters | 36.1 kvar 380 V 50 Hz |
| 43.3 kvar 380 V 60 Hz | |
| 40 kvar 400 V 50 Hz | |
| 48 kvar 400 V 60 Hz | |
| 43.1 kvar 415 V 50 Hz | |
| 51.7 kvar 415 V 60 Hz | |
| Maximum permissible voltage | 1.1 x Un (8 hours over 24 hours) |
| continuous overcurrent capacity | 1.8 x In |
| Rated voltage | 380…415 V AC 50/60 Hz |
| Complementary | |
| Dielectric losses | < 0.2 W/kvar |
| Power losses | < 0.5 W/kVAr |
| Capacitance tolerance | - 5 % to 10 % |
| Voltage test | 2.15 x Un AC between terminals for 10 s |
| <= 660 V - 3 kV AC between terminal and container for 10 s | |
| >= 660 V - 6 kV AC between terminal and container for 10 s | |
| Inrush current | 250 x In |
| Maximum switching operation per year | ٧٠٠٠ |
| Service life in hours | 130000 h |
| Dielectric material | Metallized polypropylene film with Zn/Al alloy, special resistivity & profile, special edge (wave cut) |
| Impregnation material | Non-PCB dry PUR resin |
| Biodegradable | |
| Type of installation | Indoor installation |
| Connections - terminals | Stud terminals |
| Mounting mode | Upright/horizontal |
| Diameter | 136 mm |
| Height | 321 mm |
| Net weight | 5.3 kg |
| Environment | |
| Standards | IEC 60831-1 |
| IEC 60831-2 | |
| IP degree of protection | IP00 |
| Operating altitude | 2000 m |
| Temperature class | D |
| Ambient air temperature for operation | -25…55 °C |
| Relative humidity | 95 % |
| Weight | 1.000000 |
|---|---|
| Brand | Schneider Electric |
| Model | BLRCH400A480B40 |
| Range | PFC |
| Family | DPLVP |
| Type | Heavy duty capacitor |
| Voltage ~ Frequency | 50-60 Hz |
| IP Degree of Protection | IP00 |
