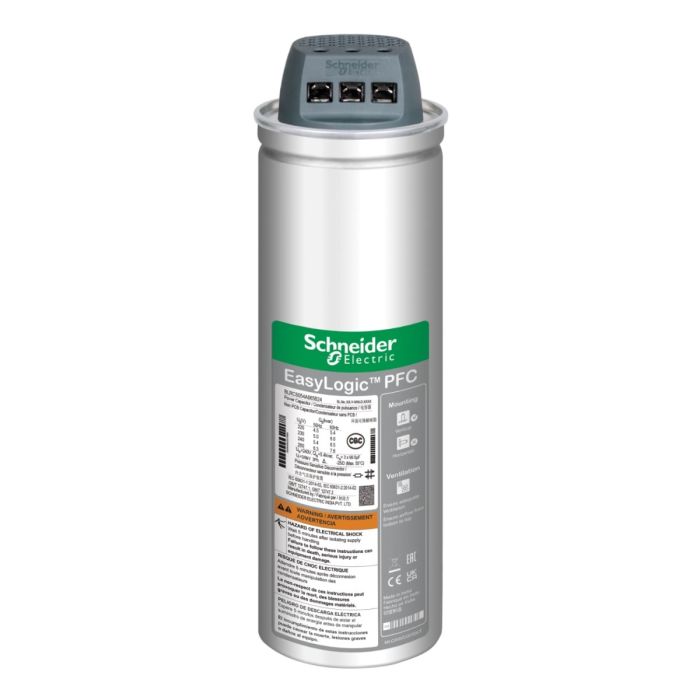

Schneider Electric EasyCan Capacitor - 20/24 kvar - 400 V - 50/60Hz

In stock
SKU
BLRCS200A240B40
EGP 5,454
Quick Overview

Product Type: Ordinary Service Capacitors
Series Name: EasyLogic PFC Capacitor
Protection Class: IP20
Installation Type: Indoor Installation

Specifications

Main


Product or component typeStandard duty capacitor
Network frequency50/60 Hz
Series nameEasyLogic PFC Capacitor
Network harmonic content<= 10 %
Electrical parameters18.1 kvar 380 V 50 Hz
 21.7 kvar 380 V 60 Hz
 20 kvar 400 V 50 Hz
 24 kvar 400 V 60 Hz
 21.5 kvar 415 V 50 Hz
 25.8 kvar 415 V 60 Hz
Maximum permissible voltage1.1 x Un (8 hours over 24 hours)
continuous overcurrent capacity1.5 x In
Rated voltage380…415 V AC 50/60 Hz
Complementary
dielectric losses< 0.2 W/kvar
Power losses< 0.5 W/kVAr
capacitance tolerance- 5 % to 10 %
Voltage test2.15 x Un AC between terminals for 10 s
 <= 660 V - 3 kV AC between terminal and container for 10 s
 >= 660 V - 6 kV AC between terminal and container for 10 s
inrush current200 x In
Maximum switching operation per year5000
Service life in hours100000 h
Dielectric materialMetallized polypropylene film with Zn/Al alloy,
Impregnation materialNon-PCB soft PUR resin
 Biodegradable
Type of installationIndoor installation
Connections - terminalsClampTite terminal
Mounting modeVertical
Diameter90 mm
height308 mm
Net weight2.3 kg
Environment
standardsIEC 60831-2
 IEC 60831-1
IP degree of protectionIP20
Operating altitude2000 m
Temperature classD
Ambient air temperature for operation-25…55 °C
Relative humidity95%
More Information
BrandSchneider Electric
ModelBLRCS200A240B40
Height [cm]30.8
Diameter [cm]9
