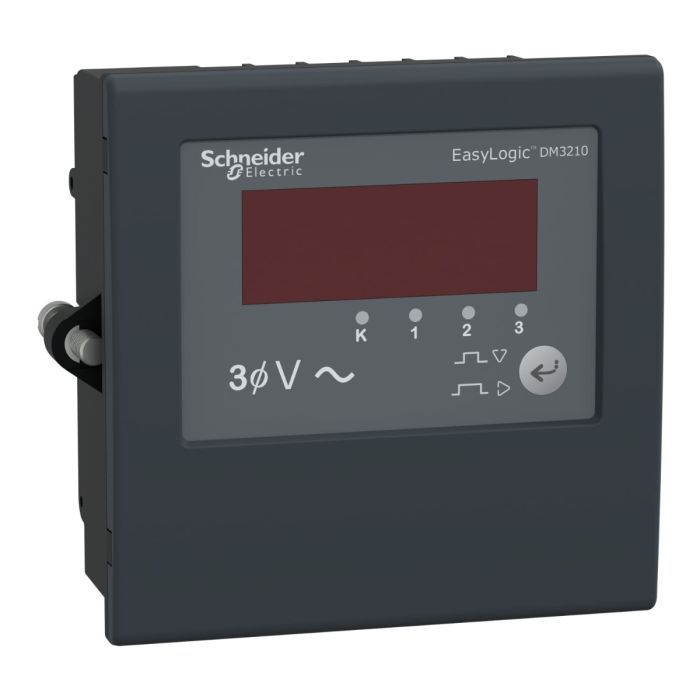

Schneider Electric EasyLogic METSEDM3210 Power and Energy Meter, 3-Phase, Class 0.5S
Product name: EasyLogic DM3000
Device application: Load control Test laboratories GenSet
Poles description: 3P 3P + N
Display type: LED
Introducing the Schneider Electric EasyLogic METSEDM3210 Power and Energy Meter, a high-precision, three-phase meter designed to provide accurate measurement and real-time monitoring of electrical parameters. This meter is a versatile solution suitable for a wide range of applications, making it an essential tool for businesses, industries, and facility management.
Key Features:
Comprehensive Measurements: The meter offers precise measurements for voltage, current, power factor, active power, reactive power, apparent power, frequency, and more.
Class 0.5S Accuracy: With a Class 0.5S accuracy rating, it provides highly reliable data for critical power quality analysis and billing applications.
Real-Time Monitoring: Equipped with an intuitive LCD display, the meter allows real-time data visualization for convenient monitoring.
Power and Energy Measurement: Measure both power and energy parameters, making it a versatile tool for various applications.
Data Communication: The meter is designed for seamless integration into your existing systems with RS485 communication capability.
Technical Specifications:
Measurement Parameters: Voltage, Current, Power Factor, Active Power, Reactive Power, Apparent Power, Frequency, and more.
Accuracy Class: 0.5S
Phase: Three-phase
Communication: RS485
| Specifications | |
Main | |
| Range | EasyLogic |
| Product name | EasyLogic DM3000 |
| Device short name | DM3210 |
| Product or component type | Voltmeter |
| Device application | GenSet |
| Test laboratories | |
| Load control | |
| Complementary | |
| Poles description | 3P |
| 3P + N | |
| Type of measurement | Voltage |
| [Us] rated supply voltage | 100...230 V AC +/- 20 % |
| 100...230 V DC +/- 20 % | |
| Supply frequency | 50/60 Hz +/- 5 Hz |
| Network frequency | 50 Hz |
| 60 Hz | |
| Maximum power consumption in VA | 3 VA at 230 V AC |
| Display type | LED |
| Display digits | 4 |
| full scale display | 999.9 |
| Control type | Selector switch built-in |
| Analogue input type | Voltagethree phase |
| Measurement voltage | 25…277 V AC phase to neutral, 50/60 Hz +/- 5 Hz |
| 44…480 V AC phase to phase, 50/60 Hz +/- 5 Hz | |
| Accuracy | Voltage +/- 0.5 % of full scale for class 0.5 |
| Device mounting | Flush |
| mounting support | Panel |
| Type of installation | Indoor |
| Measurement category | Category III |
| standards | IEC 61326 |
| Product certifications | CE conforming to IEC 61010-1 |
| Environment | |
| Electromagnetic compatibility | Conducted and radiated emissions class A conforming to CISPR 11 |
| Electrostatic discharge conforming to IEC 61000-4-2 | |
| Electrical fast transient/burst immunity test conforming to IEC 61000-4-4 | |
| Surge immunity test conforming to IEC 61000-4-5 | |
| Conducted RF disturbances conforming to IEC 61000-4-6 | |
| Magnetic field at power frequency conforming to IEC 61000-4-8 | |
| Voltage dips and interruptions immunity test conforming to IEC 61000-4-11 | |
| P degree of protection | Front panel: IP50 |
| Body: IP30 | |
| Relative humidity | 5…95 % |
| Pollution degree | 2 |
| Ambient air temperature for operation | -10…60 °C |
| Ambient air temperature for storage | -25…70 °C |
| Colour | Black |
| Width | 96 mm |
| height | 96 mm |
| Depth | 38 mm |
| Cut-out dimensions | 92 x 92 mm |
| Weight | 0.200000 |
|---|---|
| Brand | Schneider Electric |
| Model | METSEDM3210 |
| Depth [cm] | 3.8 |
| Width [cm] | 9.6 |
| Height [cm] | 9.6 |
| Range | MET Easy&Basic |
| Family | DPLVP |
