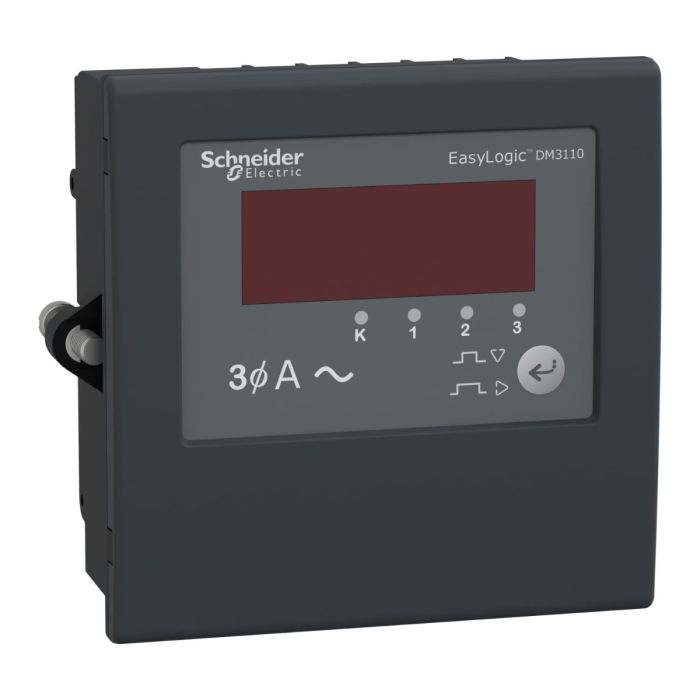

Schneider Electric EasyLogic METSEDM3110 Power and Energy Meter, 3-Phase, Class 0.5S
Out of stock
SKU
METSEDM3110
Special Price EGP 1,456 Regular Price EGP 1,915
Quick Overview
Range: EasyLogic
Product type: Ammeter
Device application: Load control Test laboratories GenSet
Poles description: 3P + N 3P
You May Also Like:
Schneider Electric VarPlus Can HDuty Capacitor, 25/30 kvar, 400 V, 50/60HzSpecial Price EGP 6,509 Regular Price EGP 9,431
Schneider Electric EasyLogic METSEDM1210 Power and Energy Meter, 1-Phase, Class 0.5SSpecial Price EGP 1,131 Regular Price EGP 1,488
Schneider Electric Power Factor controller, VarPlus Logic, VPL 12Special Price EGP 25,654 Regular Price EGP 40,721
Schneider Electric Voltmeter, GoLogic Panel Meter, DM3125, Three PhasesSpecial Price EGP 1,183 Regular Price EGP 1,503
Schneider Electric EasyCan Capacitor, 20/24 kvar, 400 V, 50/60HzSpecial Price EGP 3,079 Regular Price EGP 5,727
Schneider Electric VarPlus Can HDuty Capacitor, 20-24 kVar, 400V, 50-60HzSpecial Price EGP 5,207 Regular Price EGP 7,795
Schneider Electric HDuty Capacitor, 10.4/12.5 kvar, 400 V, 50/60HzSpecial Price EGP 3,142 Regular Price EGP 5,408
Schneider Electric VarPlus Can HDuty Capacitor, 15/18 kvar, 400 V, 50/60HzSpecial Price EGP 4,175 Regular Price EGP 6,379
Schneider Electric VarPlus Can HDuty Capacitor, 30/36 kvar, 400 V, 50/60HzSpecial Price EGP 7,810 Regular Price EGP 10,797
Schneider Electric EasyCan Capacitor, 15/18 kvar, 400 V, 50/60HzSpecial Price EGP 2,298 Regular Price EGP 4,894
Schneider Electric Heavy Duty PowerLogic PFC Capacitor, 22.7/27.2 kvar, 480V, 50/60HzSpecial Price EGP 5,880 Regular Price EGP 6,024
Schneider Electric Heavy Duty PowerLogic PFC Capacitor, 33.9/40.7 kvar, 480 V, 50/60HzSpecial Price EGP 8,798 Regular Price EGP 13,191
Schneider Electric Heavy Duty PowerLogic PFC Capacitor, 8.8/10.6 kvar, 480 V, 50/60HzSpecial Price EGP 2,981 Regular Price EGP 4,930
Schneider Electric VarPlus Can HDuty Capacitor, 40/48 kvar, 400 V, 50/60HzSpecial Price EGP 10,369 Regular Price EGP 13,730
Schneider Electric VarPlus Can HDuty Capacitor, 7.5/9 kvar, 400 V, 50/60HzSpecial Price EGP 2,963 Regular Price EGP 5,188
Schneider Electric Power Factor Controller, VarPlus Logic, VPL 6Special Price EGP 18,214 Regular Price EGP 28,910
This digital panel meter is part of the EasyLogic Digital Panel Meter Series. This panel meter replaces multiple analog meters through single digital meter. This is a three phases ampermeter digital panel meter. It offers a direct reading with auto scaling of values, a LED indication for phase identification and a inbuild selector switch. The meter has a 4 digits, seven segments, 15 mm height and bright red LED display. Mechanical dimensions are 96 mm in width, 96 mm in height and 52 mm in depth.
Specifications:
| Main | |
| Range | EasyLogic |
| product name | EasyLogic DM3000 |
| Device short name | DM3110 |
| Product or component type | Ammeter |
| Device application | Load control |
| Test laboratories | |
| GenSet | |
| Complementary | |
| Poles description | 3P + N |
| 3P | |
| Type of measurement | Current |
| [Us] rated supply voltage | 100...230 V AC +/- 20 % |
| 100...230 V DC +/- 20 % | |
| Supply frequency | 50/60 Hz +/- 5 Hz |
| Network frequency | 60 Hz |
| 50 Hz | |
| Maximum power consumption in VA | 3 VA at 230 V AC |
| Display type | LED |
| Display digits | 4 |
| Full scale display | 999.9 |
| Control type | Selector switch built-in |
| Analogue input type | Current 0...5 Athree phase |
| Measurement current | 1/5 A, 50…6000 mA AC, 50/60 Hz +/- 5 Hz |
| Accuracy | Current +/- 0.5 % of full scale for class 0.5 |
| Device mounting | Flush |
| Mounting support | Panel |
| Type of installation | Indoor |
| Measurement category | Category III |
| Standards | IEC 61326 |
| Product certifications | CE conforming to IEC 61010-1 |
| Environment | |
| Electromagnetic compatibility | Conducted and radiated emissions class A conforming to CISPR 11 |
| Electrostatic discharge conforming to IEC 61000-4-2 | |
| Electrical fast transient/burst immunity test conforming to IEC 61000-4-4 | |
| Surge immunity test conforming to IEC 61000-4-5 | |
| Conducted RF disturbances conforming to IEC 61000-4-6 | |
| Magnetic field at power frequency conforming to IEC 61000-4-8 | |
| Voltage dips and interruptions immunity test conforming to IEC 61000-4-11 | |
| Harmonics conforming to IEC 61000-3-2 | |
| Limitation of voltage changes, voltage fluctuations and flicker in low-voltage conforming to IEC 61000-3-3 | |
| IP degree of protection | Front panel: IP50 |
| Body: IP30 | |
| Relative humidity | 5…95 % |
| pollution degree | 2 |
| Ambient air temperature for operation | -10…60 °C |
| Ambient air temperature for storage | -25…70 °C |
| Colour | Black |
| Width | 96 mm |
| Height | 96 mm |
| Depth | 38 mm |
| Cut-out dimensions | 92 x 92 mm |
| Product weight | 220 g |
| Weight | 0.250000 |
|---|---|
| Brand | Schneider Electric |
| Model | METSEDM3110 |
| Depth [cm] | 3.8 |
| Width [cm] | 9.6 |
| Height [cm] | 9.6 |
| Range | MET Easy&Basic |
| Family | DPLVP |
| Type | Ammeter |
