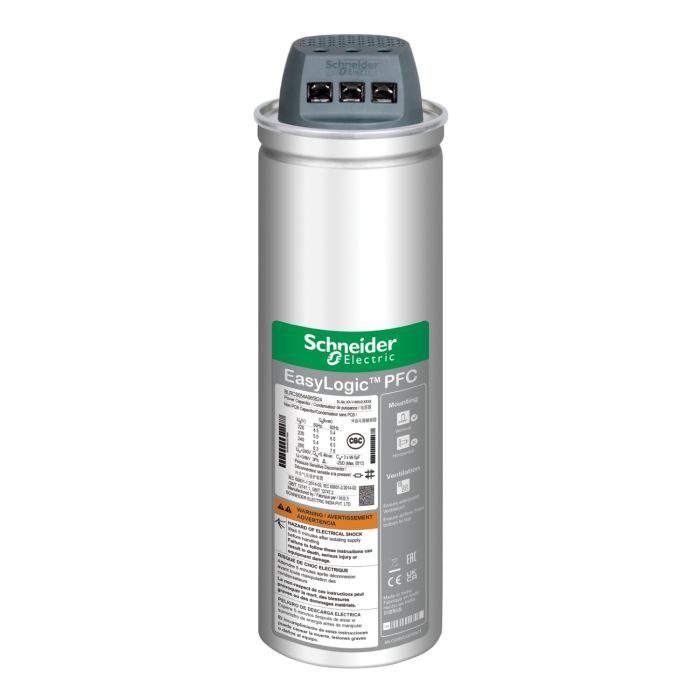

Schneider Electric EasyCan Capacitor, 15/18 kvar, 440 V, 50/60Hz
Out of stock
SKU
BLRCS150A180B44
Special Price EGP 2,298 Regular Price EGP 5,387
Quick Overview
Range: EasyLogic
Product type: Standard duty capacitor
Network frequency: 50/60 Hz
Rated voltage: 440 V AC 50/60 Hz
You May Also Like:
Schneider Electric VarPlus Can HDuty Capacitor, 25/30 kvar, 400 V, 50/60HzSpecial Price EGP 6,509 Regular Price EGP 9,431
Schneider Electric Power Factor controller, VarPlus Logic, VPL 12Special Price EGP 25,654 Regular Price EGP 40,721
Schneider Electric EasyCan Capacitor, 20/24 kvar, 400 V, 50/60HzSpecial Price EGP 3,079 Regular Price EGP 5,727
Schneider Electric VarPlus Can HDuty Capacitor, 20-24 kVar, 400V, 50-60HzSpecial Price EGP 5,207 Regular Price EGP 7,795
Schneider Electric HDuty Capacitor, 10.4/12.5 kvar, 400 V, 50/60HzSpecial Price EGP 3,142 Regular Price EGP 5,408
Schneider Electric VarPlus Can HDuty Capacitor, 15/18 kvar, 400 V, 50/60HzSpecial Price EGP 4,175 Regular Price EGP 6,379
Schneider Electric VarPlus Can HDuty Capacitor, 30/36 kvar, 400 V, 50/60HzSpecial Price EGP 7,810 Regular Price EGP 10,797
Schneider Electric EasyCan Capacitor, 15/18 kvar, 400 V, 50/60HzSpecial Price EGP 2,298 Regular Price EGP 4,894
Schneider Electric Heavy Duty PowerLogic PFC Capacitor, 22.7/27.2 kvar, 480V, 50/60HzSpecial Price EGP 5,880 Regular Price EGP 6,024
Schneider Electric Heavy Duty PowerLogic PFC Capacitor, 33.9/40.7 kvar, 480 V, 50/60HzSpecial Price EGP 8,798 Regular Price EGP 13,191
Schneider Electric Heavy Duty PowerLogic PFC Capacitor, 8.8/10.6 kvar, 480 V, 50/60HzSpecial Price EGP 2,981 Regular Price EGP 4,930
Schneider Electric VarPlus Can HDuty Capacitor, 40/48 kvar, 400 V, 50/60HzSpecial Price EGP 10,369 Regular Price EGP 13,730
Schneider Electric VarPlus Can HDuty Capacitor, 7.5/9 kvar, 400 V, 50/60HzSpecial Price EGP 2,963 Regular Price EGP 5,188
Schneider Electric Power Factor Controller, VarPlus Logic, VPL 6Special Price EGP 18,214 Regular Price EGP 28,910
EasyCan capacitor are designed to work in slightly polluted netwroks with Detuned reactors. These capacitors are used for standard operating conditions,and when no significant non-linear loads are present. These capacitor are the right choice to maximize the savings in an electrical system which is stable. This capacitor provides a rated output power of 15 kVar at 440V AC,50 Hz. Fastening assured by a ClampTite terminal. This component meet the standards IEC 60831-1 and IEC 60831-2. The case product weight is 1.3 kg.
Specifications:
| Main | |
| Range | EasyLogic |
| Product or component type | Standard duty capacitor |
| Product name | EasyLogic PFC Capacitor |
| Network frequency | 50/60 Hz |
| Series name | EasyLogic PFC Capacitor |
| Network harmonic content | <= 10 % |
| Electrical parameters | 15 kvar 440 V 50 Hz |
| 18 kvar 440 V 60 Hz | |
| Maximum permissible voltage | 1.1 x Un (8 hours over 24 hours) |
| continuous overcurrent capacity | 1.5 x In |
| Rated voltage | 440 V AC 50/60 Hz |
| Complementary | |
| Dielectric losses | < 0.2 W/kvar |
| Power losses | < 0.5 W/kVAr |
| Capacitance tolerance | - 5 % to 10 % |
| Voltage test | 2.15 x Un AC between terminals for 10 s |
| <= 660 V - 3 kV AC between terminal and container for 10 s | |
| >= 660 V - 6 kV AC between terminal and container for 10 s | |
| Inrush current | 200 x In |
| Maximum switching operation per year | ٥٠٠٠ |
| Service life in hours | 100000 h |
| Dielectric material | Metallized polypropylene film with Zn/Al alloy, |
| Impregnation material | Non-PCB soft PUR resin |
| Biodegradable | |
| Type of installation | Indoor installation |
| Connections - terminals | ClampTite terminal |
| Mounting mode | Vertical |
| Diameter | 75 mm |
| Height | 308 mm |
| Net weight | 1.3 kg |
| Environment | |
| Standards | IEC 60831-2 |
| IEC 60831-1 | |
| IP degree of protection | IP20 |
| Operating altitude | 2000 m |
| Temperature class | D |
| Ambient air temperature for operation | -25…55 °C |
| Relative humidity | 95% |
| Weight | 3.000000 |
|---|---|
| Brand | Schneider Electric |
| Model | BLRCS150A180B44 |
| Range | PFC |
| Family | DPLVP |
| IP Degree of Protection | IP20 |
