Schneider Electric Tesys Vario, Emergency Stop Switch Disconnector,25 A, Back Of Enclosure
Out of stock
SKU
VCCF0
Special Price EGP 2,090 Regular Price EGP 3,801
Quick Overview
Range: TeSys
Product Type: Emergency stop switch disconnector
Performance Level: High performance
Poles: 3P
You May Also Like:
Schneider Electric TeSys-F Contactor, 3P, 3-NO, AC3, 440V, 115A, 220V AC CoilSpecial Price EGP 30,083 Regular Price EGP 54,697
Schneider Electric Tesys F Contactor, 3P, 3-NO, AC3, 440V, 150A, Coil 220V ACSpecial Price EGP 32,021 Regular Price EGP 58,220
Schneider Electric TeSys LRD thermal overload relays - 60...100 A - class 20Special Price EGP 17,838 Regular Price EGP 32,433
Schneider Electric TeSys LRF Electronic Thermal Overload Relay, 60-100 A, Class 10Special Price EGP 13,104 Regular Price EGP 23,826
Schneider Electric TeSys F, Contactor Coil, LX1FH, 24 V AC 40...400 HzSpecial Price EGP 5,057 Regular Price EGP 9,194
Schneider Electric TeSys Control Switch Disconnector, For ON Emergency Stop, 80A, 4 Screws Fixing, For Mounting at Back of an EnclosureSpecial Price EGP 4,048 Regular Price EGP 7,360
Schneider Electric TeSys Vario Emergency Stop Switch Disconnector, 32 A, Back of EnclosureSpecial Price EGP 2,283 Regular Price EGP 4,151
Schneider Electric Tesys F Contactor Coil LX1FJ, 110, 120V AC, 40, 400HzSpecial Price EGP 16,014 Regular Price EGP 29,116

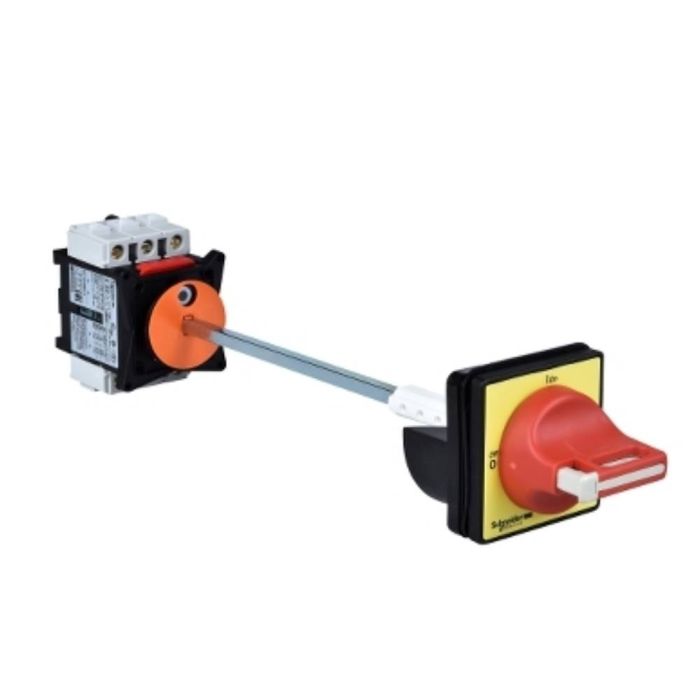

TeSys Vario switch disconnector for mounting at back of an enclosure,3 poles,25A/690V,for motor switching applications up to 7.5kW@400V AC-23. Complete unit composed of a switch body V0,an extension shaft VZ17,a door interlock plate KZ32,a red handle with yellow 60x60mm front plate KCF1PZ. Intended for main and emergency stop switch disconnecting usage. Padlockable handle,for 3 padlocks (to be ordered separately). Handle with 4 screws fixing on door,ensuring IP65 to the mounting. Possible distance between back of enclosure and door 300-330mm. Multi standards certified (IEC,UL,CSA,CCC,EAC,Marine),Green Premium compliant (RoHS/REACh).
Specifications:
| Main | |
| Range | TeSys |
| Product Name | TeSys VARIO |
| Device Short Name | VCCF |
| Product Type | Emergency stop switch disconnector |
| Complementary | |
| Device Composition | Shaft extension |
| Switch | |
| Handle | |
| Mounting Support | Handle: door |
| Switch: symmetrical rail | |
| Switch: plate | |
| Mounting Method | By 4 screws for handle |
| By clips for switch | |
| By screws for switch | |
| Performance Level | High performance |
| Number of Poles | 3P |
| Contact Type and Composition | 3 NO |
| [Ue] IEC Rated Operational Voltage | 690 V AC 50/60 Hz |
| IEC Rated Operational Power in W | 11 kW at 500 V (AC-23A) |
| 11 kW at 690 V (AC-3) | |
| 15 kW at 690 V (AC-23A) | |
| 4 kW at 230...240 V (AC-3) | |
| 5.5 kW at 400...415 V (AC-3) | |
| 7.5 kW at 500 V (AC-3) | |
| 5.5 kW at 230...240 V (AC-23A) | |
| 7.5 kW at 400...415 V (AC-23A) | |
| [Ie] Rated Operational Current | 14.5 A AC-23 Ue: 400 V |
| [Ith] Conventional Free Air Thermal Current | 25 A |
| [Ithe] Conventional Enclosed Thermal Current | 20 A |
| Making Capacity ( I Rms) | 250 A at 400 V AC-21A |
| 250 A at 400 V AC-22A | |
| 250 A at 400 V AC-23A | |
| Breaking Capacity | 200 A at 400 V (AC-21A) |
| 200 A at 400 V (AC-22A) | |
| 200 A at 400 V (AC-23A) | |
| Rated Conditional Short Circuit Current | 10 kA at 400 V - associated fuse 25 A aM |
| 10 kA at 400 V - associated fuse 25 A gG | |
| [Icm] Rated Short Circuit Making Capacity | 1 kA at 400 V at Ipeak |
| [Icw] Rated Short Time Withstand Current | 300 A at 400 V duration: 1 s |
| [Uimp] Rated Impulse Withstand Voltage | 8 kV |
| Suitability for Isolation | Yes |
| Network Type | AC |
| DC | |
| Intermittent Duty Class | 30 |
| Control Type | Rotary handle |
| Rotary Handle Mounting Style | Extended |
| Handle Color | Red |
| Handle Front Plate Color | Yellow |
| Rotary Handle Padlocking | 1 to 3 padlocks 4…8 mm |
| Marking | 0 - 1 |
| Mechanical Durability | 100000 cycles |
| Electrical Durability | 100000 cycles AC-21 |
| 30000 cycles DC-1...5 | |
| IEC Terminal Connection | Power circuit: screw clamp terminals10 mm² - solid |
| Power circuit: screw clamp terminals6 mm² - flexible - with cable end | |
| Tightening Torque | Power circuit: 2.1 N.m - on screw clamp terminals |
| Base Dimension | 60 x 60 mm |
| Height | 74 mm |
| Width | 60 mm |
| Product Weight | 0.527 kg |
| Environment | |
| Standards | IEC 60947-3 |
| Product Certifications | UL |
| CSA | |
| CCC | |
| GL | |
| UKCA | |
| Degree of Protection | IP20 conforming to IEC 60529 |
| IP65 | |
| Protective Treatment | TC |
| Mechanical Robustness | Vibrations 10...150 Hz (1 gn) conforming to IEC 60068-2-6 |
| Shocks 11 ms (30 Gn) conforming to IEC 60068-2-27 | |
| Ambient Air Temperature for Operation | -20…50 °C |
| Fire Resistance | 960 °C conforming to IEC 60695-2-1 |
| Compatibility Code | Main switch disconnector |
| Weight | 3.000000 |
|---|---|
| Brand | Schneider Electric |
| Model | VCCF0 |
| Range | TeSys F |
| Family | PPCTR |
| Poles | 3P |
