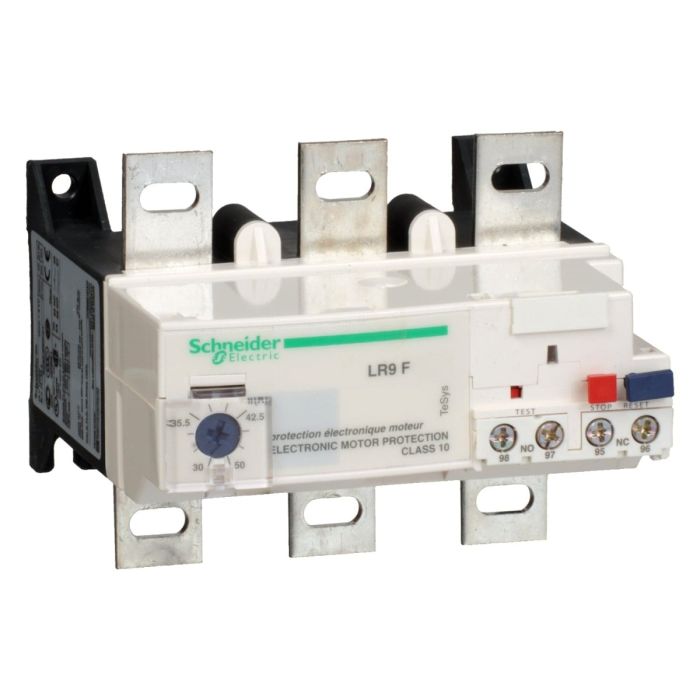

Schneider Electric TeSys LRF Electronic Thermal Overload Relay, 60-100 A, Class 10
Range of product: TeSys
Product type: Electronic thermal overload relay
Relay application: Motor protection
Control type: Dial white full-load current adjustment, Test button red, Push-button red reset, Push-button stop
You May Also Like:
Schneider Electric TeSys-F Contactor, 3P, 3-NO, AC3, 440V, 115A, 220V AC CoilSpecial Price EGP 30,083 Regular Price EGP 54,697
Schneider Electric Tesys F Contactor, 3P, 3-NO, AC3, 440V, 150A, Coil 220V ACSpecial Price EGP 32,021 Regular Price EGP 58,220
Schneider Electric TeSys LRD thermal overload relays - 60...100 A - class 20Special Price EGP 17,838 Regular Price EGP 32,433
Schneider Electric TeSys F, Contactor Coil, LX1FH, 24 V AC 40...400 HzSpecial Price EGP 5,057 Regular Price EGP 9,194
Schneider Electric TeSys Control Switch Disconnector, For ON Emergency Stop, 80A, 4 Screws Fixing, For Mounting at Back of an EnclosureSpecial Price EGP 4,048 Regular Price EGP 7,360
Schneider Electric TeSys Vario Emergency Stop Switch Disconnector, 32 A, Back of EnclosureSpecial Price EGP 2,283 Regular Price EGP 4,151
Schneider Electric Tesys F Contactor Coil LX1FJ, 110, 120V AC, 40, 400HzSpecial Price EGP 16,014 Regular Price EGP 29,116
The Schneider Electric LR9F5367 TeSys LRF Electronic Thermal Overload Relay is designed to provide advanced protection to motors and equipment from overheating. With a Class 10 rating and a current range of 60-100 A, this electronic thermal overload relay offers precise protection for a wide range of motor sizes and applications.
Key Features:
Advanced Protection: The TeSys LRF Electronic Thermal Overload Relay provides advanced protection against overheating, ensuring the safety and longevity of your motors and equipment.
Wide Current Range: With a current range of 60-100 A, it's suitable for a variety of motor sizes and applications.
Digital Display: The relay features a digital display for easy monitoring and setup, enhancing user convenience.
Reliable Performance: Schneider Electric's reputation for quality and reliability ensures that this relay performs consistently under challenging conditions.
Product Specifications:
Rated Current Range: 60-100 A
Class: Class 10
| Specifications | |
Main | |
| Range | TeSys |
| Product name | TeSys LRF |
| Device short name | LR9F |
| Product or component type | Electronic thermal overload relay |
| Relay application | Motor protection |
| Product compatibility | LC1F115...LC1F185 |
| Network type | AC |
| Thermal overload class | Class 10 conforming to IEC 60947-4 |
| Thermal protection adjustment range | 60…100 A |
| Complementary | |
| Network frequency | 50/60 Hz |
| Mounting support | Direct on contactor |
| Plate | |
| Tripping threshold | 1.12 +/- 0.06 In tripping conforming to IEC 60947-4-1 |
| Surge withstand | 4 kV conforming to IEC 61000-4-5 |
| Contacts type and composition | 1 NO + 1 NC |
| [Ith] conventional free air thermal current | 5 A for control circuit |
| [Ue] rated operational voltage | 1000 V AC 50/60 Hz for power circuit conforming to VDE 0110 group C |
| [Ui] rated insulation voltage | Power circuit: 1000 V AC conforming to IEC 60947-4 |
| [Uimp] rated impulse withstand voltage | 8 kV conforming to IEC 60947-1 |
| Phase failure sensitivity | Tripping in 4 s +/- 20 % conforming to IEC 60947-4-1 |
| Reset | Manual reset on front relay |
| Control type | Dial white full-load current adjustment |
| Test button red | |
| Push-button red reset | |
| Push-button stop | |
| Local signalling | Trip indicator |
| Temperature compensation | -20…70 °C |
| Current consumption | <= 5 mA no-load |
| switching capacity for alarm | 0...150 mA |
| Maximum voltage drop | <2.5 V closed state |
| Connections - terminals | Control circuit: screw clamp terminals 1 cable 0.75…2.5 mm² - cable stiffness: flexible - with cable end |
| Control circuit: screw clamp terminals 1 cable 0.75…2.5 mm² - cable stiffness: solid | |
| Control circuit: screw clamp terminals 1 cable 0.75…4 mm² - cable stiffness: flexible - without cable end | |
| Control circuit: screw clamp terminals 2 cable 1…1.5 mm² - cable stiffness: flexible - with cable end | |
| Control circuit: screw clamp terminals 2 cable 1…2.5 mm² - cable stiffness: flexible - without cable end | |
| Control circuit: screw clamp terminals 2 cable 1 mm² - cable stiffness: solid | |
| Power circuit: lugs-ring terminals M8 | |
| Tightening torque | Control circuit: 1.2 N.m on screw clamp terminals |
| Power circuit: 18 N.m on screw clamp terminals | |
| height | 96 mm |
| Width | 115 mm |
| Depth | 123.5 mm |
| Net weight | 0.9 kg |
| Environment | |
| standards | IEC 60255-8 |
| VDE 0660 | |
| IEC 60255-17 | |
| IEC 60947-4-1 | |
| EN 60947-4-1 | |
| product certifications | UL |
| CSA | |
| UKCA | |
| Protective treatment | TH |
| IP degree of protection | IP20 conforming to IEC 60529 |
| IP20 conforming to VDE 0106 | |
| Ambient air temperature for operation | -20…55 °C conforming to IEC 60255-8 |
| Ambient air temperature for storage | -40…85 °C |
| Operating altitude | <= 2000 m without derating |
| Fire resistance | 850 °C conforming to IEC 60695-2-1 |
| Mechanical robustness | Shocks: 13 Gn for 11 ms conforming to IEC 60068-2-7 |
| Vibrations 5...300 Hz: 2 GN conforming to IEC 60068-2-6 | |
| Dielectric strength | 6 kV 50 Hz conforming to IEC 255-5 |
| Electromagnetic compatibility | Resistance to electrostatic discharge: 6 kV in indirect mode conforming to IEC 61000-4-2 |
| Resistance to electrostatic discharge: 8 kV in air conforming to IEC 61000-4-2 | |
| Radiated radio-frequency electromagnetic field immunity test: 10 V/m conforming to IEC 61000-4-3 | |
| Fast transients immunity test: 2 kV conforming to IEC 61000-4-4 |
| Weight | 0.900000 |
|---|---|
| Brand | Schneider Electric |
| Model | LR9F5367 |
| Depth [cm] | 12.35 |
| Width [cm] | 11.5 |
| Height [cm] | 9.6 |
| Range | TeSys F |
| Family | PPCTR |
