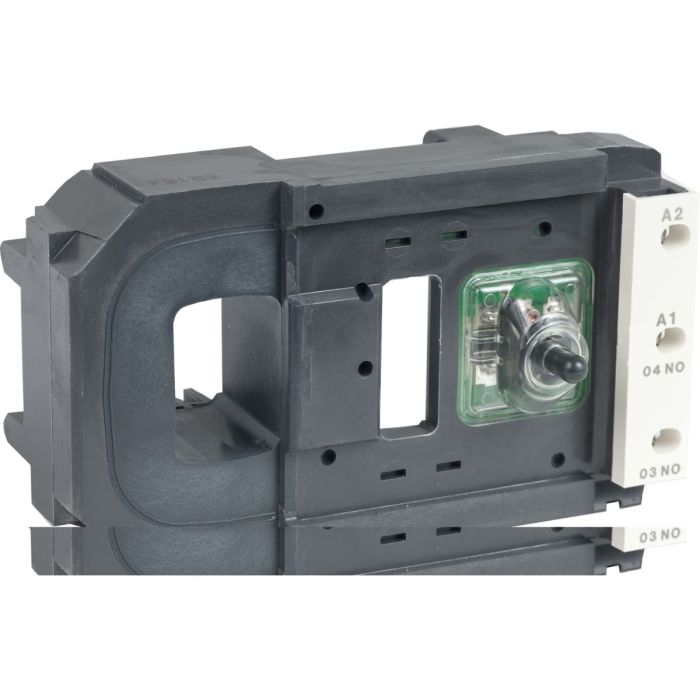

Schneider Electric Tesys F Contactor Coil LX1FJ, 110, 120V AC, 40, 400Hz
In stock
SKU
LX1FJ110
Special Price EGP 16,014 Regular Price EGP 29,116
Schneider Electric Tesys F Contactor Coil LX1FJ, 110, 120V AC, 40, 400Hz is available to buy in increments of 1
Quick Overview
Range: TeSys
Product Type: Contactor coil
Product compatibilityty: LC1F400
Control circuit type: AC at 40...400 Hz
You May Also Like:
Schneider Electric TeSys-F Contactor, 3P, 3-NO, AC3, 440V, 115A, 220V AC CoilSpecial Price EGP 30,083 Regular Price EGP 54,697
Schneider Electric Tesys F Contactor, 3P, 3-NO, AC3, 440V, 150A, Coil 220V ACSpecial Price EGP 32,021 Regular Price EGP 58,220
Schneider Electric TeSys LRD thermal overload relays - 60...100 A - class 20Special Price EGP 17,838 Regular Price EGP 32,433
Schneider Electric TeSys LRF Electronic Thermal Overload Relay, 60-100 A, Class 10Special Price EGP 13,104 Regular Price EGP 23,826
Schneider Electric TeSys F, Contactor Coil, LX1FH, 24 V AC 40...400 HzSpecial Price EGP 5,057 Regular Price EGP 9,194
Schneider Electric TeSys Control Switch Disconnector, For ON Emergency Stop, 80A, 4 Screws Fixing, For Mounting at Back of an EnclosureSpecial Price EGP 4,048 Regular Price EGP 7,360
Schneider Electric TeSys Vario Emergency Stop Switch Disconnector, 32 A, Back of EnclosureSpecial Price EGP 2,283 Regular Price EGP 4,151
TeSys F AC coil 110/115V 40-400Hz (voltage code F7/FE7), low sealed consumption, for TeSys F 3-pole and 4-pole contactors LC1F400. It operates in voltage limits 0.85-1.1 Uc and environments until 55°C. It provides high operating rates to the contactor, until 2400 cycles/hour. Green Premium compliant (RoHS/REACh).
Specifications:
| Main | |
| Range | TeSys |
| Product or component type | Contactor coil |
| Device short name | LX1FJ |
| Range compatibility | TeSys TeSys F LC1F contactor |
| Product compatibility | LC1F400 |
| Control circuit type | AC at 40...400 Hz |
| [Uc] control circuit voltage | 110...120 V AC 40...400 Hz |
| Inductance of closed circuit | 1.35 H |
| Average resistance | 9.8 Ohm inrush at 20 °C |
| 230 Ohm holding at 20 °C | |
| Operating time | 100...170 ms opening |
| 40...75 ms closing | |
| Mechanical durability | 10 Mcycles |
| Maximum operating rate | 2400 cyc/h 55 °C |
| Complementary | |
| Coil technology | Without built-in suppressor module |
| Control circuit voltage limits | Operational: 0.85...1.1 Uc 40...400 Hz (at 55 °C) |
| Drop-out: 0.3...0.5 Uc 40...400 Hz (at 55 °C) | |
| Inrush power in VA | 1075 VA 40...400 Hz cos phi 0.9 (at 20 °C) |
| Hold-in power consumption in VA | 15 VA 40...400 Hz cos phi 0.3 (at 20 °C) |
| Heat dissipation | 14 W at 40...400 Hz |
| Environment | |
| Ambient air temperature for operation | -5…55 °C |
| Net weight | 1 kg |
| Weight | 1.000000 |
|---|---|
| Brand | Schneider Electric |
| Model | LX1FJ110 |
| Color | Black |
| Range | TeSys F |
| Family | PPCTR |
| Type | Contactor |
