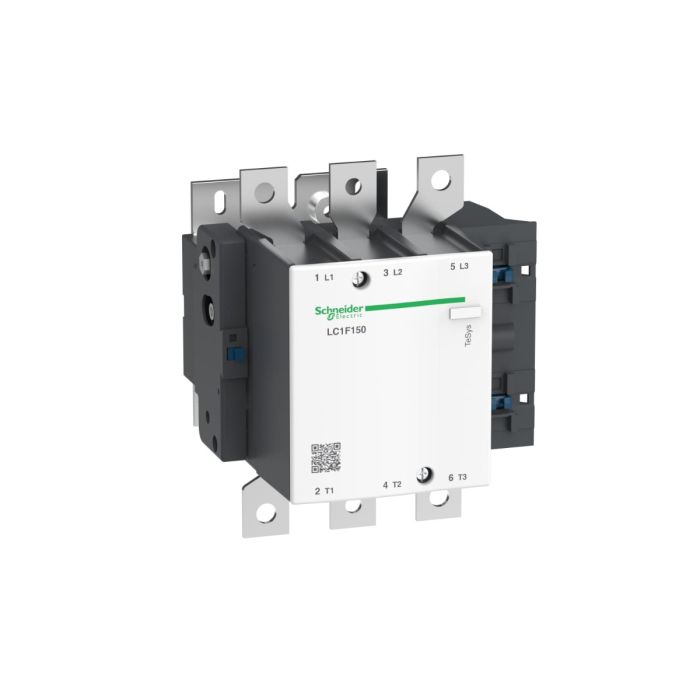

Schneider Electric Tesys F Contactor, 3P, 3-NO, AC3, 440V, 150A, Coil 220V AC
Range of product: TeSys
Product type: Contactor
Poles: 3P
contactor application: Resistive load, Motor control
You May Also Like:
Schneider Electric TeSys-F Contactor, 3P, 3-NO, AC3, 440V, 115A, 220V AC CoilSpecial Price EGP 30,083 Regular Price EGP 54,697
Schneider Electric TeSys LRD thermal overload relays - 60...100 A - class 20Special Price EGP 17,838 Regular Price EGP 32,433
Schneider Electric TeSys LRF Electronic Thermal Overload Relay, 60-100 A, Class 10Special Price EGP 13,104 Regular Price EGP 23,826
Schneider Electric TeSys F, Contactor Coil, LX1FH, 24 V AC 40...400 HzSpecial Price EGP 5,057 Regular Price EGP 9,194
Schneider Electric TeSys Control Switch Disconnector, For ON Emergency Stop, 80A, 4 Screws Fixing, For Mounting at Back of an EnclosureSpecial Price EGP 4,048 Regular Price EGP 7,360
Schneider Electric TeSys Vario Emergency Stop Switch Disconnector, 32 A, Back of EnclosureSpecial Price EGP 2,283 Regular Price EGP 4,151
Schneider Electric Tesys F Contactor Coil LX1FJ, 110, 120V AC, 40, 400HzSpecial Price EGP 16,014 Regular Price EGP 29,116
The Schneider Electric LC1F150M7 is a high-performance contactor from the Tesys F series, designed for reliable and efficient control of electrical circuits. With three poles and a current rating of 150 A at AC-3, this contactor is capable of handling heavy-duty applications. It features a 220V AC coil for easy activation and deactivation of the contactor. The contactor is rated for 440V AC-3 applications, making it suitable for a wide range of industrial and commercial uses.
Key Features:
Heavy-Duty Performance: The LC1F150M7 contactor is built to handle heavy loads and is ideal for demanding applications.
Three Poles: This contactor is designed with three poles, making it suitable for three-phase systems.
Coil Voltage: The 220V AC coil voltage ensures efficient control and operation.
Rated for 440V AC-3: This contactor is rated for 440V AC-3 applications, making it versatile for various industrial uses.
Product Specifications:
Poles: 3P (Three Poles)
Current Rating: 150 A (AC-3)
Coil Voltage: 220V AC
Rated Voltage (AC-3): 440V
Specifications
| Main | |
| Range | TeSys |
| Range of product | TeSys F |
| Product or component type | Contactor |
| Device short name | LC1F |
| contactor application | Resistive load |
| Motor control | |
| utilisation category | AC-3 |
| AC-1 | |
| AC-4 | |
| Poles description | 3P |
| [Ue] rated operational voltage | <= 690 V AC 50/60 Hz |
| <= 460 V DC | |
| [Uc] control circuit voltage | 220 V AC 40...400 Hz |
| [Ie] rated operational current | 250 A (at <40 °C) at <= 440 V AC-1 |
| 150 A (at <55 °C) at <= 440 V AC-3 | |
| Complementary | |
| [Uimp] rated impulse withstand voltage | 8 kV |
| [Ith] conventional free air thermal current | 250 A (at 40 °C) |
| Rated breaking capacity | 1200 A conforming to IEC 60947-4-1 |
| [Icw] rated short-time withstand current | 1200 A 40 °C - 10 s |
| 700 A 40 °C - 30 s | |
| 600 A 40 °C - 1 min | |
| 450 A 40 °C - 3 min | |
| 350 A 40 °C - 10 min | |
| Associated fuse rating | 160 A aM at <= 440 V |
| 250 A gG at <= 440 V | |
| Average impedance | 0.35 mOhm - Ith 250 A 50 Hz |
| [Ui] rated insulation voltage | 1000 V conforming to IEC 60947-4-1 |
| 1500 V conforming to VDE 0110 group C | |
| Power dissipation per pole | 22 W AC-1 |
| 8 W AC-3 | |
| Overvoltage category | III |
| power pole contact composition | 3 NO |
| Motor power kW | 75 kW at 380...400 V AC 50/60 Hz (AC-3) |
| 80 kW at 415 V AC 50/60 Hz (AC-3) | |
| 80 kW at 440 V AC 50/60 Hz (AC-3) | |
| 90 kW at 500 V AC 50/60 Hz (AC-3) | |
| 100 kW at 660...690 V AC 50/60 Hz (AC-3) | |
| 40 kW at 220...230 V AC 50/60 Hz (AC-3) | |
| 22 kW at 400 V AC 50/60 Hz (AC-4) | |
| Control circuit voltage limits | Operational: 0.85...1.1 Uc 40...400 Hz (at 55 °C) |
| Drop-out: 0.2...0.55 Uc 40...400 Hz (at 55 °C) | |
| Mechanical durability | 10 Mcycles |
| Inrush power in VA | 770 VA, 40...400 Hz cos phi 0.9 (at 20 °C) |
| Hold-in power consumption in VA | 8.1 VA, 40...400 Hz cos phi 0.9 (at 20 °C) |
| Maximum operating rate | 2400 cyc/h 55 °C |
| Operating time | 35 ms closing (at Uc) |
| 130 ms opening (at Uc) | |
| Connections - terminals | Control circuit: screw clamp terminals 1 cable(s) 1…4 mm²flexible without cable end |
| Control circuit: screw clamp terminals 2 cable(s) 1…4 mm²flexible without cable end | |
| Control circuit: screw clamp terminals 1 cable(s) 1…4 mm²flexible with cable end | |
| Control circuit: screw clamp terminals 2 cable(s) 1…2.5 mm²flexible with cable end | |
| Control circuit: screw clamp terminals 1 cable(s) 1…4 mm²solid without cable end | |
| Control circuit: screw clamp terminals 2 cable(s) 1…4 mm²solid without cable end | |
| Power circuit: bar 2 cable(s) - busbar cross section: 25 x 3 mm | |
| Power circuit: lugs-ring terminals 1 cable(s) 120 mm² | |
| Power circuit: connector 1 cable(s) 120 mm² | |
| Power circuit: bolted connection | |
| Tightening torque | Control circuit: 1.2 N.m |
| Power circuit: 18 N.m | |
| mounting support | Plate |
| Heat dissipation | 5.9…7.2 W |
| standards | EN 60947-4-1 |
| EN 60947-1 | |
| IEC 60947-4-1 | |
| JIS C8201-4-1 | |
| IEC 60947-1 | |
| product certifications | BV |
| RINA | |
| LROS (Lloyds register of shipping) | |
| RMRoS | |
| ABS | |
| CCC | |
| CB | |
| UL | |
| DNV | |
| UKCA | |
| Compatibility code | LC1F |
| Control circuit type | AC at 40...400 Hz |
| Environment | |
| IP degree of protection | IP2X front face with shrouds conforming to IEC 60529 |
| IP2X front face with shrouds conforming to VDE 0106 | |
| Protective treatment | TH |
| Ambient air temperature for operation | -40…60 °C |
| Ambient air temperature for storage | -60…80 °C |
| Permissible ambient air temperature around the device | 60…70 °C at Uc |
| height | 170 mm |
| Width | 163.5 mm |
| Depth | 171 mm |
| Operating altitude | 3000 m without derating |
| Net weight | 3.43 kg |
| Weight | 3.430000 |
|---|---|
| Brand | Schneider Electric |
| Model | LC1F150M7 |
| Depth [cm] | 17.1 |
| Width [cm] | 3.43 |
| Height [cm] | 17 |
| Range | TeSys F |
| Family | PPCTR |
| Poles | 3P |
