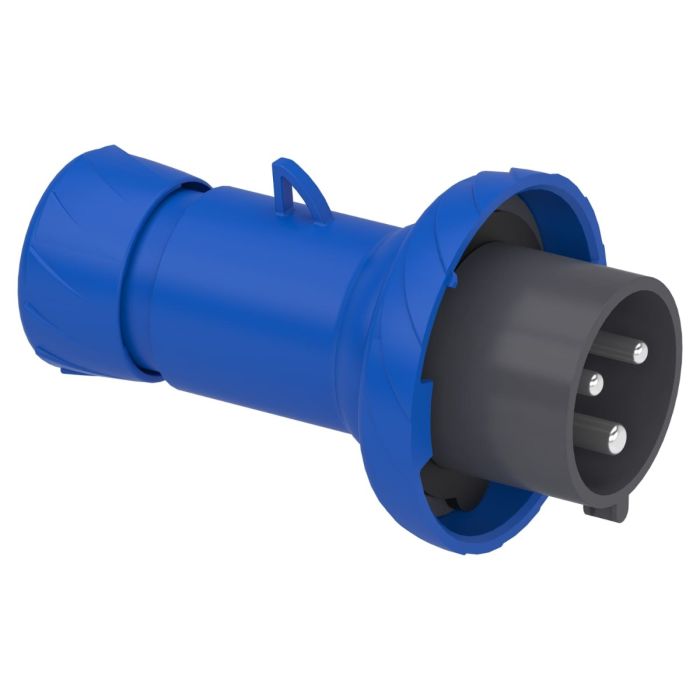

Schneider Electric Pratika Wander Plug, Straight, 32A, 2P + E, 200-250V AC, IP67
Range of product: Mureva
Product type: Wander plug
Poles : 2P + E
Network type: AC
The Schneider Electric PKE32M723 is a Pratika Wander Plug designed with a straight connection for convenience. This plug is rated for 32A and is compatible with 200-250V AC. It features 2P (2 poles) and E (ground) connections. Moreover, it comes with an IP67 rating, ensuring its durability and protection in various environments. The Pratika Wander Plug is a reliable choice for secure electrical connections in demanding conditions.
Key Features:
Straight Connection: Designed for a straight connection for easy and secure use.
High Current Rating: Rated for 32A, suitable for a variety of electrical applications.
Voltage Compatibility: Compatible with 200-250V AC applications.
2P + E Connections: Features 2 poles and an earth (ground) connection for safe and complete power distribution.
IP67 Rating: Provides protection against dust and temporary immersion in water, making it suitable for various environments.
| Specifications | |
Main | |
| Range | Mureva |
| Product or component type | Wander plug |
| Device short name | Mureva plug |
| Plug, socket category | Low voltage |
| Poles description | 2P + E |
| Network type | AC |
| Outlet standard | Industrial |
| Complementary | |
| Plug, socket, control station shape | Straight |
| [In] rated current | 32 A |
| [Ue] rated operational voltage | 200...250 V |
| Network frequency | 50/60 Hz |
| ground lug clockwise position | 6 h |
| Plug, socket material | Housing: self-extinguishing engineering polymer |
| Contacts material | Sleeves: brass |
| Connections - terminals | Captive screws |
| Cable cross section | 2.5…10 mm² |
| Cable outer diameter | 11.5…21 mm |
| Cable entry | Cable gland |
| Fair lead | |
| Thread type | Pg 21 |
| Net weight | 0.23 kg |
| height | 152 mm |
| Width | 95 mm |
| Depth | 95 mm |
| Colour | Grey (RAL 7035) |
| Voltage colour | Blue |
| Environment | |
| standards | IEC 60309-2 |
| IEC 60309-1 | |
| IP degree of protection | IP67 conforming to IEC 60529 |
| IK degree of protection | IK08 conforming to EN 62262 |
| Fire resistance | 850 °C conforming to IEC 60695-2-11 |
| Relative humidity | 50 % at 40 °C |
| 70 % at 30 °C | |
| 90 % at 20 °C | |
| Operating altitude | 2000 m |
| Ambient air temperature for operation | 35 °C ( 86400 s ) |
| -25…40 °C |
| Weight | 0.250000 |
|---|---|
| Brand | Schneider Electric |
| Model | PKE32M723 |
| Color | Blue |
| Depth [cm] | 9.5 |
| Width [cm] | 9.5 |
| Height [cm] | 15.2 |
| Range | Pratika |
| Family | HDCWD |
