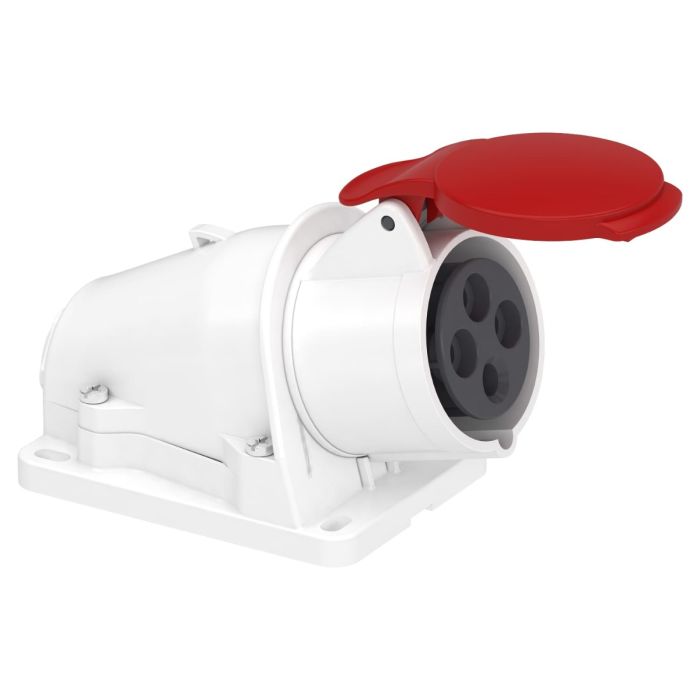

Schneider Electric Pratika Socket, Screw Angled, 16A, 3P + E, 380-415V AC, Wall-Mounted
Product or component type: Socket
Numbers of poles: 3P + E
Network type: AC
The Schneider Electric PKF16W434 Pratika Socket is designed for high-power applications and features a durable construction suitable for demanding environments. With a 16A rated current, it provides a reliable power connection. This socket is equipped with three poles and an earth (3P + E) configuration, making it suitable for 380-415V AC power systems. Its wall-mounted design ensures secure and convenient installation.
Key Features:
High-Power Socket: The PKF16W434 is built for applications requiring substantial electrical power.
Durable Construction: Designed to withstand challenging conditions, it ensures long-lasting performance.
Three-Pole Configuration: With a 3P + E configuration, it is compatible with 380-415V AC power systems.
Wall-Mounted: The wall-mount design provides secure and convenient installation options.
Product Specifications:
Rated Current: 16A
Configuration: 3P + E (Three Poles + Earth)
Voltage: 380-415V AC
For robust and high-power electrical connections, choose the Schneider Electric PKF16W434 Pratika Socket.
| Specifications | |
Main | |
| Range | Mureva |
| Product or component type | Socket |
| Device short name | Mureva socket |
| Plug, socket category | Low voltage |
| Poles description | 3P + E |
| Network type | AC |
| Outlet standard | Industrial |
| Complementary | |
| Mounting mode | Wall-mounted |
| Plug, socket, control station shape | Angled |
| [In] rated current | 16 A |
| [Ue] rated operational voltage | 380...415 V |
| Network frequency | 50/60 Hz |
| ground lug clockwise position | 6 h |
| Plug, socket material | Housing: self-extinguishing engineering polymer |
| Contacts material | Sleeves: brass |
| Connections - terminals | Captive screws |
| Cable cross section | 1…4 mm² |
| Cable outer diameter | 21 mm |
| Thread type | M25 |
| Net weight | 0.21 kg |
| height | 131 mm |
| Width | 75 mm |
| Depth | 104 mm |
| Colour | Grey (RAL 7035) |
| Voltage colour | Red |
| Environment | |
| standards | IEC 60309-2 |
| IEC 60309-1 | |
| IP degree of protection | IP44 conforming to IEC 60529 |
| IK degree of protection | IK08 conforming to EN 62262 |
| Fire resistance | 750 °C conforming to IEC 60695-2-1 |
| Relative humidity | 50 % at 40 °C |
| 70 % at 30 °C | |
| 90 % at 20 °C |
| Weight | 0.210000 |
|---|---|
| Brand | Schneider Electric |
| Model | PKF16W434 |
| Color | Red |
| Depth [cm] | 10.4 |
| Width [cm] | 7.5 |
| Height [cm] | 13.1 |
| Range | Pratika |
| Family | HDCWD |
