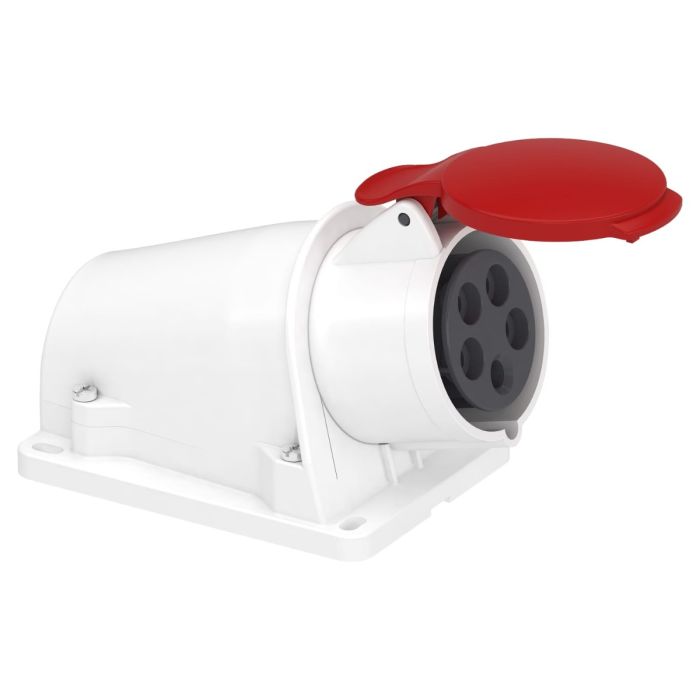

Schneider Electric Pratika Socket Screw Angled 16A 3P + N + E 380-415 V AC Wall
Product or component type: Socket
Numbers of poles: 3P + N + E
Network type: AC
You May Also Like:
Schneider Electric Pratika Wander Plug, Straight, 32A, 2P + E, 200-250V AC, IP44Special Price EGP 444 Regular Price EGP 535
Schneider Electric Pratika Socket, Screw Angled, 16A, 3P + E, 380-415V AC, Wall-MountedSpecial Price EGP 556 Regular Price EGP 670
Schneider Electric Pratika Wander Plug, Straight, 16A, 3P + E, 380, 415V AC, IP44Special Price EGP 328 Regular Price EGP 395
Schneider Electric Pratika Wander Plug, Straight, 16A, 3P + N + E, 380, 415V AC, IP44Special Price EGP 384 Regular Price EGP 462
Schneider Electric Pratika Wander Plug, Straight, 16A, 3P + N + E, 380, 415V AC, IP67Special Price EGP 556 Regular Price EGP 670
Schneider Electric Pratika Wander Plug, Straight, 32A, 3P + E, 380, 415V AC, IP67Special Price EGP 649 Regular Price EGP 782
Schneider Electric Pratika Wander Socket, Straight, 16A, 3P + E, 380, 415V AC, IP44Special Price EGP 452 Regular Price EGP 544
Schneider Electric Pratika Socket Screw Angled, 16A, 2P + E, 200-250V AC, WallSpecial Price EGP 571 Regular Price EGP 688
Schneider Electric Pratika 16A 3P+E 380-415V AC Wall-Mounted Angled Screw Socket, PKF16W734Special Price EGP 1,207 Regular Price EGP 1,454
Schneider Electric Pratika Wander Socket, Straight, 32A, 2P+E, 200-250V AC, IP67Special Price EGP 1,135 Regular Price EGP 1,368
The Schneider Electric PKF16W435 Pratika Socket is a high-quality, wall-mounted angled socket designed for electrical connections in industrial and commercial environments. With a 16A rating and the capability for 3P (Three-Phase), N (Neutral), and E (Earth) connections, it provides reliable power distribution. This socket is intended for use with 380-415V AC power systems, making it suitable for a range of applications.
Key Features:
Versatile Socket: The PKF16W435 is suitable for various industrial and commercial applications requiring higher current ratings.
Angled Design: The angled design ensures ease of use and minimizes strain on connected cables.
Three-Phase Support: This socket can accommodate three-phase electrical connections, providing balanced power distribution.
Secure Wall Mounting: The wall-mounted design offers secure and convenient installation.
Product Specifications:
Rated Current: 16A
Configuration: 3P + N + E (Three-Phase + Neutral + Earth)
Voltage Rating: 380-415V AC
Enhance your electrical distribution systems in industrial and commercial settings with the Schneider Electric PKF16W435 Pratika Socket Screw Angled.
| Specifications | |
Main | |
| Range | Mureva |
| Product or component type | Socket |
| Device short name | Mureva socket |
| Plug, socket category | Low voltage |
| Poles description | 3P + N + E |
| Network type | AC |
| Outlet standard | Industrial |
| Complementary | |
| Mounting mode | Wall-mounted |
| Plug, socket, control station shape | Angled |
| [In] rated current | 16 A |
| [Ue] rated operational voltage | 380...415 V |
| Network frequency | 50/60 Hz |
| ground lug clockwise position | 6 h |
| Plug, socket material | Housing: self-extinguishing engineering polymer |
| Contacts material | Sleeves: brass |
| Connections - terminals | Captive screws |
| Cable cross section | 1…4 mm² |
| Cable outer diameter | 21 mm |
| Thread type | M25 |
| Net weight | 0.27 kg |
| height | 120 mm |
| Width | 90 mm |
| Depth | 116 mm |
| Colour | Grey (RAL 7035) |
| Voltage colour | Red |
| Environment | |
| standards | IEC 60309-2 |
| IEC 60309-1 | |
| IP degree of protection | IP44 conforming to IEC 60529 |
| IK degree of protection | IK08 conforming to EN 62262 |
| Fire resistance | 750 °C conforming to IEC 60695-2-1 |
| Relative humidity | 50 % at 40 °C |
| 70 % at 30 °C | |
| 90 % at 20 °C |
| Weight | 0.270000 |
|---|---|
| Brand | Schneider Electric |
| Model | PKF16W435 |
| Color | Red |
| Depth [cm] | 11.6 |
| Width [cm] | 9 |
| Height [cm] | 12 |
| Range | Pratika |
| Family | HDCWD |
| Type | Socket-Outlet |
| Poles | 3P |
| [In] Rated Current | 16 A |
| Voltage ~ Frequency | 50-60 Hz |
| IP Degree of Protection | IP44 |
| IK Degree of Protection | IK08 |
