Schneider Electric Pratika Wander Plug, Straight, 16A, 3P + N + E, 380, 415V AC, IP67
Range: Mureva
Product type: Wander plug
Plug, Socket Category: Low voltage
Poles Description: 3P + N + E
You May Also Like:
Schneider Electric Pratika Wander Plug, Straight, 32A, 2P + E, 200-250V AC, IP44Special Price EGP 444 Regular Price EGP 535
Schneider Electric Pratika Socket Screw Angled 16A 3P + N + E 380-415 V AC WallSpecial Price EGP 623 Regular Price EGP 751
Schneider Electric Pratika Socket, Screw Angled, 16A, 3P + E, 380-415V AC, Wall-MountedSpecial Price EGP 556 Regular Price EGP 670
Schneider Electric Pratika Wander Plug, Straight, 16A, 3P + E, 380, 415V AC, IP44Special Price EGP 328 Regular Price EGP 395
Schneider Electric Pratika Wander Plug, Straight, 16A, 3P + N + E, 380, 415V AC, IP44Special Price EGP 384 Regular Price EGP 462
Schneider Electric Pratika Wander Plug, Straight, 32A, 3P + E, 380, 415V AC, IP67Special Price EGP 649 Regular Price EGP 782
Schneider Electric Pratika Wander Socket, Straight, 16A, 3P + E, 380, 415V AC, IP44Special Price EGP 452 Regular Price EGP 544
Schneider Electric Pratika Socket Screw Angled, 16A, 2P + E, 200-250V AC, WallSpecial Price EGP 571 Regular Price EGP 688
Schneider Electric Pratika 16A 3P+E 380-415V AC Wall-Mounted Angled Screw Socket, PKF16W734Special Price EGP 1,207 Regular Price EGP 1,454
Schneider Electric Pratika Wander Socket, Straight, 32A, 2P+E, 200-250V AC, IP67Special Price EGP 1,135 Regular Price EGP 1,368

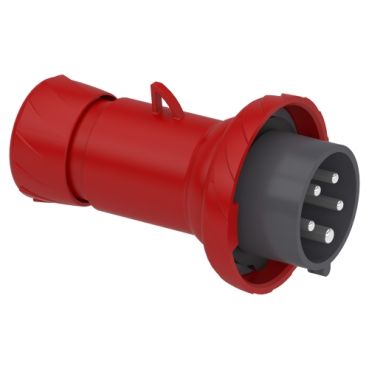

The PKE16M735 is a Pratika Wander Plug designed for straight connection with a power rating of 16 A, 3 poles + neutral + earth, and a voltage range of 380-415 V AC. This plug is rated IP67, indicating its high level of protection against dust and water immersion for enhanced durability in challenging environments.
The straight design of the plug makes it convenient for various applications, providing a secure and reliable electrical connection. The 16 A power rating ensures sufficient capacity for many industrial and commercial applications, offering a robust solution for power distribution.
With its 3 poles + neutral + earth configuration, the PKE16M735 is suitable for applications requiring a neutral connection, making it versatile for various electrical setups. The IP67 rating adds an extra layer of protection, making it ideal for use in harsh outdoor or industrial settings where exposure to water and dust is a concern.
Key Features:
Pratika Wander Plug
Straight Connection
Rated at 16 A, 3P + N + E
Voltage Range: 380-415 V AC
IP67 Rated (Dust and Water Immersion Protection)
| Specifications | |
Main | |
| Range | Mureva |
| Product or component type | Wander plug |
| Device short name | Mureva plug |
| Plug, socket category | Low voltage |
| Poles description | 3P + N + E |
| Network type | AC |
| Outlet standard | Industrial |
| Complementary | |
| Plug, socket, control station shape | Straight |
| [In] rated current | 16 A |
| [Ue] rated operational voltage | 380...415 V |
| Network frequency | 50/60 Hz |
| ground lug clockwise position | 6 h |
| Plug, socket material | Housing: self-extinguishing engineering polymer |
| Contacts material | Sleeves: brass |
| Connections - terminals | Captive screws |
| Cable cross section | 1…4 mm² |
| Cable outer diameter | 8…15 mm |
| Cable entry | Cable gland |
| Fair lead | |
| Thread type | Pg 21 |
| Net weight | 0.21 kg |
| height | 142 mm |
| Width | 89 mm |
| Depth | 89 mm |
| Colour | Grey (RAL 7035) |
| Voltage colour | Red |
| Environment | |
| standards | IEC 60309-2 |
| IEC 60309-1 | |
| IP degree of protection | IP67 conforming to IEC 60529 |
| IK degree of protection | IK08 conforming to EN 62262 |
| Fire resistance | 850 °C conforming to IEC 60695-2-11 |
| Relative humidity | 50 % at 40 °C |
| 70 % at 30 °C | |
| 90 % at 20 °C | |
| Operating altitude | 2000 m |
| Ambient air temperature for operation | 35 °C ( 86400 s ) |
| -25…40 °C |
| Weight | 0.210000 |
|---|---|
| Brand | Schneider Electric |
| Model | PKE16M735 |
| Color | Red |
| Depth [cm] | 8.9 |
| Width [cm] | 8.9 |
| Height [cm] | 14.2 |
| Range | Pratika |
| Family | HDCWD |
| Poles | 3P + E |
