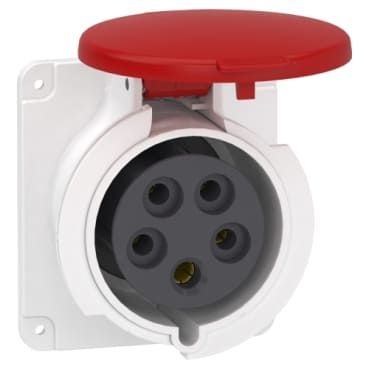

Schneider Electric Pratika Straight Socket Screw, 32A, 3P + N + E, 380-415V AC Panel-Mount
Out of stock
SKU
PKF32G435
Special Price EGP 752 Regular Price EGP 906
Quick Overview
Range: Mureva
Product type: MSocket
Network type: AC
Poles description: 3P + N + E
You May Also Like:
Schneider Electric Pratika Wander Plug, Straight, 32A, 2P + E, 200-250V AC, IP44Special Price EGP 444 Regular Price EGP 535
Schneider Electric Pratika Socket Screw Angled 16A 3P + N + E 380-415 V AC WallSpecial Price EGP 623 Regular Price EGP 751
Schneider Electric Pratika Socket, Screw Angled, 16A, 3P + E, 380-415V AC, Wall-MountedSpecial Price EGP 556 Regular Price EGP 670
Schneider Electric Pratika Wander Plug, Straight, 16A, 3P + E, 380, 415V AC, IP44Special Price EGP 328 Regular Price EGP 395
Schneider Electric Pratika Wander Plug, Straight, 16A, 3P + N + E, 380, 415V AC, IP44Special Price EGP 384 Regular Price EGP 462
Schneider Electric Pratika Wander Plug, Straight, 16A, 3P + N + E, 380, 415V AC, IP67Special Price EGP 556 Regular Price EGP 670
Schneider Electric Pratika Wander Plug, Straight, 32A, 3P + E, 380, 415V AC, IP67Special Price EGP 649 Regular Price EGP 782
Schneider Electric Pratika Wander Socket, Straight, 16A, 3P + E, 380, 415V AC, IP44Special Price EGP 452 Regular Price EGP 544
Schneider Electric Pratika Socket Screw Angled, 16A, 2P + E, 200-250V AC, WallSpecial Price EGP 571 Regular Price EGP 688
Schneider Electric Pratika 16A 3P+E 380-415V AC Wall-Mounted Angled Screw Socket, PKF16W734Special Price EGP 1,207 Regular Price EGP 1,454
Schneider Electric Pratika Wander Socket, Straight, 32A, 2P+E, 200-250V AC, IP67Special Price EGP 1,135 Regular Price EGP 1,368
This Pratika industrial socket with captive screws connection is straight panel mounted. It has 3P+N+E poles, rated current is 32A and the operating voltage is 400VAC. The dimensions of the base plate are (W) 98mm x (H) 100mm. The degree of protection is IP44 and IK08. The fire resistance is 850°C. The cable entries are for flexible or rigid cables. The cross section of the cables in 32A is 2.5mm² to 10mm². The color of the socket is light grey (RAL 7035) with red easy identification of the operating voltage. The frequency is 50Hz or 60Hz. The clock position of contact is 6h.
| Specifications | |
Main | |
| Range | Mureva |
| Product or component type | Socket |
| Device short name | Mureva socket |
| Plug, socket category | Low voltage |
| Poles description | 3P + N + E |
| Network type | AC |
| Outlet standard | Industrial |
| Complementary | |
| Mounting mode | Panel-mounted |
| Plug, socket, control station shape | Straight |
| [In] rated current | 32 A |
| [Ue] rated operational voltage | 380...415 V |
| Network frequency | 50/60 Hz |
| ground lug clockwise position | 6 h |
| Plug, socket material | Housing: self-extinguishing engineering polymer |
| Contacts material | Sleeves: brass |
| Connections - terminals | Captive screws |
| Cable cross section | 2.5…10 mm² |
| Net weight | 0.273 kg |
| Base dimension | 90 x 100 mm |
| height | 100 mm |
| Width | 98 mm |
| Depth | 128 mm |
| Colour | Grey (RAL 7035) |
| Voltage colour | Red |
| Environment | |
| standards | IEC 60309-2 |
| IEC 60309-1 | |
| IP degree of protection | IP44 conforming to IEC 60529 |
| IK degree of protection | IK08 conforming to EN 62262 |
| Fire resistance | 850 °C conforming to IEC 60695-2-1 |
| Relative humidity | 50 % at 40 °C |
| 70 % at 30 °C | |
| 90 % at 20 °C | |
| Ambient air temperature for operation | 35 °C ( 86400 s ) |
| Weight | 0.273000 |
|---|---|
| Brand | Schneider Electric |
| Model | PKF32G435 |
| Color | Red |
| Depth [cm] | 12.8 |
| Width [cm] | 9.8 |
| Height [cm] | 10 |
| Range | Pratika |
| Family | HDCWD |
| Poles | 3P + E |
