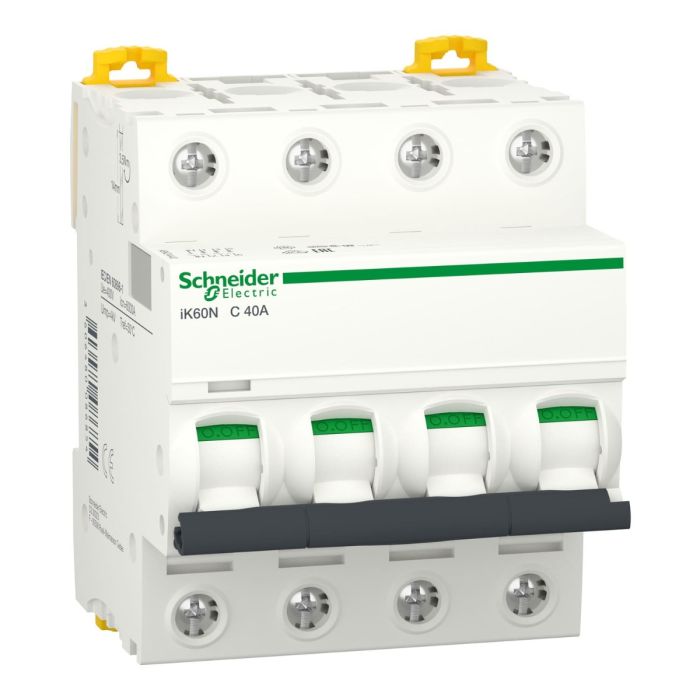

Schneider Electric Miniature Circuit Breaker, iK60N, 4P, 40 A, C curve, 6K
Range: Acti9
Product type: Miniature circuit breaker
Device application: Distribution
Breaker Capacity: 6K
Poles description: 4P
You May Also Like:
Schneider Electric Overvoltage release, Acti9, iMSU, voltage release, 230 V ACSpecial Price EGP 999 Regular Price EGP 6,326
Schneider Electric Acti9 iC60N, 63 A Miniature Circuit Breaker, 2P, C curveSpecial Price EGP 951 Regular Price EGP 1,464
Schneider Electric Acti9 iC60N Miniature circuit-breaker, 2P, 10 A, C curveSpecial Price EGP 750 Regular Price EGP 1,145
Schneider Electric Acti9 IIL Single Indicator Light, White, 110-230 VACSpecial Price EGP 336 Regular Price EGP 525
Schneider Electric iCT contactor, 25A 1NO 230...240V 50HzSpecial Price EGP 1,389 Regular Price EGP 2,170
Schneider Electric Acti9 iC60H Miniature Circuit Breaker (MCB), 1 Pole, 50A, C Curve, 10000A,15KSpecial Price EGP 918 Regular Price EGP 1,412
Schneider Electric Miniature Circuit Breaker (MCB), Acti9 IC60H, 3P, 6A, C-Curve,15KSpecial Price EGP 2,583 Regular Price EGP 3,974
Schneider Electric Acti9 iC60H Miniature circuit-breaker, 3P, 50 A, C curve,15KSpecial Price EGP 3,347 Regular Price EGP 5,109
Schneider Electric Miniature Circuit-Breaker, Acti9 IC60N, 2P, 25 A, C Curve, 6000 ASpecial Price EGP 750 Regular Price EGP 1,145
Schneider Electric Acti9 IDPN N Vigi RCBO , 1P + N, 20A, C Curve, 6000A, 30mA, Type ASpecial Price EGP 3,357 Regular Price EGP 4,632
Schneider Electric Acti9 iC60N, 40 A Miniature Circuit Breaker, 2P, C curveSpecial Price EGP 744 Regular Price EGP 1,145
Schneider Electric Miniature Circuit-Breaker, Acti9 iC60N, 4P, 63 A, C Curve, 6000 ASpecial Price EGP 2,486 Regular Price EGP 3,796
Schneider Electric Miniature Circuit Breaker (MCB), Acti9 iC60N, 2P, 10A, C curveSpecial Price EGP 436 Regular Price EGP 586
Schneider Electric Miniature Circuit-Breaker, Acti9 Ic60H, 1P, 63 A, C Curve, 10000 A, 15KSpecial Price EGP 810 Regular Price EGP 1,236
Schneider Electric Miniature Circuit Breaker (MCB) , Acti9 IC60N , 1P , 6A , D Curve , 6000A IEC/EN 60898, 1, 10kA IEC/EN 60947, 2Special Price EGP 448 Regular Price EGP 689
Schneider Electric Acti9 iC60N, 32A Miniature Circuit Breaker, 2P, C curveSpecial Price EGP 745 Regular Price EGP 1,145
Schneider Electric Acti9 iC60H Miniature Circuit Breaker (MCB), 4P 32A, D Curve, 10,000A, IEC/EN 60898-1, 15kA IEC/EN 60947-2Special Price EGP 3,030 Regular Price EGP 4,661
Schneider Electric Acti9 iC60N 10 A Miniature Circuit Breaker 4P, C curveSpecial Price EGP 1,886 Regular Price EGP 2,902
Schneider Electric Acti9 IIL Single Indicator Light, Blue, 110, 230 VACSpecial Price EGP 443 Regular Price EGP 692
This Acti9 iK60N product is a low voltage miniature circuit breaker (MCB). It is a 4P circuit breaker with 4 protected poles and 40A In rated current and C tripping curve. The rated short circuit breaking capacity goes up to 6000A at 400VAC conforming to EN/IEC 60898-1 standard and at conforming to standard. This product is compliant with EN/IEC 60898-1 standard. This miniature circuit breaker protects circuit against short circuit and overload current. It has a double clip for dismounting with comb busbar in place. It has an electrical endurance going up to 10000 cycles and a mechanical endurance going up to 20000 cycles. The Ue operational voltage is 400VAC. The Ui rated insulation voltage is 440VAC. The Uimp rated impulse withstand voltage is 4kV. The operating frequency is 50Hz or 60Hz. It can be mounted on DIN rail for modular installation. Its width is 8 pitches of 9mm. The product colour is white (RAL9003). The dimensions are (W) 72mm x (H) 85mm x (D) 78.5mm. The weight is 400g. It has an IP20 degree of protection. It becomes IP40 once in modular enclosure according to IEC/EN 60529 standard. The operating temperature is -25°C to 60°C. The storage temperature is -40°C to 85°C.
Specifications:
| Main | |
| Device application | Distribution |
| Range | Acti9 |
| Product name | Acti9 iK60 |
| Product or component type | Miniature circuit-breaker |
| Device short name | iK60N |
| Poles description | 4P |
| Number of protected poles | 4 |
| [In] rated current | 40 A at 30 °C |
| Network type | AC |
| Trip unit technology | Thermal-magnetic |
| Curve code | C |
| Breaking capacity | 6000 A Icn at 400 V AC 50/60 Hz conforming to EN/IEC 60898-1 |
| Suitability for isolation | Yes conforming to EN/IEC 60898-1 |
| Standards | EN/IEC 60898-1 |
| Product certifications | SNI |
| Complementary | |
| Network frequency | 50/60 Hz |
| Magnetic tripping limit | 5...10 x In |
| [Ics] rated service breaking capacity | 6000 A 100 % conforming to EN/IEC 60898-1 - 400 V AC 50/60 Hz |
| Limitation class | 3 conforming to EN/IEC 60898-1 |
| [Ui] rated insulation voltage | 440 V AC 50/60 Hz conforming to EN/IEC 60898-1 |
| [Uimp] rated impulse withstand voltage | 4 kV conforming to EN/IEC 60898-1 |
| Contact position indicator | No |
| Control type | Toggle |
| Local signalling | ON/OFF indication |
| Mounting mode | Clip-on |
| Mounting support | DIN rail |
| 9 mm pitches | 8 |
| Height | 85 mm |
| Width | 72 mm |
| Depth | 78.5 mm |
| Net weight | 400 g |
| Colour | White |
| Mechanical durability | 20000 cycles |
| Electrical durability | 10000 cycles |
| Locking options description | Padlocking device |
| Connections - terminals | Tunnel type terminal (top or bottom) 1…35 mm² rigid |
| Tunnel type terminal (top or bottom) 1…25 mm² flexible | |
| Wire stripping length | 14 mm for top or bottom connection |
| Tightening torque | 3.5 N.m top or bottom |
| Earth-leakage protection | Without |
| Environment | |
| IP degree of protection | IP20 conforming to IEC 60529 |
| Pollution degree | 2 conforming to EN/IEC 60898-1 |
| Overvoltage category | II |
| Ambient air temperature for operation | -25…60 °C |
| Ambient air temperature for storage | -40…85 °C |
| Weight | 0.500000 |
|---|---|
| Brand | Schneider Electric |
| Model | A9K24440 |
| Color | White |
| Device Application | Distribution |
| Depth [cm] | 7.85 |
| Width [cm] | 7.2 |
| Height [cm] | 8.5 |
| Range | Acti9 |
| Type | Miniature circuit-breaker |
| Poles | 4P |
| Breaker Capacity | 6K |
| [In] Rated Current | 40 A at 30 °C |
| Voltage ~ Frequency | 50-60 Hz |
| IP Degree of Protection | IP20 |
